THIS IS THE FORD-23 PAGE.



FORD 351 MODIFIED AND FORD 400 MODIFIED TURNKEY ENGINES for FORD BRONCOS and 4X4 TRUCKS SUCH AS:

Ford F100

Ford F150

Ford F250

Early Fords: F1 F100 F150

FORD BRONCOS

FORD 351 — MODIFIED TRUCK ENGINE 1015 SERIES

FORD 400 — MODIFIED TRUCK ENGINE 1015 SERIES

This 1015 Series of 4 X 4, 351ci Modified and 400 ci Modified truck engines also includes 2-wheel-drive trucks and Broncos.



Basic Pricing:
Only 60% deposit required!

1015 SERIES 4 X 4
FORD 351 MODIFIED
: 275 HP = $4995
300 ft lb torque

1015 SERIES 4 X 4
FORD 351 MODIFIED
: 300 HP = $5395
340 ft lb torque
(Cam has lots of vacuum for power brakes! CALL for your choice of cams.)

1015 SERIES 4 X 4
FORD 351 MODIFIED
: 325 HP = $5795
355 ft lb torque

(Torque ranges will vary depending upon cam and application.)



1015 SERIES 4 X 4
FORD 400 MODIFIED
: 280 HP = $4995
330 ft lb torque

1015 SERIES 4 X 4
FORD 400 MODIFIED
: 300 HP = $5195
340 ft lb torque
(Cam has lots of vacuum for power brakes! CALL for your choice of cams.)

1015 SERIES 4 X 4
FORD 400 MODIFIED
: 330 HP = $5495
345 ft lb torque

(Torque ranges will vary depending upon cam and application.)

Click HERE to see more Bronco engines!



CHECK OUT OUR 347 STROKER ENGINES:

Ford 347 STROKER ENGINE 375HP: $6795 — 385 ft lbs torque
THIS IS OUR PERFORMANCE ELITE SERIES!

Ford 347 STROKER ENGINE 408HP: $6995 — 395 ft lbs torque
THIS IS OUR PERFORMANCE ELITE SERIES!

Ford 347 STROKER ENGINE 427HP: $7595 402 ft lbs torque
THIS IS OUR PERFORMANCE ELITE SERIES!

Call for availability.

Please note these 347 Stroker engines are Forged Piston Engine Turnkey packages.

LET'S GO ROLLER!®

ASK ABOUT OUR ROLLER CAM PACK® UPGRADES!



NEW UPGRADES AVAILABLE:

  1. HOLLEY SNIPER FUEL INJECTION SYSTEM
  2. SERPENTINE PULLEY SYSTEM

CALL US FOR DETAILS!



Fast Track animation

Click HERE to learn more about FAST TRACK!

Fast Track animation

Ask about our Fast Track Startup:
That means this engine can be
Real Ready to Run OUT OF THE BOX if you choose our Fast Track startup, which includes break in, super tuning, jetting, and more.

WATCH THIS SHORT VIDEO:

The Power2® or Power3® 4x4 engine combination is great for your Bronco or custom 4X4 Ford truck.

All our engines are custom HAND BUILT by professionals in our machine shop!

*Please note that the stock converter will work on most of these 4X4 engines, except for some of the more aggressive engines. Please call us for details.*



SPECIAL FEATURES:

  1. Howards or Comp Cam Kit (great old school sound!) (Ask about upgrading to a Roller Cam!)
  2. SEAL POWER/Speed Pro heavy duty pistons (piston application can vary depending upon horsepower).
  3. Compression pistons is 8.1 to 1. Higher HPs are 9.5 to 1 for pump gas.
  4. Ford cast iron heads with hardened exhaust seats.
  5. Also available as an upgrade are our recommended Aluminum Heads.
  6. STEEL FORGED RODS 302 Ford Bronco rods (higher horsepower engines also include ARP bolt kit).
  7. NODULAR CRANK Pro Turn micro polished.
  8. NODULAR CRANK Pro Turn Micro Polished.
  9. Your choice of Edelbrock 600, 650 or 750 CFM electric choke or Holley 600 to 750 CFM electric choke. (some engines may require higher CFM carb).
  10. Choice of 5 distributors:
      Pertronix Stage 1 is included in price;
      Pertronix Billet Stage 2 is extra;
      Pro Street HEI distributor is included;
      MSD 2 pack is extra;
      MSD 6AL 3 pack is extra.
  11. Plugs, Plug wires. Call for colors!
  12. PER® Pro 7" High Performance   Harmonic Balancer.
  13. Chrome valve covers included. Aluminum Bronco valve covers are extra.
  14. New chrome air cleaner included. Custom air cleaners extra.
  15. Water Pump is standard, high volume is extra.  (You must keep your own pulleys for water pump and balancer.)
  16. Bronco oil pans are available for an extra charge for your 4x4 or Bronco engine. (Custom oil pans are available for an extra charge.)
  17. New Aluminum Timing cover.
  18. This engine will run on 89 or 91 Premium unleaded fuel.
  19. New PER® HP harmonic balancer.
  20. Fuel pump not included.
  21. Starter not included.
  22. Call for info on flex plate or fly wheel.
  23. Call for info on standard transmissions (4, 5, or 6 speed, etc.)
  24. This engine is a seasoned block, hand picked for each engine application.
  25. Built based on one of our Dyno tested and road proven packages.
  26. Call for engine colors. (Standard enamel colors are no charge.)
  27. Don't forget to call us for pricing on Fast Track Start up and Break-in!

ENGINE PARTS include:

  1. Power 2® or 3® Comp or Howards cam kit.
  2. Power 2® or 3® hydraulic lifters, Seal Power, Comp or Howards.
  3. Power 2® or 3® Comp or Howards Cam or Trick Flow spring set, heavy duty.
  4. Aluminum intake manifold, or Edelbrock for a little extra.
  5. Heavy Duty Steel Stem intake valves.
  6. Heavy Duty Steel Stem exhaust valves.
  7. Premium positive valve seals, Blue Viton.
  8. Controlled internal oil system (a PER® exclusive)!
  9. Melling Heavy duty stock or high volume oil pump.
  10. Melling Heavy duty steel collar oil shaft.
  11. Melling oil pickup screen.
  12. High quality American Speed Pro or Seal Power Heavy Duty pistons.
  13. P.E.R.® Speed Pro plasma molly rings.
  14. Brass freeze plug kit and oil gallery kit.
  15. High quality rear main seal, double lip polyacrylate.
  16. Fel Pro PermaTorque heavy duty gaskets and gasket set.
  17. King or Clevite main bearings, Real Tri metal, high quality.
  18. King or Clevite rod bearings, Real Tri metal, high quality.
  19. New rod nuts installed.
  20. Cam bearings, high quality 360 Set.


MACHINE LABOR
includes:

  1. P.E.R. 4-angle® valve job.
  2. Mill-matching surfaced iron heads.
    (You can ask for an upgrade to new aluminum heads!)
  3. Heavy duty thick wall valve guides.
  4. Valve guides custom cut for posi-seals.
  5. Jet vat block and magnifluxing.
  6. Blocks are furnace burned and shot abraided, for super clean outside and inside of water jackets.
  7. Remove and replace all freeze plugs.
  8. Remove and replace gallery plugs.
  9. Remove and replace cam bearings.
  10. Custom centerline boring of block, if needed, at an extra cost.
    True 90 degree V8 centerline boring.
  11. Power hone to fit pistons and rings.
  12. Custom crank micro polish, radius oil holes.
  13. Rods pressed off, then heat fitted.
  14. Rods checked for alignment.
  15. Street balancing and blueprinting.

ALSO CALL ABOUT OUR NEW KEITH BLACK PISTON ENGINES!

SOME ASSEMBLY IS NEEDED.

YOU NEED to call us for a complete quote - There are too many variables on each application.

All our engines are custom HAND BUILT by professionals in our machine shop!

For any changes needed, just call and we will build a custom engine package for you with the horsepower you want. You can also change the color, choosing from over 25 different colors.

Warranty, Deposit and Shipping Info:

This engine has a one year written warranty. Buyer pays actual shipping costs if unable to pick up engine from our shop in Phoenix AZ. Some state freight restrictions apply. DEPOSIT REQUIREMENT IS 60% DOWN, PAYMENT IN FULL WHEN ENGINE IS DONE. (GET A DISCOUNT WITH A DIRECT DEPOSIT!) We accept Visa, Mastercard, Discover, American Express, money orders, cashier's checks, and direct deposit. Business or personal checks must clear prior to shipping. Arizona residents must add 8.6% sales tax.
Please call for core requirements.
We accept Visa    We accept MasterCard    Discover credit card is accepted at Phoenix Engine  amex

Call to order this engine:
602-866-8044
Monday through Thursday: 8:30am - 5:00pm
Friday 08:30am - 4:00pm
Saturday: BY APPOINTMENT ONLY
Sunday: Closed
Times listed are Arizona (Mountain Standard time year round.)

DID YOU KNOW?
At Phoenix Engine, every Power Engine® is CUSTOM rebuilt in our machine shop by P.E.R.® professionals, from start to finish. The Power Engine® Performance Combination was developed from our over 50+ years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, HOT RODS, CUSTOM MODS, JEEPS, and RESTORATIONS. Established in 1973, PhoenixEngine.com has built over 250,000 quality engines to date.

Please be sure to read our full Disclaimer: CLICK HERE.





Latest: 08/07/2025
6/9/25
7/31/25 pc
8/4/25txt
8/6/25 txt,pics
8/7/25 rem/repl vid, txt

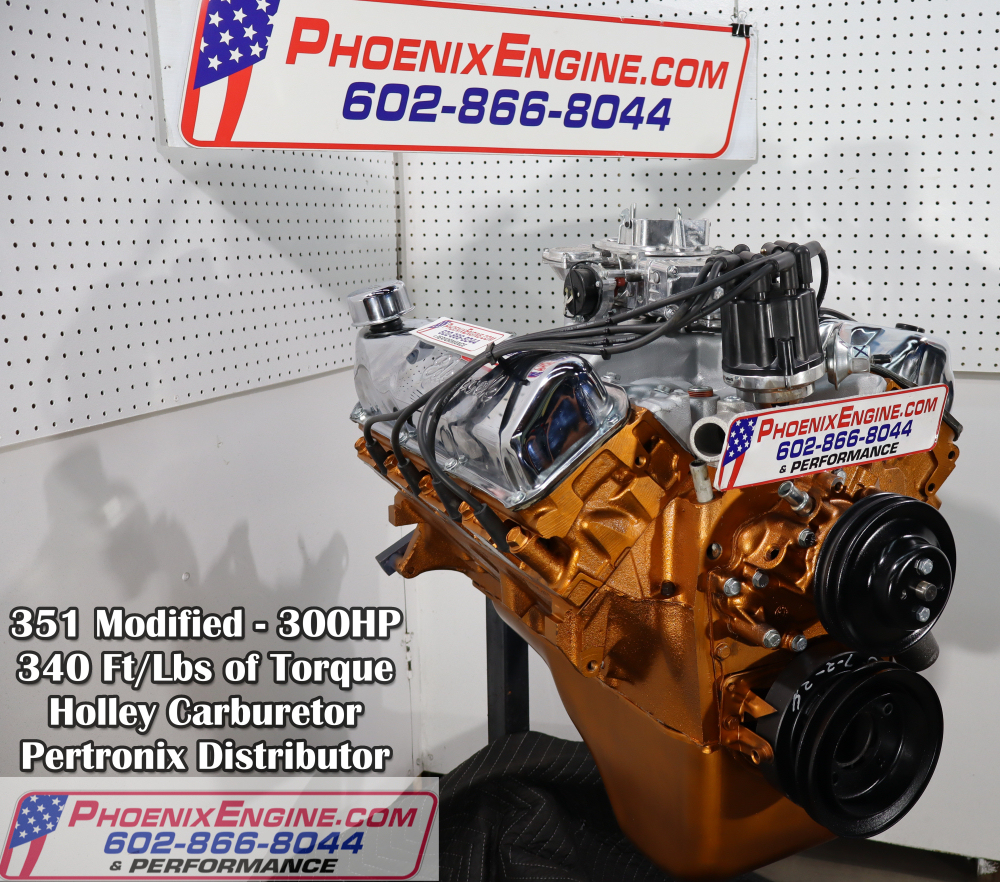

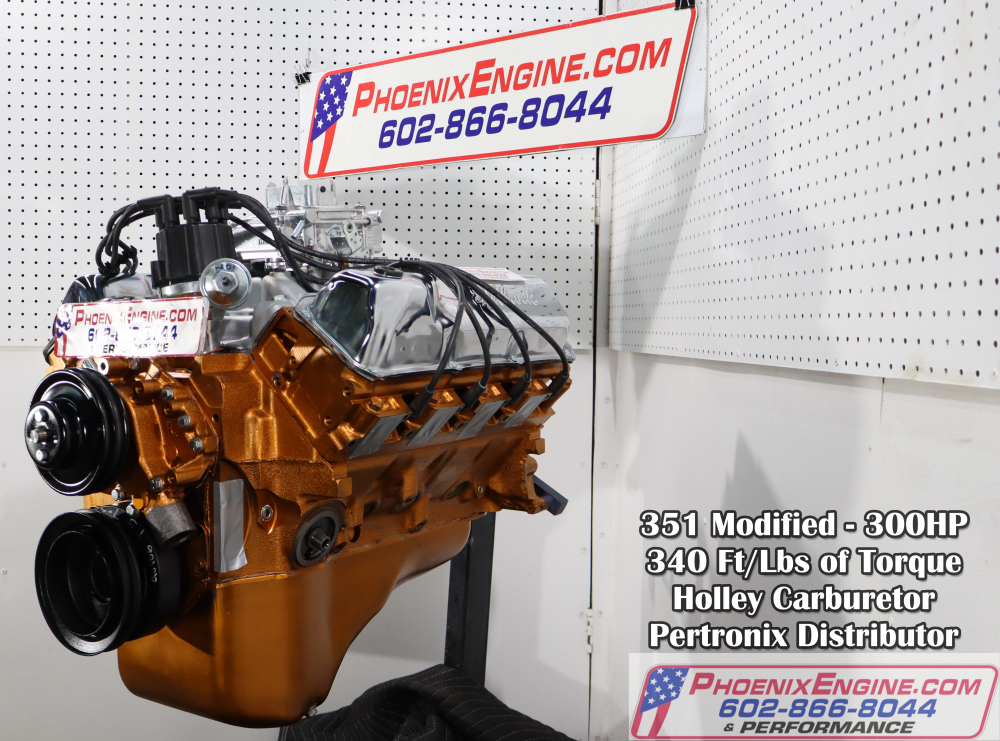

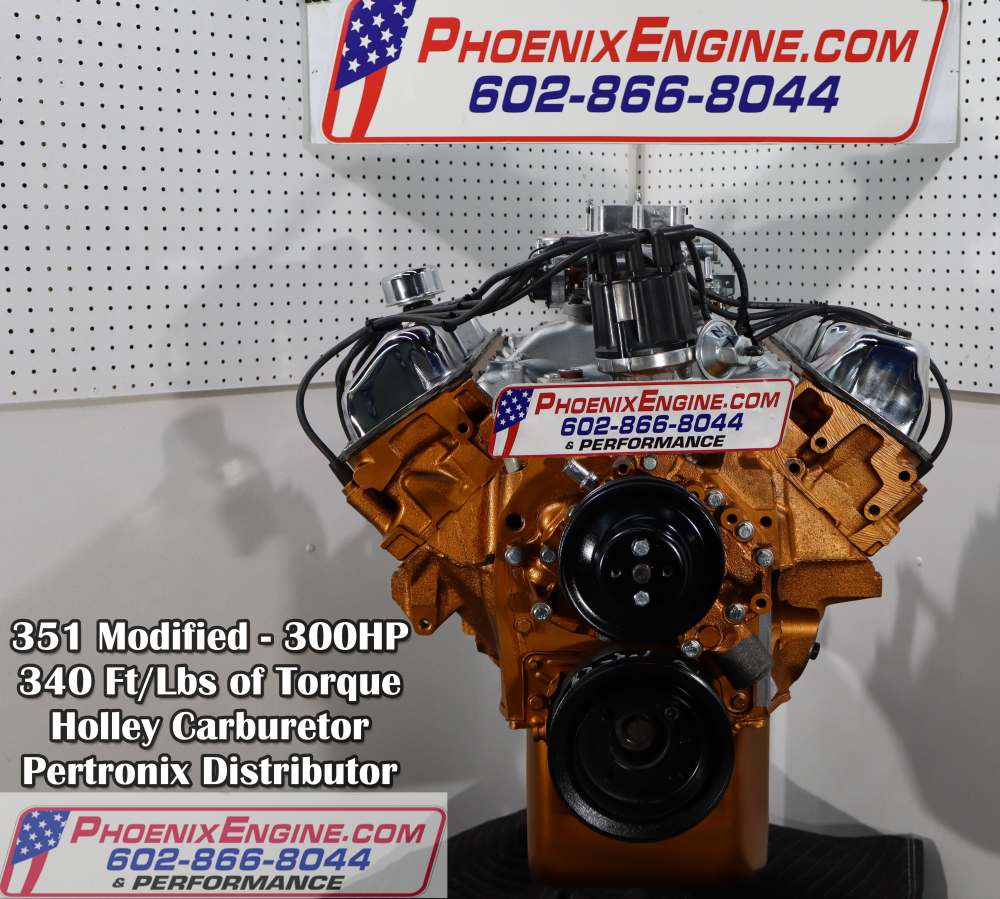

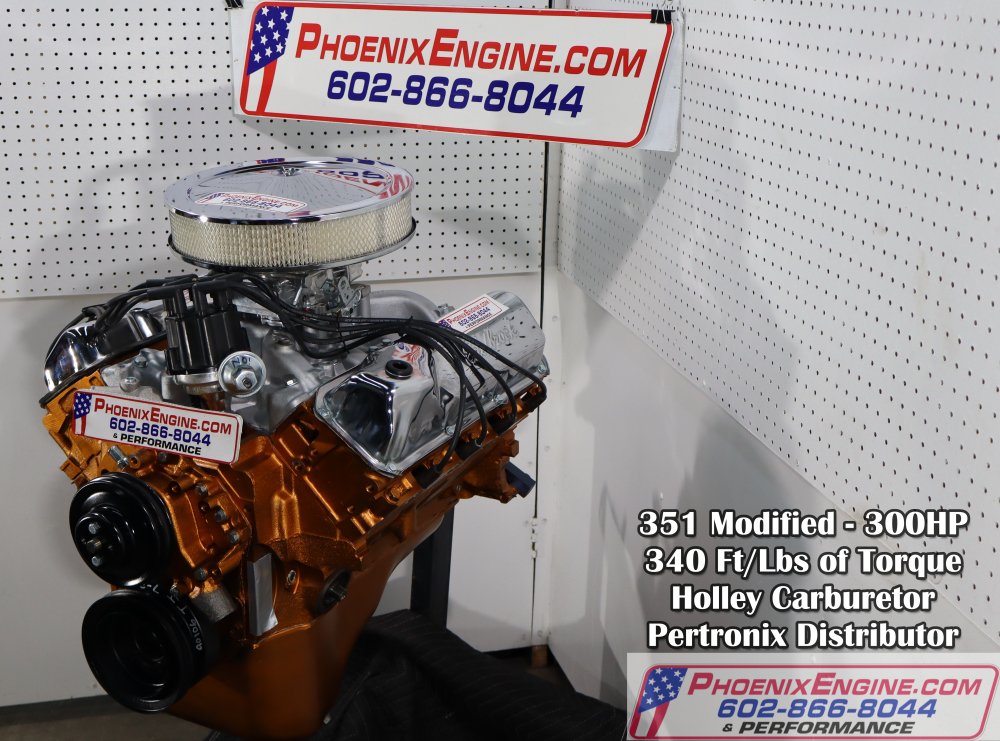

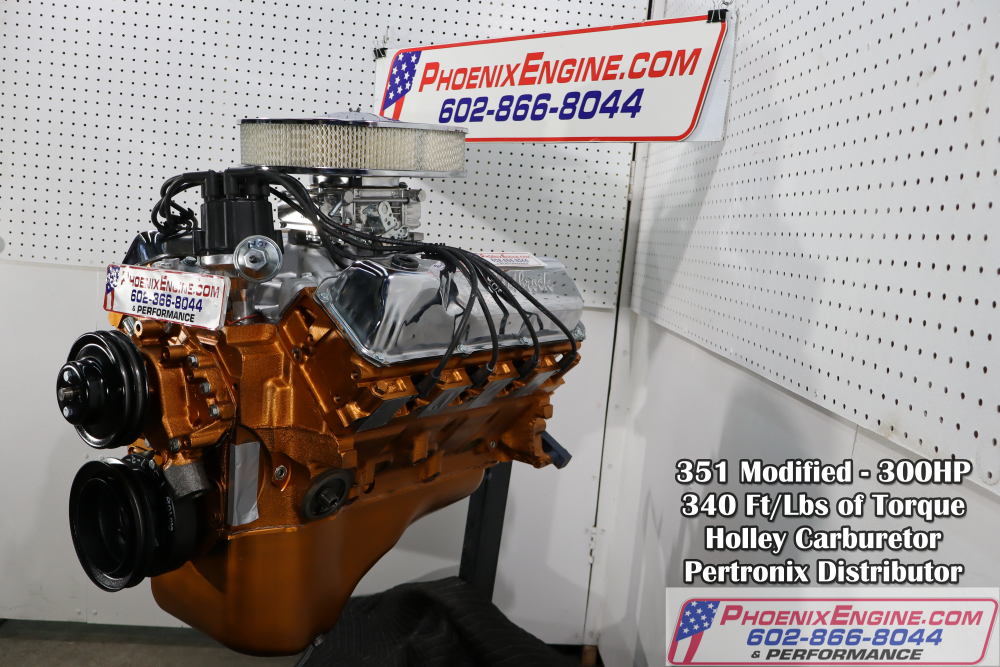

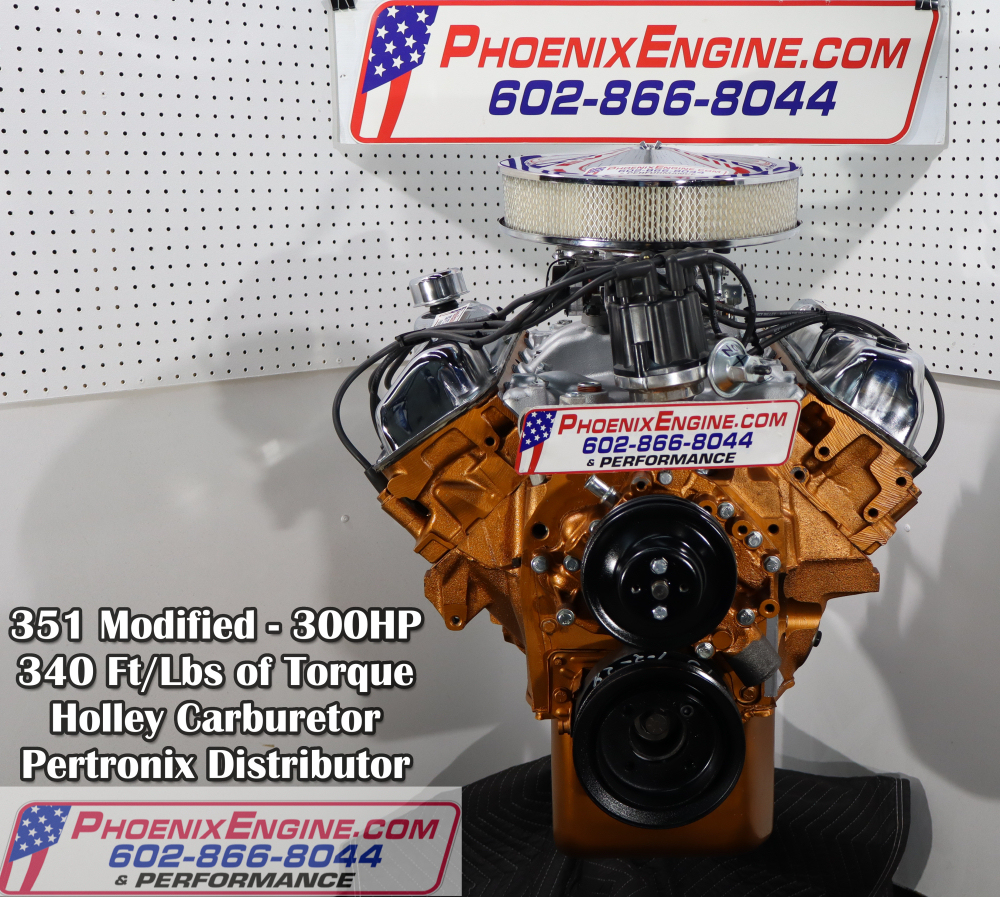

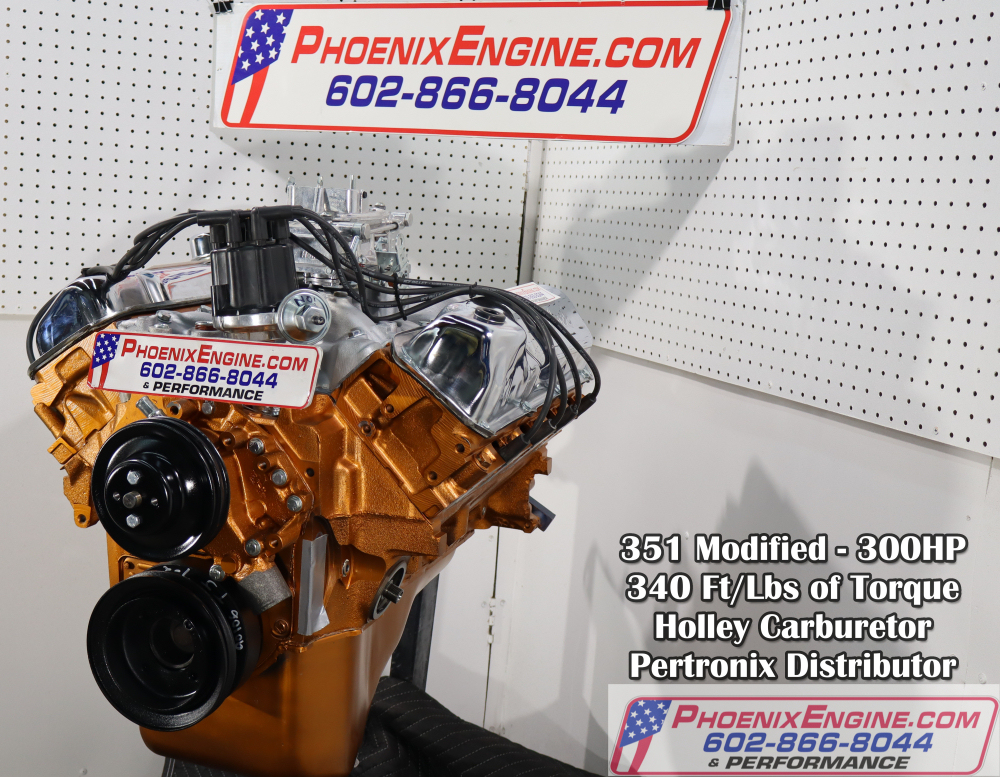

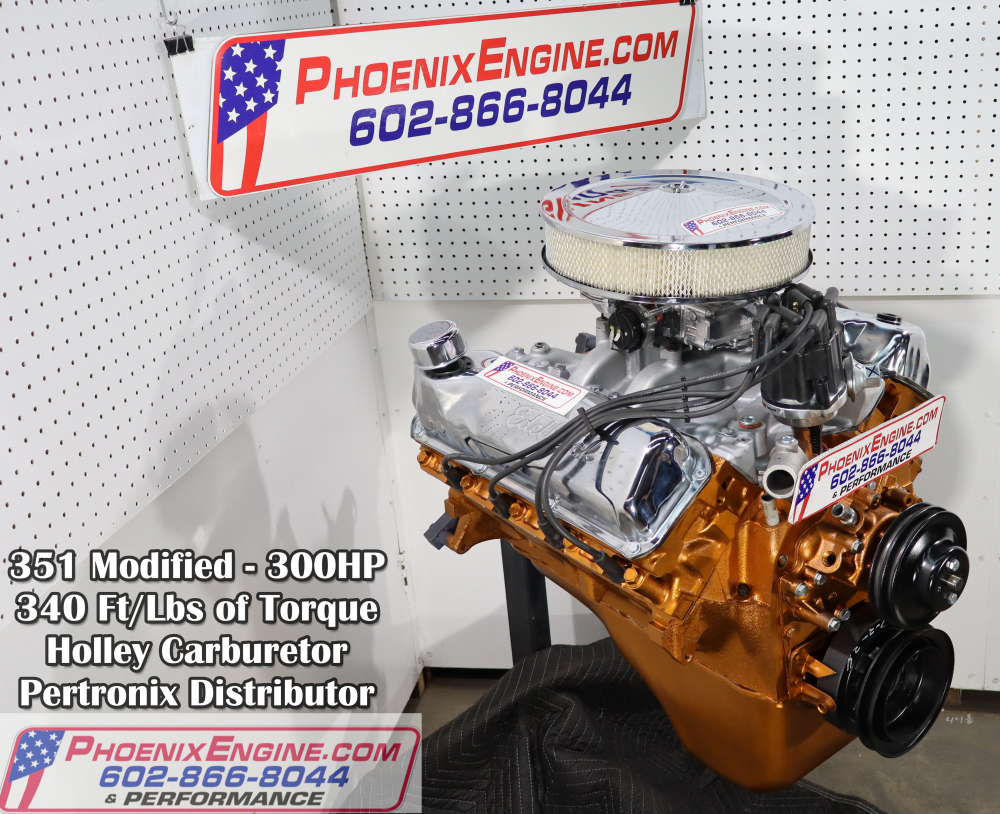

Ford 351 Modified

Ford 351 Modified

Ford 351 Modified

Ford 351 Modified

Ford 351 Modified

Ford 351 Modified

Ford 351 Modified

Ford 351 Modified

* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

Please note photos may vary from actual product as all our engines are custom built.
