FORD 302 — 340+HP
HIGH PERFORMANCE MUSTANG
TURNKEY PACKAGE CRATE ENGINE

This is one of the BEST MILD-to-HOT STREET engines around! Iron Head Motor
Excellent for the Mustang lovers !

Pricing:

Ford 302 — 340 HP: 345 ft lbs torque $4495
(cam has vacuum for power brakes)

Ford 302 — 341 HP: 347 ft lbs torque $4495
(cam has less vacuum, still okay for power breaks, and it has an old school sound)

GT 40 Iron heads also available for additional $595/pair.
(Call for sale pricing and HP!)

Ford 302 — Aluminum head click here for Ford-14






Ford 351W — 347 HP: 368-370 ft lbs torque $4595
(cam has vacuum for power brakes)

Ford 351W — 352 HP: 369-372 ft lbs torque $4595
(cam has less vacuum, great old school sound)

Ford 351W — 350-354 HP: 373-376 ft lbs torque $4695
(cam has little less vacuum but is okay for power brakes and has the best Old School sound. Stall speed converter required.)

Ford 351W — 360-365 HP: 377-382 ft lbs torque $4895
(This single pattern cam has very little vacuum, stall speed converter required.
One of the best Old School sounds!)

GT 40 Iron heads also available for additional $595/pair.
(Call for sale pricing and HP!)

THIS IS A LIMITED TIME SALE PRICING
The normal price of these engines is $100 more. Buy now to receive the special pricing listed here!

A "Crate Engine" means "Intake to Pan." This engine is in a TURNKEY package!

ALSO ASK ABOUT OUR
1015 SERIES 4 X 4 FORD 302
and
351 WINDSOR 4 X 4 ENGINES!

Available from (ask about upgrades):

Ford 302    — 300 to 315HP: 341-349 ft lbs torque $3995
(Cam has lots of vacuum for power brakes!)

Ford 302    — 326 HP: 356-360 ft lbs torque $4095
(Cam has a LOT of vacuum)

Ford 302    — 330 HP : 367-374 ft lbs torque $4195
(Less vacuum but still 4x4, a little more agressive cam.)

351 WINDSOR 4 X 4 ENGINES:

Ford 351W — 280 HP: 348-351 ft lbs torque $4095
(Best vacuum, great low end mid range and mileage.)

Ford 351W — 325 HP: 375-378 ft lbs torque $4595
(Great vacuum, great low end mid range and mileage.)
This is one of the best for mid towing!

Ford 351W — 345 HP 385-392 ft lbs torque $4695
(This one has great vacuum, great low end mid range and mileage.)
This is one of the best for mid to heavier towing!

Ford 351W — 353 HP 388-395 ft lbs torque $4795
(Good vacuum, great low end mid range.)
This one is the best for mid-heavy towing and more torque!

Ford 351W — 360 HP 398-408 ft lbs torque $5195
(Fair vacuum, good low end mid range and top end.)
This one is best for mid-heavy towing and more torque.
This engine is designed more for the "toy" application. This is a great Bronco toy engine, highly recommended.

Call on oil pan applications and pricing.

(Please call for more 1015 Series 4X4 engines!)

Ask about our Fast Track Startup:
That means this engine can be
Real Ready to Run OUT OF THE BOX if you choose our Fast Track startup, which includes break in, super tuning, jetting, and more.

If you choose a Fast Track Start Up, we have special pricing right now!

Click HERE to learn more
Fast Track animationabout FAST TRACK, andFast Track animation
to view a sample video.

PLEASE CALL FOR PROMOTIONAL PRICING AND SALES!

This Power 2© Engine is great for the everyday driver, in your MUSCLECAR, Street Rod, Custom Truck, 4x4, or JEEP.

This Engine is a Seasoned Heavy Duty Hand Picked Block.

Special features on this crate engine include these new parts and more:
(Be sure to scroll down the page to see a more detailed listing.)

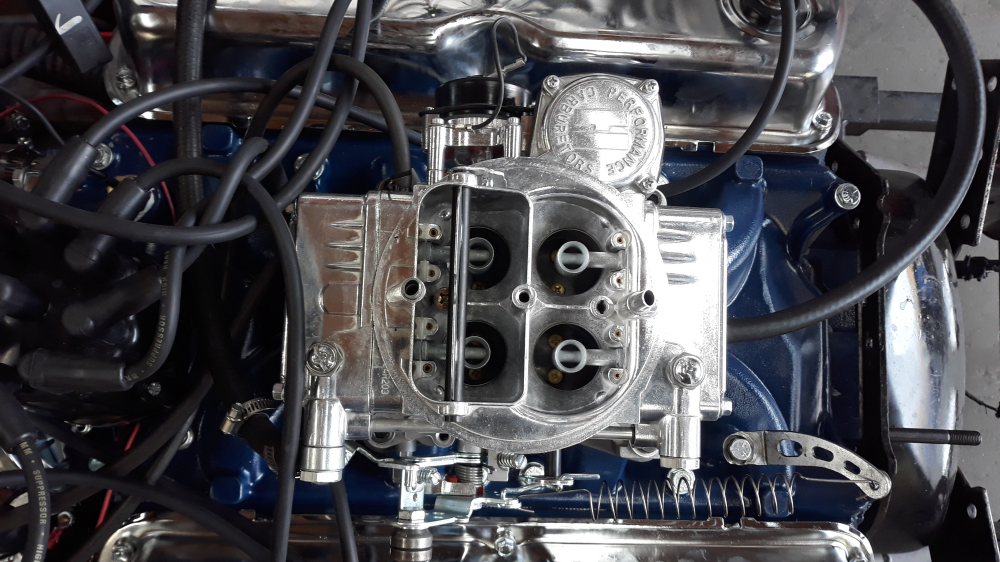

  • Your choice of Edelbrock 600 to 750 CFM electric choke
    or Holly 600 to 750 CFM electric choke
    (some engines may require higher CFM carb)

  • Choice of 3 distributors:
    ProBillet Street HEI distributor is included,
    MSD 2 pack or MSD 6AL 3 pack is extra.

  • Plugs, Plug wires. Call for colors!

  • Chrome valve covers, Chrome pulleys

  • New chrome air cleaner included. Custom air cleaner extra.

  • Water Pump, Fuel pump, 5 qt oil pan.
    (Custom oil pans are available for an extra charge.)

  • New Satin Aluminum intake manifold, plain (no name)
    OR new Edelbrock aluminum intake manifold.
    Polished or RPM dual plane intake manifolds are extra.

  • Seal Power Hypereutectic pistons included.
    KEITH BLACK Hypereutectic pistons are extra.


  • STEEL FORGED RODS with ARP Rods, Bolts.
    (Higher HP engines also include ARP bolt kits.)
  • NODULAR CRANK Pro Turn Micro Polished.

  • Roller tip rockers and Molly push rods are extra.

  • P.E.R. Screw in studs and guide plates are extra.

  • Heavy duty roller timing chain, high performance.

  • New Satin Aluminum intake manifold.
    Polished RPM dual plane intake manifold is extra.

  • New Aluminum Timing cover.

  • New Chrome 5qt oil pan.

  • New Pro Hi perf Harmonic Balancer.

  • Flex Plate for automatic transmission
    (call us for standard transmissions).

  • Built from one of our Dyno tested and road proven packages. Your specific engine can be Dyno tested for an additional charge.

  • Call for info on flex plate or fly wheel.

  • Call for correct flex plate on automatics.

  • Call for info on standard transmissions (4 or 5 speed, etc.)

  • Comes complete, intake to oil pan. Some assembly may be needed.


What comes with your Power 2® engine?

Here's a listing of the parts and machine labor for your Power2® engine from PhoenixEngine.com.

Your Power 2 Engine® ENGINE PARTS include:

  • Power 2® Speed Pro cam kit
    (GREAT OLD SCHOOL SOUND!)
  • Power 2® Speed Pro hydraulic lifters
  • Power 2® spring set, heavy duty (940 series sets)
  • New satin aluminum intake manifold (Polished RPM dual plane intake manifold is extra).
  • Heavy Duty Stem steel intake valves 1.8
  • HD Stem steel exhaust valves 1.5
  • Premium positive valve seals, polyacrylate
  • Heavy Duty roller timing chain
  • Controlled internal oil system (a PER exclusive!)
  • Heavy duty high volume Melling oil pump
  • Heavy duty steel collar oil shaft
  • Heavy duty oil pickup screen
  • High quality American made Keith Black hypereutectic pistons
  • P.E.R.® SP High Performance plasma molly rings
  • Brass freeze plug kit and oil gallery kit
  • High quality rear main seal double lip polyacrylate
  • Fel Pro PermaTorque heavy duty gaskets and gasket set
  • Main bearings, High Performance Clevite 77 Tri metal, high quality
  • Rod bearings, High Performance Clevite 77 Tri metal, high quality
  • New ARP rod bolts and nuts installed
  • Cam bearings, high quality 360 Set

Your Power 2 Engine® MACHINE LABOR includes:

  • P.E.R. 4-angle® valve job
  • Mill-matching surfaced heads
  • Heavy duty thick wall valve guides
  • Valve guides custom cut for posi-seals
  • Jet vat block and magnifluxing
  • Remove and replace all freeze plugs
  • Remove and replace gallery plugs
  • Remove and replace cam bearings
  • Custom centerline boring of block
    True 90 degree V8 centerline boring
  • Power hone to fit pistons and rings
  • Custom crank Micro polish radius oil holes
  • Rods pressed off, then heat fitted
  • Rods checked for alignment, ARP rold bolts installed
  • Street balancing



Engine Will Run on Premium unleaded fuel.

Ask us about our Carburator and Electronic distributor package for this type of Power Engine!

These engines are built from our road proven and Dyno tested packages in our shop. This is a very good street friendly engine with an Old School sound.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!

For any changes needed, just call and we will build a custom engine package for you with the horsepower you want. You can also change the color, choosing from over 25 different colors.

COMES COMPLETELY ASSEMBLED

Call to order this engine:
Toll Free 1-888-766-8044
08:00am - 5:00pm Monday - Friday
09:00am - 1:00pm Saturday
Times listed are Arizona time (-7 GMT).
Arizona does not observe Daylight Savings Time. We are on MST all year round.

This Power Engine® is totally REBUILT in our Machine Shop by professionals from start to finish. The Power Engine® Performance Combination was developed from our over 45 years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, and JEEPS. PhoenixEngine.com has built over 140,000 quality engines to date.

Warranty and Shipping Info:

This engine has a one year written warranty. Buyer pays actual shipping costs if unable to pick up engine from our shop in Phoenix AZ. Some state freight restrictions apply. Payment due in full prior to shipping. We accept Visa, Mastercard, Discover, money orders, cashier's checks, and direct deposit. (GET A DISCOUNT WITH A DIRECT DEPOSIT!) Business or personal checks must clear prior to shipping. Arizona residents must add 8.6% sales tax. Please call for core requirements.
We accept Visa    We accept MasterCard    Discover credit card is accepted at Phoenix Engine
SPECIAL PROMO!! Call NOW for FREE SHIPPING to Southern California! We also offer super shipping rates to all 48 continental states.

Call PhoenixEngine.com today to order!
Toll Free: 1-888-766-8044

Disclaimer: Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine. Pricing is deemed to be correct at time of posting, but is not guaranteed. It is listed as a guideline only. Please call us for complete pricing on the engine built to your specific requirements.
These engines are built from our Dyno tested and road proven packages in our shop.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!

Please be sure to read our full Disclaimer: CLICK HERE.

upl 8/4/13
mtags updtd 9/18/13
10/4/13 txt/hands
10/14/13 txt core & PC
6/3/14 txt (140K engines & 44 yrs)
9/20/14 txt
2/18/15 txt manifold
12/7/15 hours
3/31/16 txt, bullets, moveup
5/31/16 txt, pc
9/12/16 txt, pc
9/13/16 txt dsclmr
9/14/16 txt,dyno,dsclmr
2/9/17 pc
3/6/17 updated
5/25/17 tax

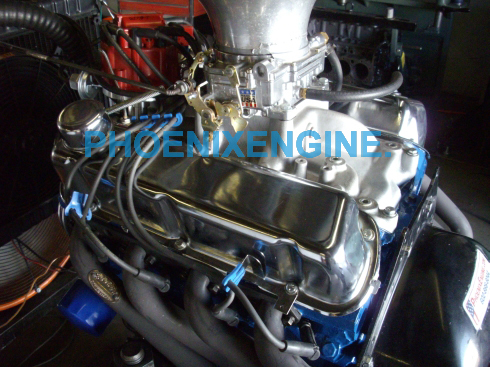

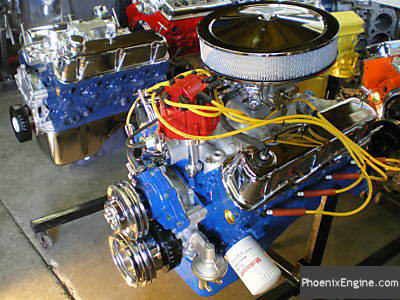

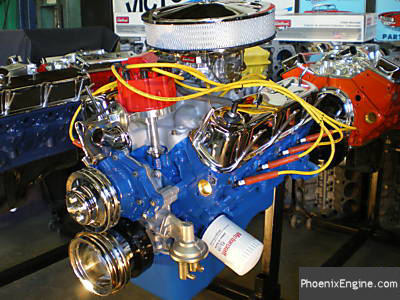

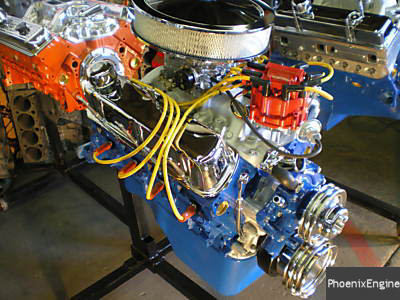

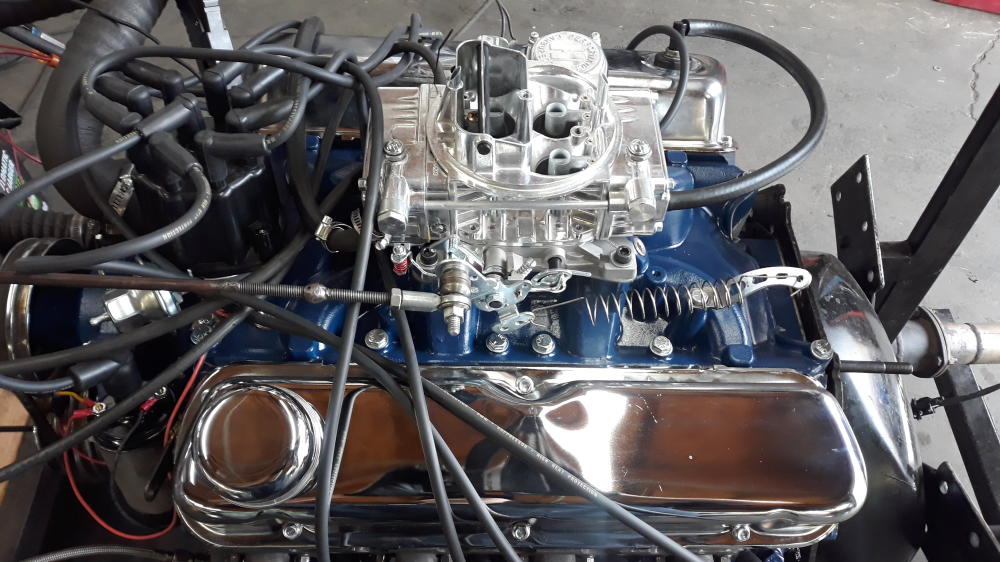

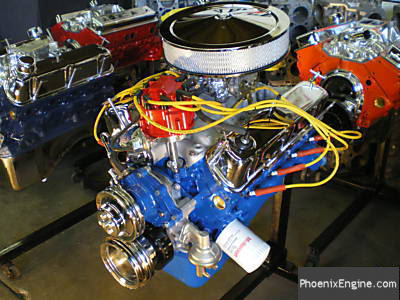

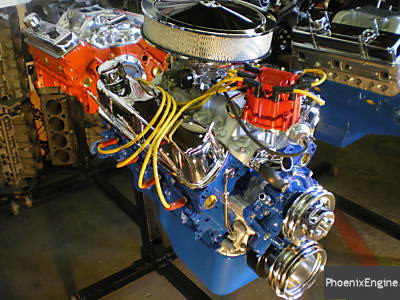

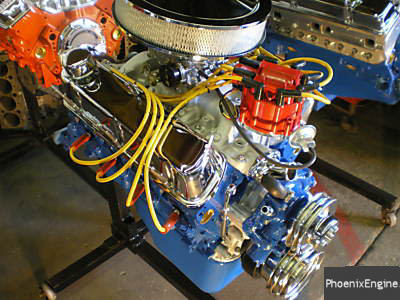

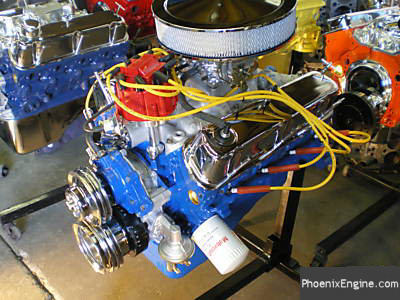

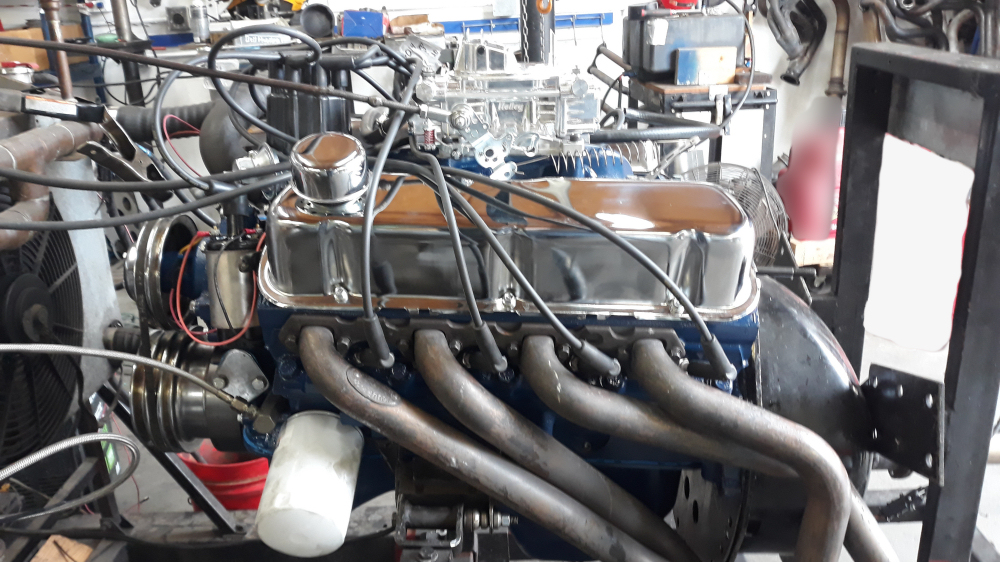

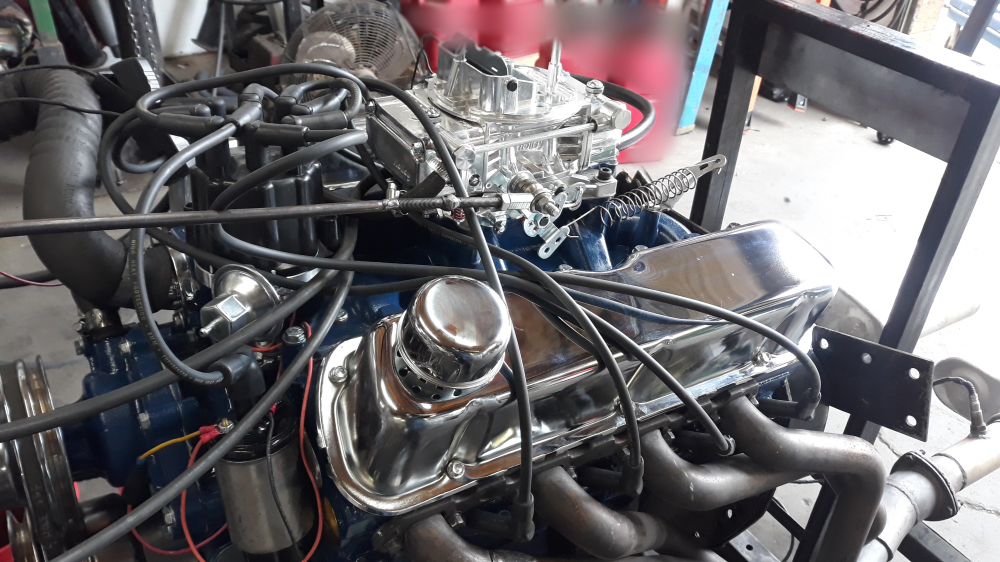

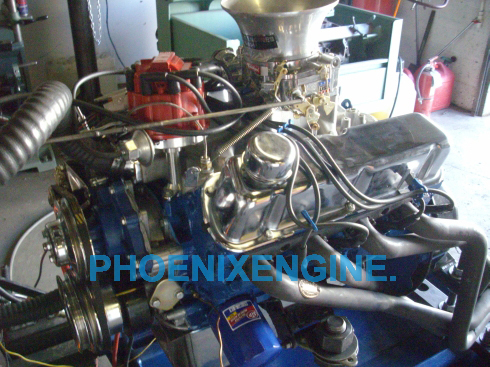

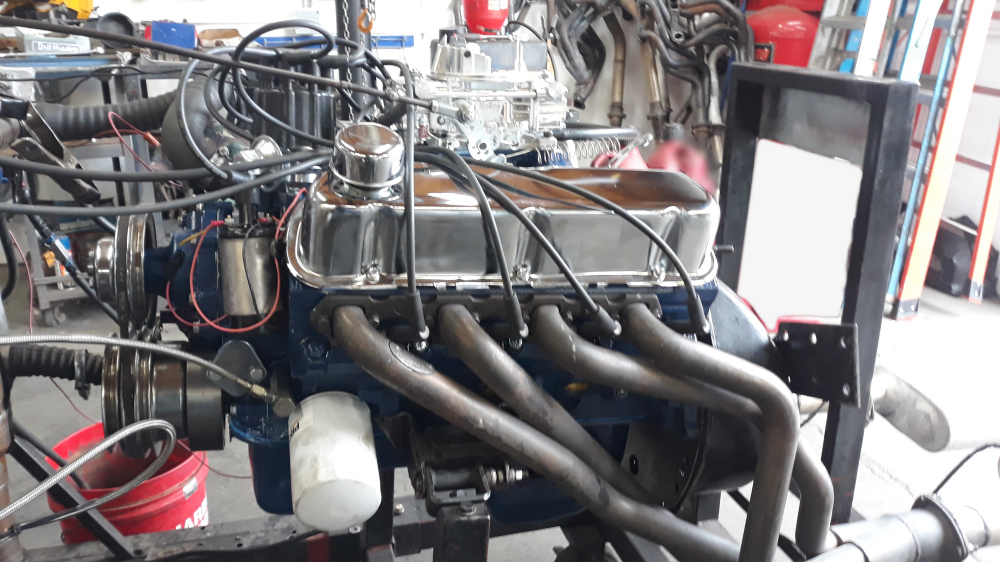

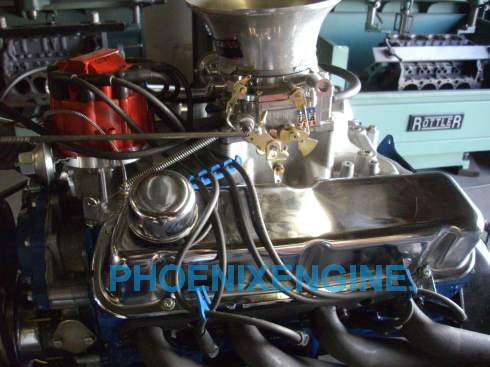

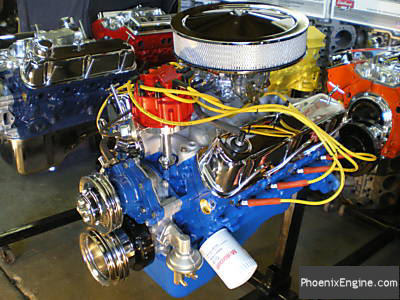

Ford 302 351-352HP Mustang crate engine in a Turnkey package

Ford 302 351-352HP Mustang Turnkey crate engine

Ford 302 351-352HP Mustang Turnkey crate engine

Ford 302 351-352HP Mustang Turnkey crate engine

Ford 302 351-352HP Mustang Turnkey crate engine

Ford 302 351-352HP Mustang Turnkey crate engine

Ford 302 351-352HP Mustang Turnkey crate engine

Ford 302 351-352HP Mustang Turnkey crate engine

Ford 302 351-352HP Mustang Turnkey crate engine

Ford 302 351-352HP Mustang Turnkey crate engine

Ford 302 351-352HP Mustang Turnkey crate engine

Ford 302 351-352HP Mustang Turnkey crate engine

* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

Please note photos may vary from actual product as all our engines are custom built.
