FORD 302 — 300-330hp TURNKEY ENGINEs

fORD 351W — 290-360 HP TURNKEY ENGINEs

MIDNIGHT TURNKEY CRATE ENGINES for
4X4 TRUCKS SUCH AS
FORD BRONCOS,
FORD F-100,
FORD F-150,
FORD F-250,
BRONCOS,
F-100,
F-150

THIS PAGE SHOWS OUR
1015 SERIES 4 X 4 FORD 302
and
351 WINDSOR 4 X 4 ENGINES!

Pricing available from (ask about upgrades):

Ford 302    — 300 to 315HP: 340-350 ft lbs torque $3995
(Cam has lots of vacuum for power brakes! - CALL for your choice of two cams.)

Ford 302    — 326HP: 356-360 ft lbs torque $4195
(Cam has a LOT of vacuum)

Ford 302    — 330HP : 367-374 ft lbs torque $4295
(Less vacuum but still 4x4, a little more aggressive cam. Great sound for your Bronco or 4X4.)

Click HERE to see more Bronco engines!



351 WINDSOR 4 X 4 ENGINES:

Ford 351W — 280HP: 341 ft lbs torque $4295
(Best vacuum, great low end and mid range and mileage.)

Ford 351W 300HP: 361 ft lbs torque $ 4495
(Good vacuum, great low end and mid range with more torque)

Ford 351W — 325HP: 375 ft lbs torque $4695
(Great vacuum, great low end and mid range and mileage.)
This is one of the best for mid towing!

Ford 351W — 345HP 385 ft lbs torque $4895
(This one has good vacuum, great low end and mid range and mileage.)
This is one of the best for mid to heavy towing!

Ford 351W — 353HP 390-395 ft lbs torque $5095
Please note there are several cam choices that we recommend for this towing package, please call.
(Good vacuum, great low end and mid range.)
This one is the best for mid to heavy towing -- more torque!

Ford 351W — 360HP 400-410 ft lbs torque $5495
(Fair vacuum, good low end, mid range and top end.)
This one is best for mid-heavy towing and more torque.
This engine is designed more for the "toy" application.

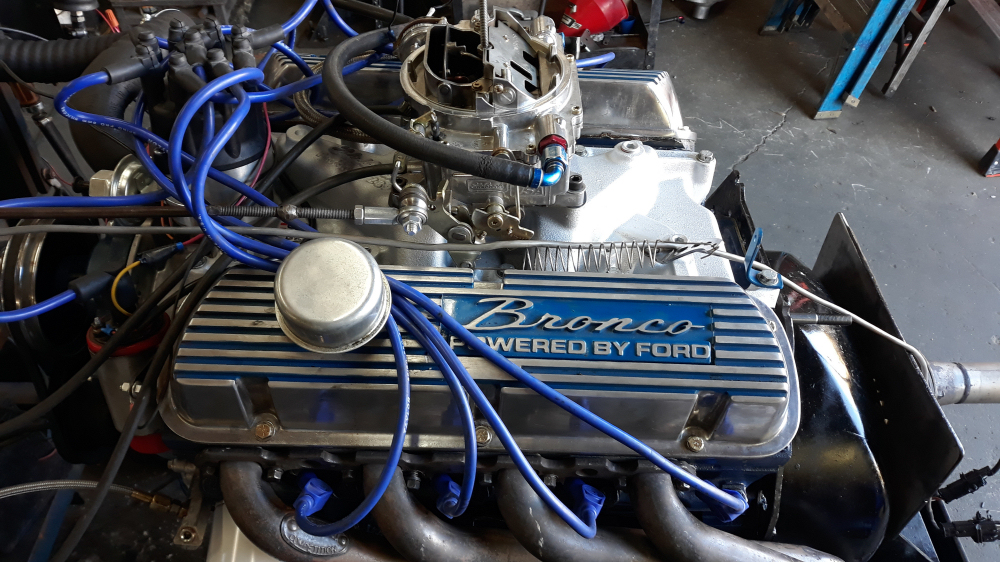

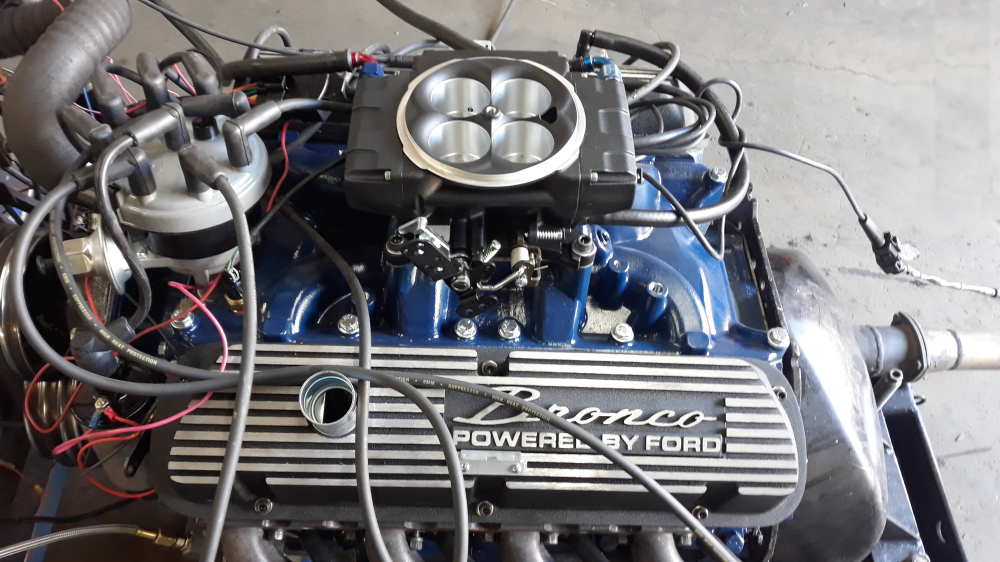

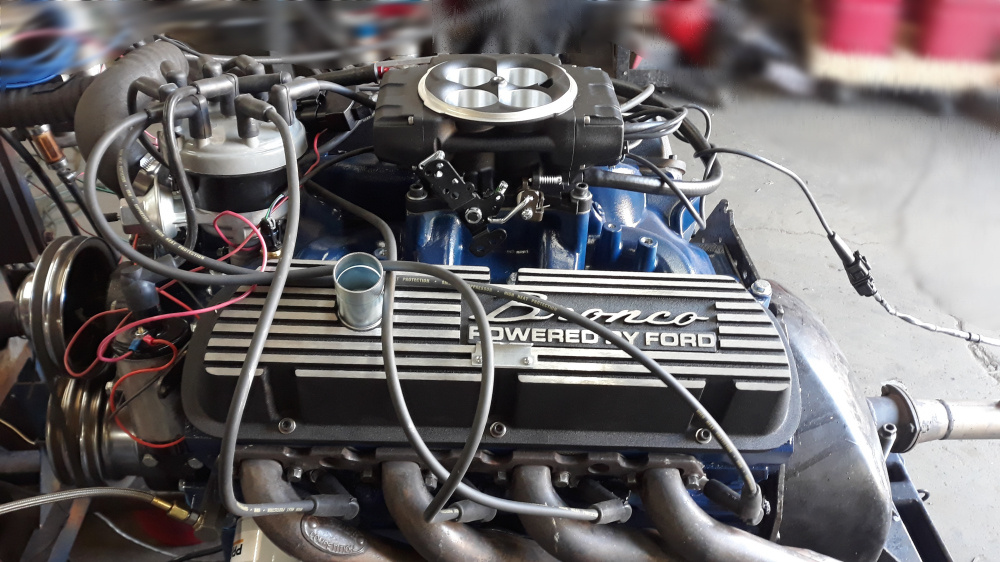

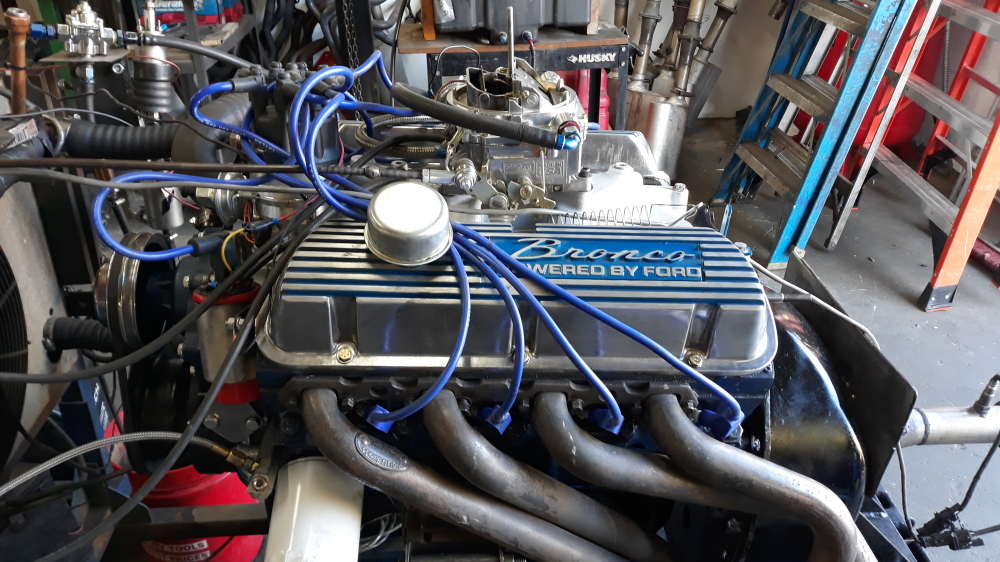

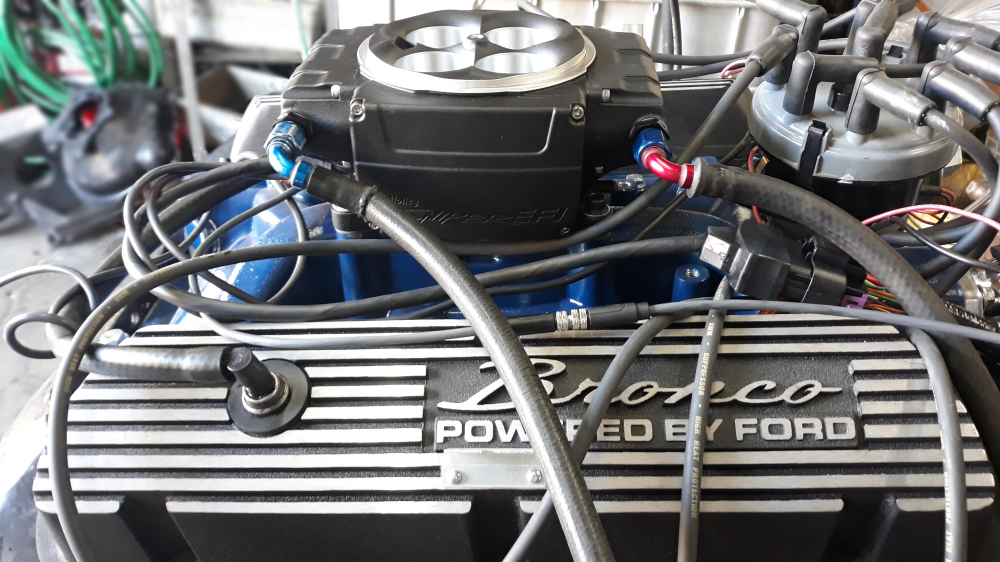

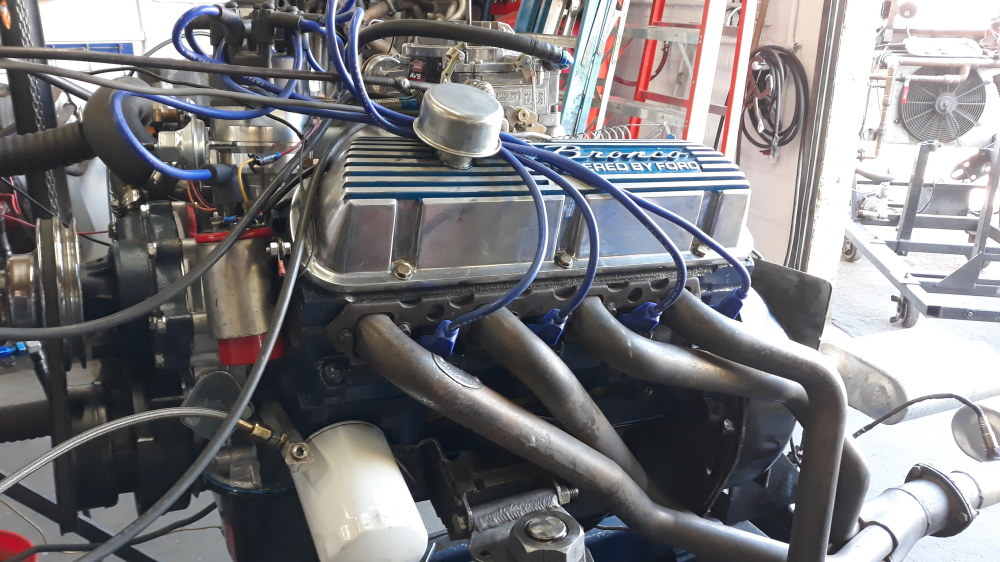

This is a great Bronco toy engine, highly recommended by Bronco Clubs and 4 X 4 Clubs.

(Please call for more 1015 Series 4X4 engines!)



Ask about our Fast Track Startup:
That means this engine can be
Real Ready to Run OUT OF THE BOX if you choose our Fast Track startup, which includes break in, super tuning, jetting, and more.

If you choose a Fast Track Start Up, we have special pricing right now!

Click HERE to learn more
Fast Track animationabout FAST TRACK, andFast Track animation
to view a sample video.



Video of Ford 302-290HP undergoing our Fast Track super tuningVIDEO: Click HERE to see a sample FAST TRACK startup in action! (This is the Ford 302.)



Ford302-290HP engine after Fast Track super tuningVIDEO: Click HERE to see the same engine after Fast Track Super Tuning, with open headers (awesome sound)!





PLEASE CALL FOR PROMOTIONAL PRICING AND SALES!

This Power2 and Power3 four by four engine engine combination is great for your Broncos or custom 4 X 4 Ford truck.

*Please note that the stock converter will work on most of these 4 X 4 engines, except for some of the more aggressive engines. Please call us for details.*

This Power2 and Power3 Engine Combinations are great for the everyday driver, in your Custom Truck, 4x4, JEEP or Ford Bronco.

Special features on these turnkey crate engines include these new parts and more:
(Be sure to scroll all the way down the page to see a more detailed listing.)

  • SEAL POWER or Speed Pro heavy duty pistons
    (piston application can vary depending upon horsepower)

  • STEEL FORGED RODS
    (higher horsepower engines also include ARP bolt kit)

  • NODULAR CRANK Pro Turn Micro Polish

  • Your choice of Edelbrock 600 to 750 CFM electric choke
    or Holly 600 to 750 CFM electric choke
    (some engines may require higher CFM carb)

  • Choice of 3 distributors:
    ProBillet Street HEI distributor is included,
    MSD 2 pack or MSD 6AL 3 pack is extra.

  • Plugs, Plug wires. Call for colors!

  • PER Pro 7" Harmonic Balancer to match the year of your vehicle

  • Chrome valve covers, Chrome pulley.
    (Note: Some 4X4s require factory 4x4 pulleys, which are not included.)

  • New chrome air cleaner included. Custom air cleaners extra.

  • Water Pump, Fuel pump, 5 qt oil pan.
    (Custom oil pans and 4X4 oil pans are available for an extra charge.)

  • New Satin Aluminum intake manifold, plain (no name)
    OR new Edelbrock aluminum intake manifold.
    Polished or RPM dual plane intake manifolds are extra.

  • New Aluminum Timing cover.

  • This engine will run on Pump and Premium unleaded fuel.

  • These engines are built based on one of our Dyno tested and road proven packages.

  • We highly recommend purchasing our Fast Track Super Tuning package to compliment your engine... this way your engine is a worry-free install.

  • Call for info on flex plate or fly wheel.

  • Call for correct flex plate on automatics.

  • Call for info on standard transmission flywheels (4, 5, or 6 speed)

  • Call on Engine Colors. We now have over 25 custom engine enamel colors!

  • Don't forget to call us for pricing on Fast Track Start up and Break-in!


What comes with your Power 2® or POWER 3® engine?

Here's a listing of the parts and machine labor for your Power 2® or Power 3® engine from PhoenixEngine.com.

Your Power 2® or Power 3® ENGINE PARTS include:

  • Power 2® or 3® CompCam or SpeedPro cam kit
  • Power 2® or 3® hydraulic lifters, CompCam or Seal Power
  • Power 2® or 3® CompCam or Trick Flow spring set, heavy duty
  • Satin aluminum intake manifold or Edelbrock
    (Polished or RPM dual plane intake manifold is extra.)
  • Heavy Duty Steel Stem intake valves
  • Heavy Duty Steel Stem exhaust valves
  • Premium positive valve seals, Viton or polyacrylate
  • Melling Heavy Duty roller timing chain
  • Controlled internal oil system (a PER exclusive!)
  • Melling Heavy duty stock or high volume oil pump
  • Melling Heavy duty steel collar oil shaft
  • Melling oil pickup screen
  • High quality American SpeedPro or Seal Power Heavy Duty pistons
  • P.E.R.® SpeedPro plasma molly rings
  • Brass freeze plug kit and oil gallery kit
  • High quality rear main seal, double lip polyacrylate
  • Fel Pro PermaTorque heavy duty gaskets and gasket set
  • King or Clevite main bearings, Real Tri metal, high quality
  • King or Clevite rod bearings, Real Tri metal, high quality
  • New rod nuts installed
  • Cam bearings, high quality 360 Set

Your Power 2® or Power 3® Engine MACHINE LABOR includes:

  • P.E.R. 4-angle® valve job
  • Mill-matching surfaced iron heads
    (You can ask for an upgrade to new aluminum heads!)
  • Heavy duty thick wall valve guides
  • Valve guides custom cut for posi-seals
  • Jet vat block and magnifluxing
  • Blocks are furnace burned and shot abraided, for super clean outside and inside of water jackets
  • Remove and replace all freeze plugs
  • Remove and replace gallery plugs
  • Remove and replace cam bearings
  • Custom centerline boring of block
    True 90 degree V8 centerline boring
  • Power hone to fit pistons and rings
  • Custom crank micro polish, radius oil holes
  • Rods pressed off, then heat fitted
  • Rods checked for alignment
  • Street balancing and blueprinting

For more info on machine work, click HERE

ALSO CALL ABOUT OUR NEW KEITH BLACK PISTON ENGINES!

SOME ASSEMBLY IS NEEDED.

YOU WILL NEED to call us - 1-888-766-8044. There are too many variables on each application.

For any changes needed, just call and we will build a custom engine package for you with the horsepower you want. You can also change the color, choosing from over 25 different colors.

ALL OUR ENGINES ARE CUSTOM HAND BUILT:
289 - 302 - 351c - 351m - 351w - 400m - 390 - 427 - 428 - 429 - 460 and more!

Call to order this engine:
Toll Free 1-888-766-8044
08:00am - 5:00pm Monday - Friday
09:00am - 1:00pm Saturday
Times listed are Arizona time (-7 GMT).
Arizona does not observe Daylight Savings Time. We are on MST all year round.

This Power Engine® is totally REBUILT in our Machine Shop by professionals from start to finish. The Power Engine® Performance Combination was developed from our over 45 years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, and JEEPS. PhoenixEngine.com has built over 145,000 quality engines to date.

Warranty and Shipping Info:

This engine has a one year written warranty. Buyer pays actual shipping costs if unable to pick up engine from our shop in Phoenix AZ. Some state freight restrictions apply. Payment due in full prior to shipping. We accept Visa, Mastercard, Discover, money orders, cashier's checks, and direct deposit. (GET A DISCOUNT WITH A DIRECT DEPOSIT!) Business or personal checks must clear prior to shipping. Arizona residents must add 8.6% sales tax.
Please call for core requirements.
We accept Visa    We accept MasterCard    Discover credit card is accepted at Phoenix Engine
SPECIAL PROMO!! Call NOW for FREE SHIPPING to Southern California! We also offer super shipping rates to all 48 continental states.

Call PhoenixEngine.com today to order!
Toll Free: 1-888-766-8044

Disclaimer: Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine. Pricing is deemed to be correct at time of posting, but is not guaranteed. It is listed as a guideline only. Please call us for complete pricing on the engine built to your specific requirements.
These engines are built from our Dyno tested and road proven packages in our shop.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!

Please be sure to read our full Disclaimer: CLICK HERE.



3/10/18 uploaded
3/16/18 updated











Ford

Ford

Ford

Ford

Ford

Ford

Ford

Ford

Ford

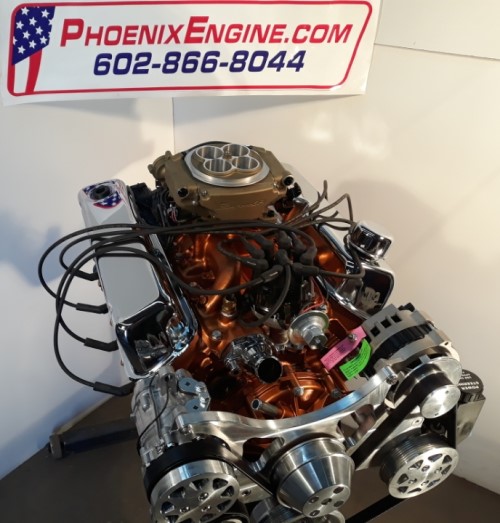

* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

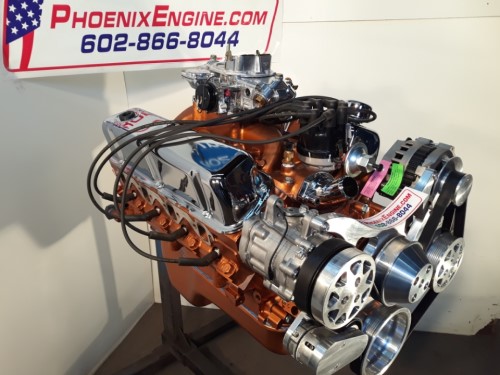

Please note photos may vary from actual product as all our engines are custom built.
