CHEVY 383ci — 350HP to 502HP
COPPER HIGH PERFORMANCE
TURNKEY CRATE ENGINE WITH IRON DART HEADS or SECOND GENERATION VORTEC HEADS
THIS IS A LIMITED TIME SALE PRICING
The normal price of these engines is $100 more. Buy now to receive this special
383ci 350 or 360 HP: from $4195 — 405 to 410
These have dual pattern cam for vacuum. *
383ci 365 to 375 HP: from $4295 — 415 to 430
These have dual and single pattern cam, your choice with
* These engines (350 - 375 HP) come with the 76cc GM heads.
Check in the footnotes below for special particulars for these engines.

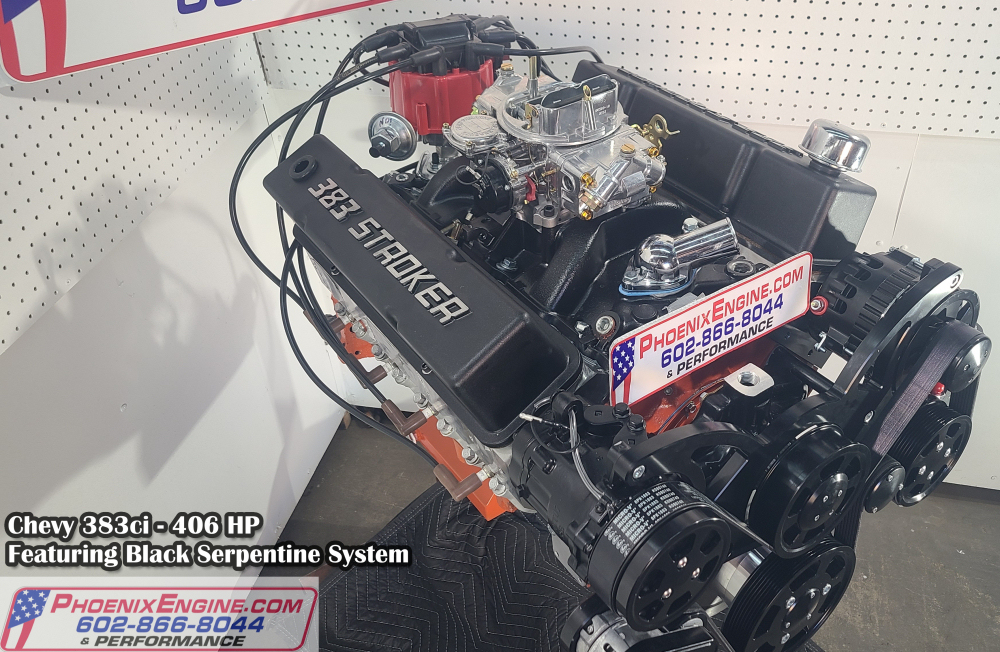

383ci 406 or 409 HP: from $4495 — 448 to 468
The 383ci 406HP engines come with Dart 202 heads. The 383ci 406HP
engine comes with a dual pattern cam. The 383ci 406HP cam has vacuum
for power brakes. Still has great sound.
The 383ci 409HP engine comes with a single pattern
cam. The 383ci 409HP engine has a little less vacuum, with a great
Old School sound.
This engine comes with the 4 barrel aluminum high
rise (polished is extra).

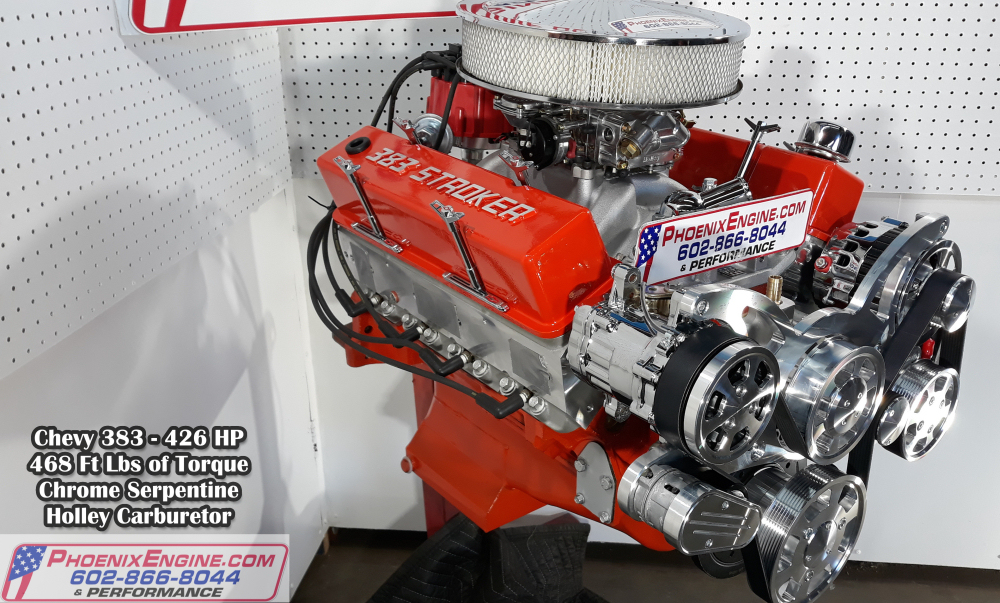

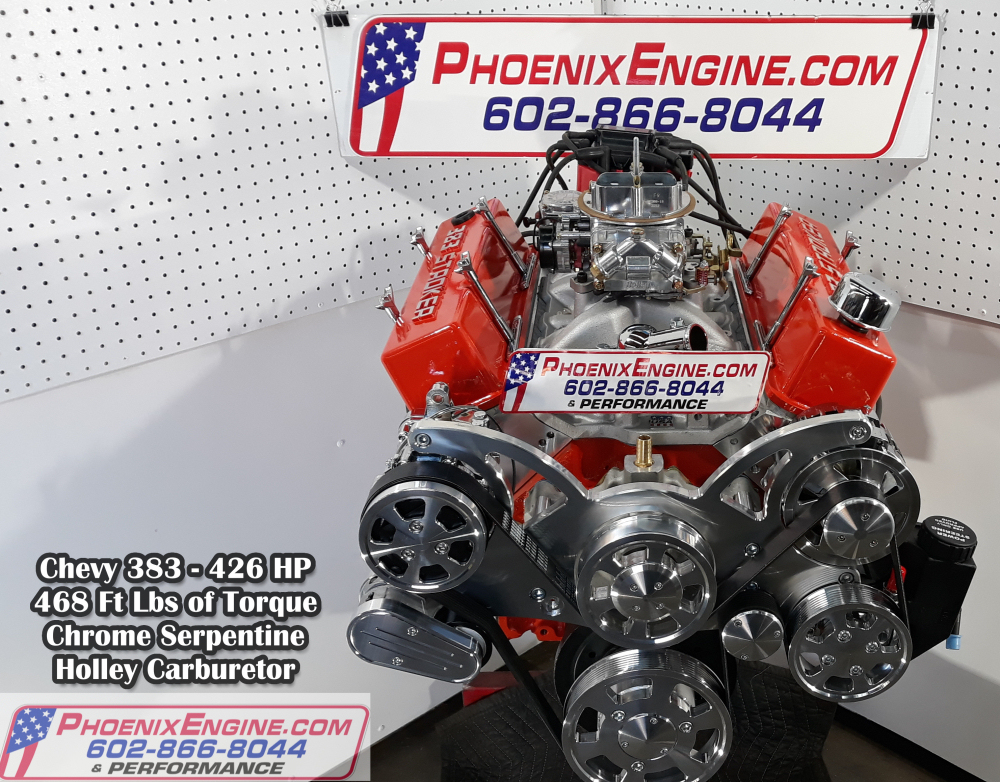

383ci 426 or 383ci 427 HP: from $4995 — 468 to 484 ft/lbs torque
The 383ci 426-427HP engines come with Dart 202 heads. The 426HP
engine comes with a dual pattern cam. The 383ci 426HP engine cam
has vacuum for power brakes. Still has good sound.
The 383ci 427HP engine comes with a single pattern cam. The 383ci 427HP engine has a little
less vacuum, with a great Old School sound.
These engines can come with the 4 barrel high rise, aluminum (included) or
polished intake (for an extra charge), or your choice of an aluminum or polished high
rise air gap. Note that polished is extra.
383ci 454 HP: from $5695 —500
The 383ci 454HP engines come with Dart 202 heads.
The 383ci 454HP engine comes with a dual pattern cam. The 383ci 454HP engine
cam has little less vacuum for power brakes. Still has good
383ci 475 HP: from $6295 — 510 to 530
The 383ci 475HP engines come with Dart 202 heads.
The 383ci 475HP engine comes with a single pattern or dual pattern cam. The 383ci 475HP
engine has a lot less vacuum. Great Old School sound.
383ci 502 HP: from $6795 — 526 to 538 ft/lbs torque.
The 383ci 502 HP engines come with Dart 202 heads.
The 383ci 502 HP engine comes with a single pattern or dual pattern cam. The 383ci 502
HP engine has a lot less vacuum. Great Old School sound.
our Fast Track Startup:
That means this engine can
be Real Ready
to Run OUT OF THE BOX if
you choose our Fast Track startup, which includes
break in, super tuning, jetting, and more.
you choose a Fast Track Start Up, we have
special pricing right now!
HERE to learn more
FAST TRACK, and
to view a sample video.
This is a special UPGRADE DEAL
for a great price that includes new Dart 202
Heads! These new street/race heads have high flow intake
runners with 202 valves, plus high flow caption chamber breathing!!
It's the best street performance yet!
If you choose
ALUMINUM heads for pump gas, please CALL US FOR SPECIAL
SPECIAL FEATURES ON THIS TURNKEY CRATE ENGINE INCLUDE THESE NEW PARTS AND MORE:
items may vary depending upon the size HP engine you
choose. Be sure to scroll down the page to see a more
- New Dart heads with 202 intake valves and 1.6 exhaust valves.
or Second Generation Vortec heads.
- Speed Pro hypereutectic pistons, 9.5 to 11.5 depending
upon your choice of horsepower engine; or ask us about
forged pistons for the higher horsepower engines at an additional charge.
- Cam range of 470 to 520+, hydraulic dual patterned
high performance cam for vacuum, or single pattern cam, Comp cam.
- 2500 or 3000 stall speed convertor required.
These bigger engines are real STREET MONSTERS!
- Holley 750 CFM carburetor, polished.
- Pro Billett HEI distributor with MSD kit.
- MSD 2 pack or MSD 6AL 3 pack is extra.
- Plug wires and spark plugs.
- Chrome air cleaner included, black is extra.
- Water pump, water pump pulleys, and crank shaft pulleys
- Heavy duty roller timing chain, high performance.
- P.E.R. SS screw in studs, guide plates.
- SST roller rockers, SS molly push rods.
- New Eagle or Scat stroker crank, 7000 to 9000 series.
- Steel forged rods GM 550 high performance.
- Street race balanced and blueprinted, bored on center.
- Tall chrome plain valve covers included.
- Chrome timing chain cover included,
aluminum timing chain cover available for an additional
- 7qt oil pan, chrome or steel.
- New Air Gap intake manifold: aluminum is included, or you may choose polished as an optional upgrade.
- Pro 8" harmonic balancer, flex plate included.
- GM Bow Tie slant-edge aluminum valve covers are available
for an additional charge. (Vortec heads require centerbolt valve covers: chrome or black is included in price, custom is an extra charge.).
- Flex pate for automatic transmission included,
call us on standard transmissions (4, 5, or 6 speed),
- Call us on colors, note many colors available.
- Built from one of our Dyno tested and road proven packages. Your specific engine can be individually Dyno tested for an additional charge.
- Call for info on flex plate or fly wheel.
- Call for correct flex plate on automatics.
- Call for info on standard transmissions (4 or 5 speed, etc.)
- Comes complete, intake to oil pan. Some assembly may be needed.

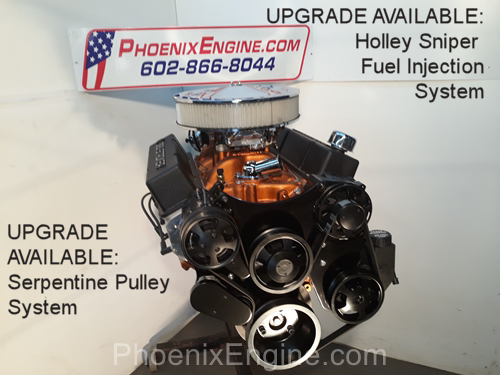

WE NOW OFFER BOTH FITECH AND SERPENTINE SYSTEM UPGRADES FOR YOUR ENGINE. BOTH FITECH AND SERPENTINE SYSTEMS ARE ON SALE NOW - CALL US FOR THE BEST PRICING ON THESE UPGRADES. CHECK OUT THE PHOTOS ON THE RIGHT »»»»
comes with your Power 3® or Power 4® Engine?
Here's a listing of the parts and machine labor for your
Power Engine® from PhoenixEngine.com.
Your Power Engine®
- Power® cam kits from 470-520 Comp Cam
- Power® hydraulic lifters to match cam
- Power® spring set, heavy duty (940 to 1000
series spring sets)
- New Dart heads,
street, high performance
or Second Generation Vortec
- Air Gap manifold - plain aluminum is included.
Polished intake available at an extra charge.
- One piece stainless steel intake valves 202
- One piece stainless steel exhaust valves 1.6
- Premium positive valve seals, polyacrylate,
- Heavy Duty roller timing chain
- Controlled internal oil system (a Phoenix Engine
- Heavy duty, high volume Melling oil pump
- Heavy duty steel collar oil shaft
- Heavy duty oil pickup screen, welded
- High performance Speed Pro hypereutectic
pistons, or ask us about forged pistons as an upgrade at an additional cost.
- P.E.R.® HP Seal Power plasma molly rings
- Brass freeze plug kit, and oil gallery kit
- High quality rear main seal, double lip polyacrylate
- Fel Pro PermaTorque heavy duty gaskets and gasket
- Clevite 77 or King main bearings, Real Tri metal,
- Clevite 77or King rod bearings, Real Tri metal,
- New 383 Eagle or Scat series crank shaft, 7000 to 9000
- 550 high performance rods and high performance
- Cam bearings, high quality 360 Set
Your Power Engine®
- P.E.R. 4-angle® valve
- Blueprint mill-match surface heads
- Heavy duty thick wall valve guides
- Valve guides custom cut for posi-seals
- Jet vat block and magnifluxing
- Remove and replace all freeze plugs
- Remove and replace gallery plugs
- Remove and replace cam bearings
- Custom centerline boring of block
(true 90 degree V8 centerline boring)
- Power hone to fit pistons and rings
- Custom crank micro polish radius oil holes
- Rods pressed off, then heat fitted
- Rods checked for alignment
- Street balancing and blueprinting
THIS IS OUR TURN KEY PACKAGE FOR THIS
HIGH POWER ENGINE.
>>> FOR MACHINE SHOP WORK, CLICK HERE <<<
This one is a real THUMPER, a TORQUE MONSTER,
with 202 valves! The engine has a ROUGH idle, Comp Cam Kit CAM
that puts out 409 HP at 5900+ rpm and 440+ ft lbs of torque.
For any changes
needed, just call and we will build a custom engine
package for you with the horsepower you want. You can
also change the color, choosing from over 25 different
ALL OUR ENGINES ARE CUSTOM HAND
327- 350- 383- 396- 427- 454 AND MORE!
This Power Engine® combination will be great
in your musclecar, street, strip, hot rod, kit car, custom
truck, 4X4, or Jeep!!
This engine is a 4-bolt seasoned heavy
duty Chevy small block. GREAT
OLD SCHOOL SOUND! The engine will run on 91+
is an awesome street High Torque engine!
Call to Order this engine
Toll Free 1-888-766-8044
08:00am - 5:00pm Monday-Friday
09:00am - 1:00pm Saturday
(Arizona does not observe Daylight
Savings Time. We are -7 GMT, or in other words Mountain Standard Time all year
This Power Engine®
is totally REBUILT in our Machine Shop by professionals from
start to finish. The Power Engine®
Performance Combination was developed from our over 45 years
of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS,
4x4s, and JEEPS. PhoenixEngine.com has built over 140,000
quality engines to date.
Warranty and Shipping
This engine has a one
year written warranty. Buyer pays actual shipping costs
if unable to pick up engine from our shop in Phoenix
AZ. Some state freight restrictions apply. Payment due
in full prior to shipping. We accept Visa, Mastercard, Discover,
money orders, cashier's checks and direct deposit. (GET
A DISCOUNT WITH A DIRECT DEPOSIT!) Business
or personal checks must clear prior to shipping. Arizona
residents must add 8.6% sales tax.
Please call for core requirements.
Call PhoenixEngine.com today
Toll Free: 1-888-766-8044
* FOOTNOTES pertaining to 76cc GM heads on the Chevy 383cc 350HP, 360HP, 365HP and 375HP engines:
Please note that the
stud and guide plate kit is extra, and roller tip and roller rockers are an extra charge.
Disclaimer: Please note that some parts are based
on availability. The brand names listed above are guidelines;
the exact brand name may not be available at the time
we build your engine. Pricing is deemed to be correct at time
of posting, but is not guaranteed. It is listed
as a guideline only. Please call us for complete
pricing on the engine built to your specific requirements.

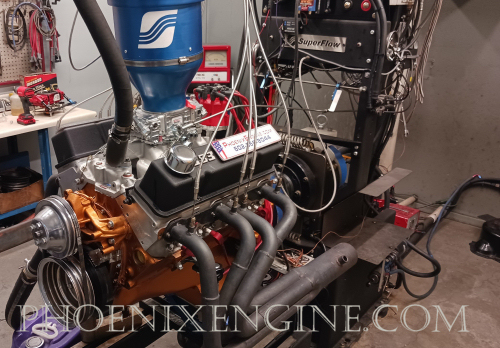

These engines are built from our Dyno
tested and road proven packages in our shop.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!
Please be sure to read our full Disclaimer: CLICK HERE.
Page uploaded, 10/06/17
5/28/18 blk pics
10/5/18 txt, pix
1/23/19 txt cams,lifters,mollyrings
1/24/19 txt intake

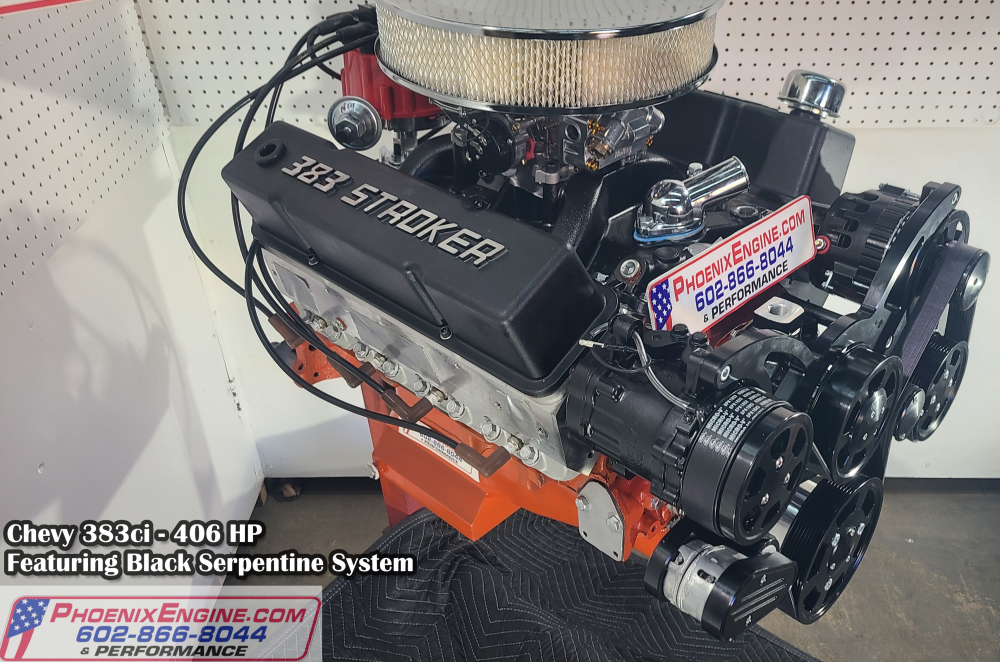

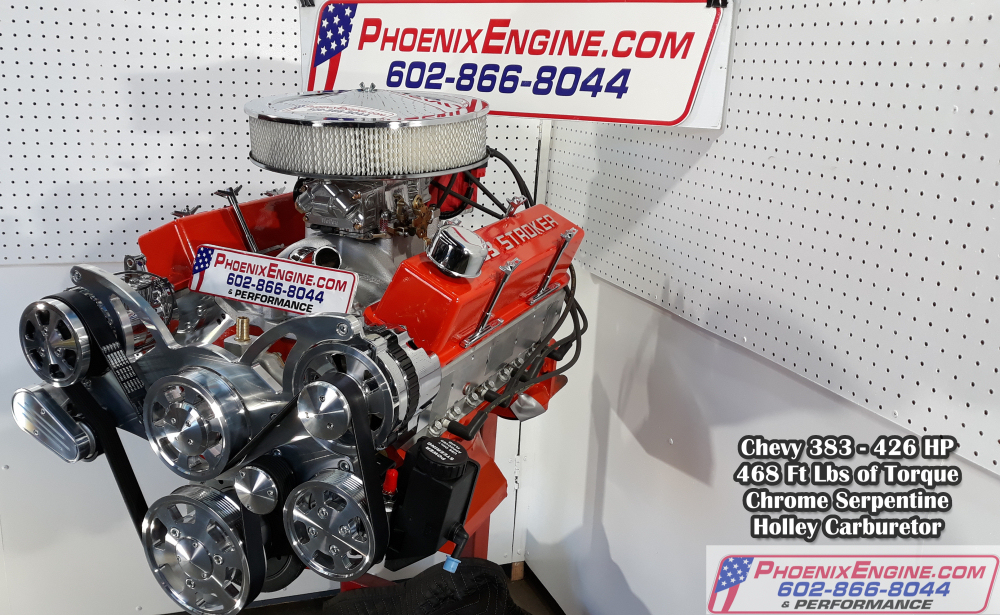

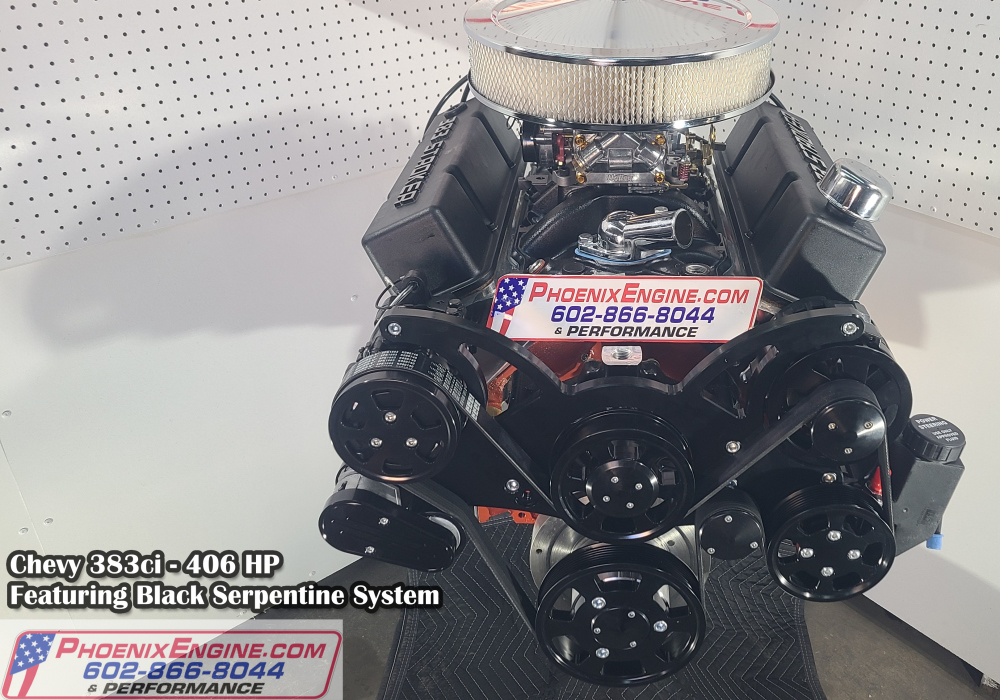

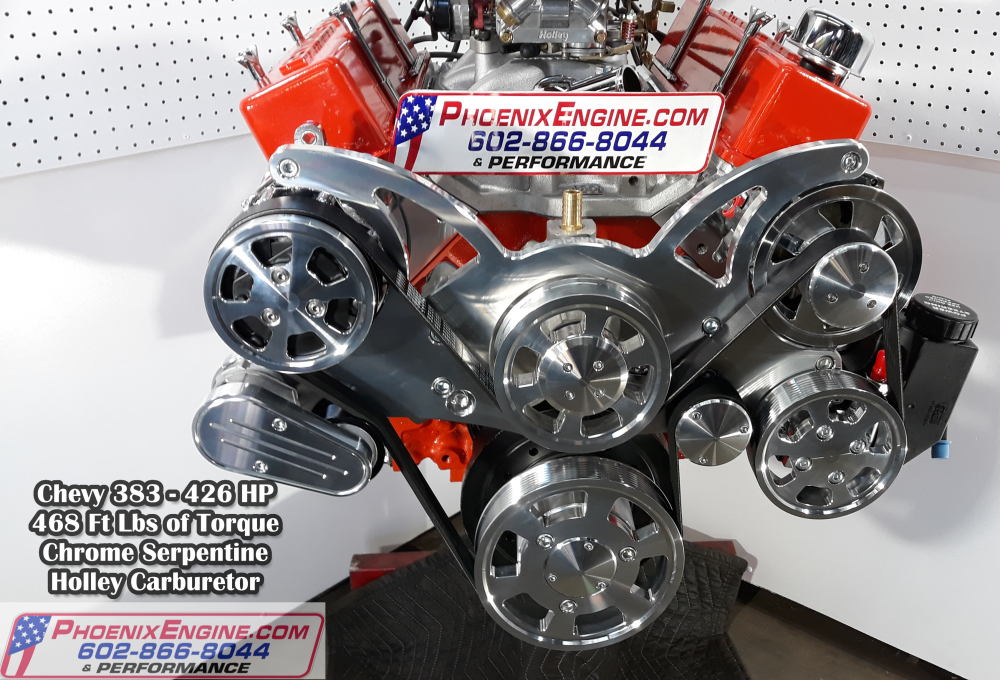

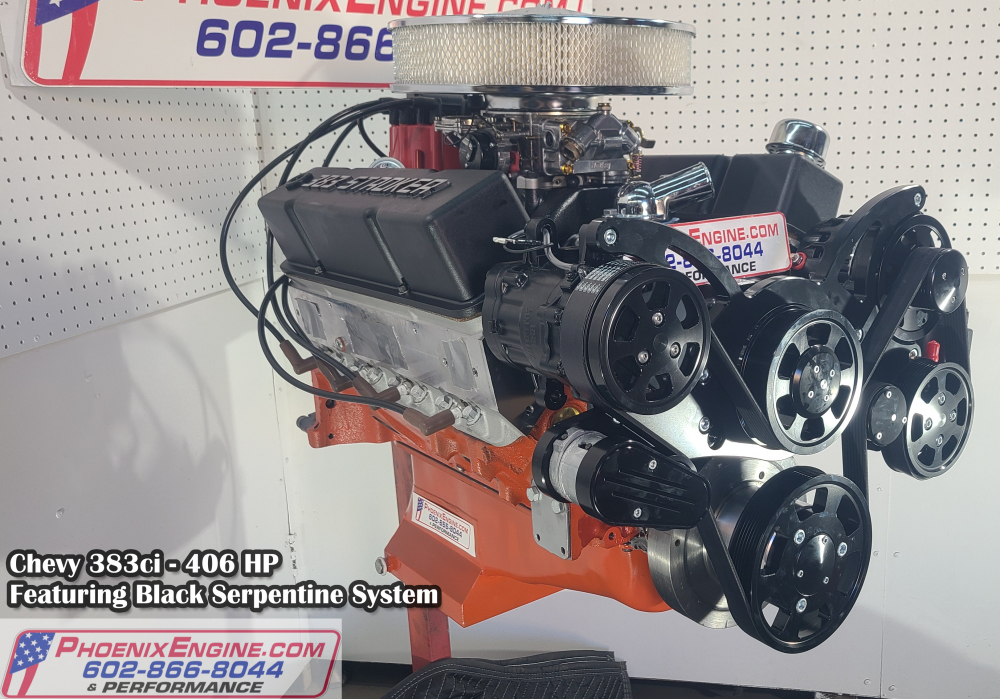

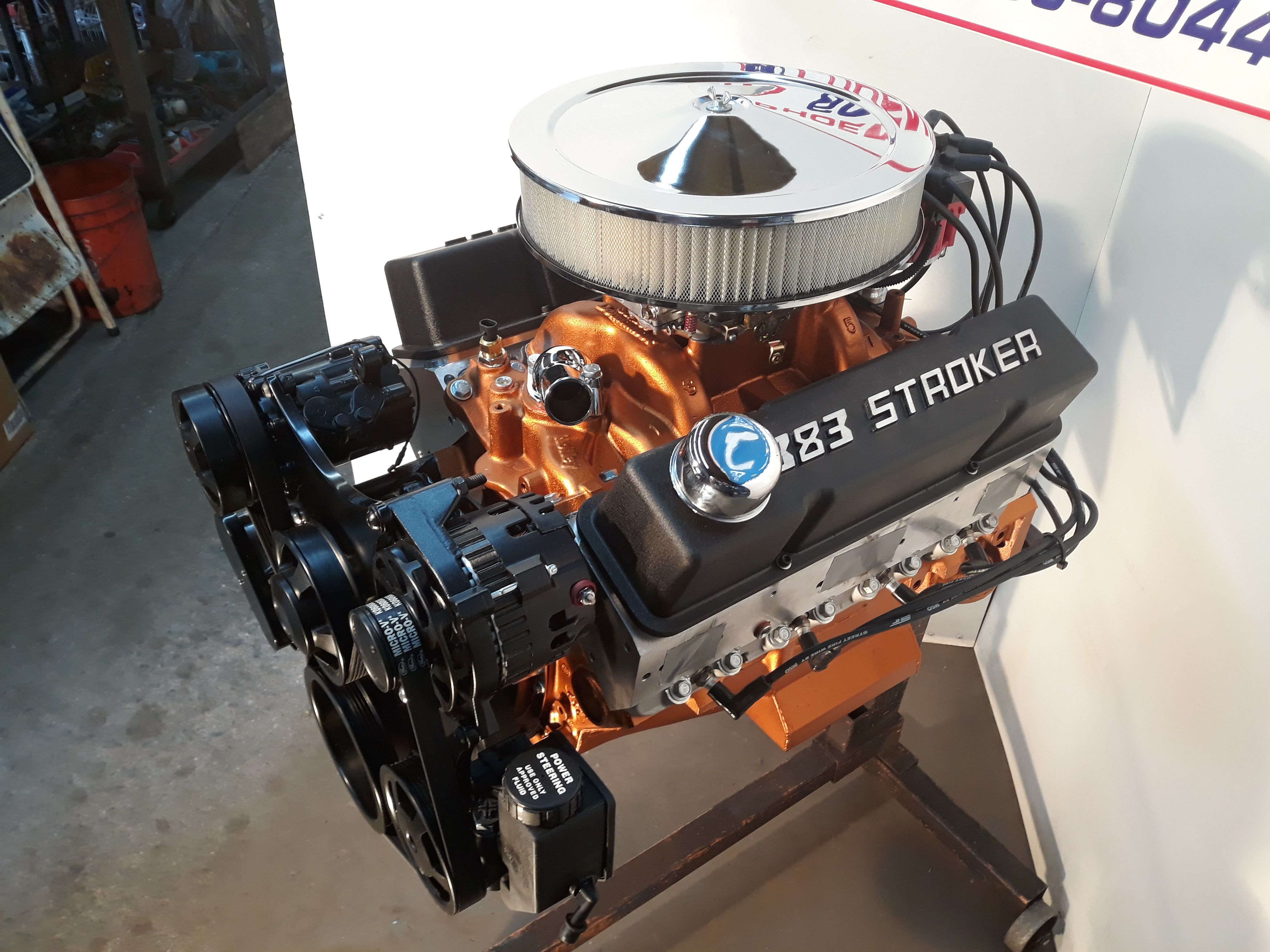

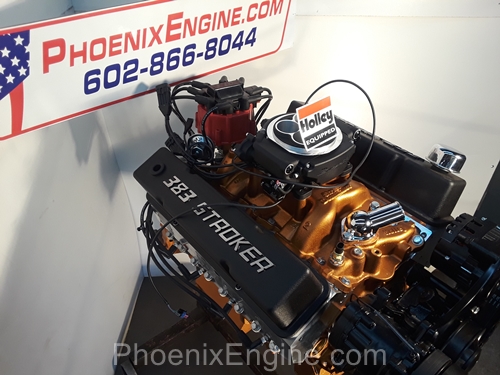

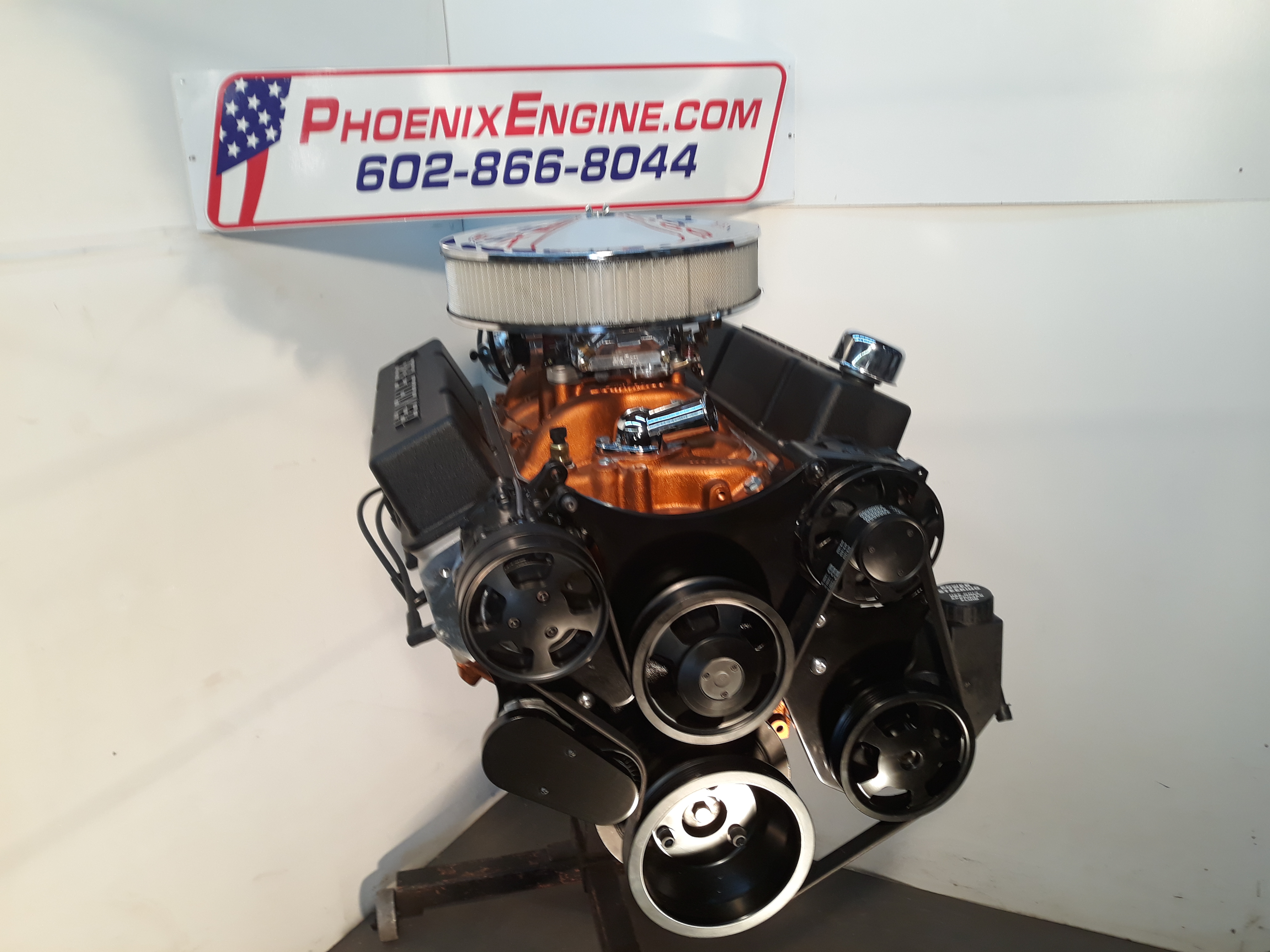

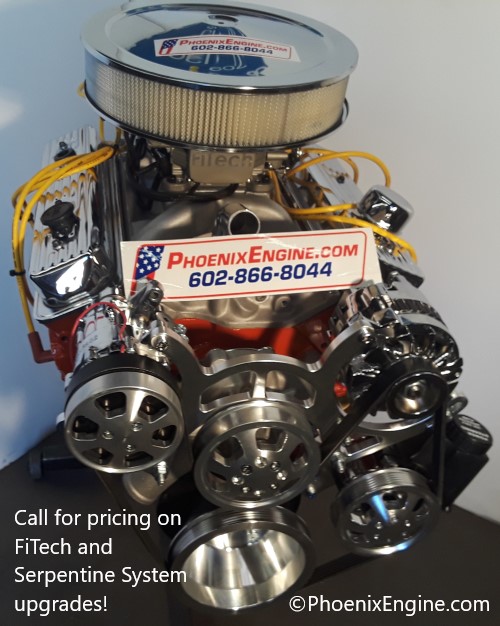

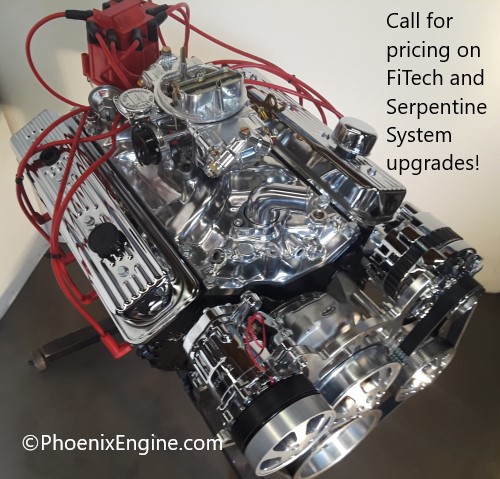

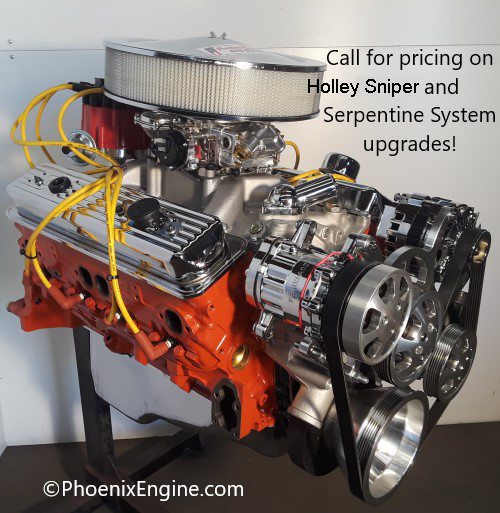

NOTE THAT SOME OF THESE PHOTOS SHOW OUR FITECH AND SERPENTINE SYSTEMS: CALL FOR PRICING ON THESE AWESOME UPGRADES!
WE NOW OFFER BOTH FITECH AND SERPENTINE SYSTEM UPGRADES FOR YOUR ENGINE. BOTH FITECH AND SERPENTINE SYSTEMS ARE ON SALE NOW - CALL US FOR THE BEST PRICING ON THESE UPGRADES!
* Note: When we custom build your engine,
you can choose from over 25 different colors or you can
supply the paint to have your engine painted the same color
as your car's finish!
Please note photos may vary from actual product as all our engines
are custom built.
