CHEVY 454 CI, 375 to 502 HP
2 BOLT MAIN

Midnight Big Block Engine

A "Crate Engine" means "Intake to Pan." This engine is now sold only in a Turnkey package.

Base pricing and torque ranges:

Chevy 454 CI, 375 HP = from $3795 — 455 to 470 ft lbs torque
Add $995 or 1095 for turnkey package (depending upon options you choose), for a total of $4790 or $4890.

Chevy 454 CI, 402 HP = from $3995 — 460 to 485 ft lbs torque
Add $995 or 1095 for turnkey package (depending upon options you choose), for a total of $4990 or $5090.


Chevy 454 CI, 425 HP = from $3995 — 465 to 490 ft lbs torque
Add $1195 or $1295 for turnkey package (depending upon options you choose), for a total of $5190 or $5290 .
This engine has great vacuum for power brakes and street applications!

Chevy 454 CI, 435 HP = from $4095 — 468 to 496 ft lbs torque
Add $1195 or $1295 for turnkey package (depending upon options you choose), for a total of $5290 or $5390.
This engine has good vacuum for power brakes in a street application, and a little more agressive cam.

Chevy 454 CI, 455 HP = from $4195 * — 478 to 516 ft lbs torque >>> Shown in Photos >>>
* (Variances in HP effect the sound... the 455 HP's cam gives the best Old School sound.
This engine has a dual patterned cam or single patterned cam with a great old school sound. This is one of our most popular engines!)
Add $1295 to $1395 for turnkey package (depending upon options you choose), for a total of $5490 or $5590.

Chevy 454 CI, 475 HP = from $4595* — 502 to 565 ft lbs torque
* This engine has a dual patterned cam or a single patterned cam with a great old school sound. This is another of our most popular engines!)
Add $1295 to $1395 for turnkey package (depending upon options you choose), for a total of $5890 or $5990.

Chevy 454 CI, 502 HP = from $4795 — 558 to 584 ft lbs torque
Add $1395 to $1495 for turnkey package (depending upon options you choose), for a total of $6190 or $6290.

Please note that variances in HP effect the sound of all these engines.
Call us for pricing on higher horsepower, thanks!

Ask about our Fast Track Startup:
That means this engine can be
Real Ready to Run OUT OF THE BOX
if you choose our our Fast Track startup, which includes break in, super tuning, jetting, and more.

If you choose to do a Fast Track Start Up, we have special pricing right now on these engines!

Fast Track animation

Click HERE to learn more about FAST TRACK!

Fast Track animation

When you call, be sure to ask us for pricing on:
---
our Aluminum Head upgrade
--- our Turnkey Package for this Big Block Chevy
--- Four Bolt Main upgrade for this engine

GREAT MILD to HOT STREET ENGINES!!
>>>>>>>>>
This One is A Real Torquer

HIGH PERFORMANCE Dyno Tested With YOU IN MIND FOR THE STREET. THIS ENGINE WAS BUILT FROM ONE OF OUR DYNO PACKAGES.
Your specific engine can also be Dyno tested, for an additional charge.

TORQUE MONSTER
YES These Power 3, 4, or 5 Engines ARE TORQUE MONSTERS

This Combination would be GREAT in your MUSCLECAR, STREET, STRIP, HOT RODS, KIT CARS, CUSTOM TRUCKS, 4 X 4, & JEEPs -- Excellent street machine engine

This Engine is a 2-bolt Seasoned Heavy Duty Chevy Big Block.
Engine Will Run on unleaded fuel 91+

What comes with your Power 3, 4, or 5® engine?


YOUR POWER 3, 4, or 5®
ENGINE PARTS include:

  • Holley 750 CFM carburetor OR
    Holley 800 CFM carburetor OR
    Holley 850 CFM carburetor,
    depending upon HP and application.
  • Pro Billett HEI distributor with MSD kit.
  • The lower horsepower engines come with the MSD HEI distributor.
    The MSD 2-pack is included with these engines: 475, 502, 525, and 527 HP.
    The MSD 3-pack 6AL kit is extra, and the MSD 3-pack 6AL-2 pack is extra.
  • Plug wires and spark plugs.
  • Chrome air cleaner included, black is extra.
  • Water pump, water pump pulleys, and crank shaft pulleys are included. (Some engine applications are not included.)
  • Iron heads included, or call us for pricing on aluminum heads.
  • New harmonic balancer, flex plate included for your automatic.
    Fly wheel for 4, 5, or 6 speed transmission is extra.
  • Chrome valve covers (ask about painted colors!)
  • GM Steel heavy duty thick walled timing chain cover (painted your choice of color)
  • 5 qt oil pan (ask about 7 qt)
  • Power Engine® cam kit Comp or Howards Cam 510, 520, up to 575
    Single or dual patterened cams, depending upon your combination.
  • Power Engine® Comp or Howards Cam hydraulic lifters
  • Power Engine® Comp spring sets, 911 to 924 series spring sets)
  • Dual plane hi rise aluminum intake manifold, plain or Edelbrock
    (polished intake manifold is extra)
  • One-piece stainless steel intake valves 207
  • One-piece stainless steel exhaust valve 1.7
  • Comp roller kit rockers on smaller horsepower engines; full roller rockers and molly push rods on higher horsepower applications
  • Premium positive valve seals, polyacrylate
  • Heavy duty, HP roller timing chain
  • Controlled internal oil system (a P.E.R. exclusive!)
  • Heavy duty, high volume Melling oil pump
  • Heavy duty steel collar oil shaft
  • Heavy duty oil pickup screen

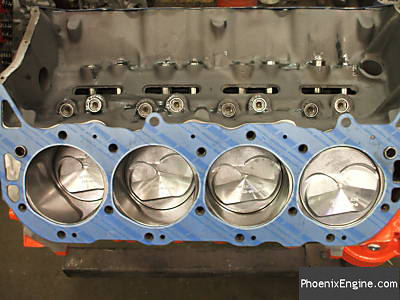

  • High performance Speed Pro flat top or dome hypereutectic pistons
    If you want forged pistons as an upgrade, just give us a call.
    Compression ratio starting at 8.5, 9.1, 9.5, 9.7, 10.1, up to ratio required depending upon horsepower desired
  • THESE ENGINES WILL RUN ON PUMP GAS!
  • Speed Pro High Performance plasma molly rings
  • Brass freeze plug kit, oil gallery plug kit
  • High quality Fel Pro rear main seal double lip polyacrylate
  • Fel Pro PermaTorque heavy duty gaskets and gasket set
  • King or Clevite Main bearings, real Tri metal, high quality
  • King or Clevite Rod bearings, real Tri metal, high quality
  • New rod nuts, ARPs bolts installed
  • Cam bearings, high quality 360 set
  • Built from one of our Dyno tested and road proven Dyno packages. Your specific engine can also be Dyno tested for an additional charge.
  • Call for info on flex plate or fly wheel.
  • Call for correct flex plate on automatics.
  • Call for info on standard transmissions (4 or 5 speed, etc.)
  • Comes complete, intake to oil pan. Some assembly may be needed.

If you want to upgrade engine parts for street or strip, just give us a call!

POWER 3, 4, or 5® ENGINE
MACHINE LABOR includes:

  • P.E.R. 4-angle® valve job
  • Iron heads are custom machined for screw in studs and guideplates
    to match cam geometry.
  • Mill-matching surfaced heads
  • Heavy duty thick wall valve guides
  • Valve guides custom cut for posi-seals
  • Jet vat block and magnifluxing,
    block deck resurface
  • Remove and replace all freeze plugs
  • Remove and replace gallery plugs
  • Remove and replace cam bearings
  • Custom centerline boring of block
    True 90 degree V8 centerline boring
  • Custom power hone to fit type of pistons
  • Custom power hone to fit type of rings
  • GM nodular crank custom ground to spec,
    then micro polish radius oil holes
  • Steel forged rods with ARP rod bolts
  • Rods and wrist pins checked for clearance
  • Rods pins pressed off, then heat fitted
  • Rods checked for alignment
  • Street race balancing
    For race or competition engines, call us on upgrading machine work!

>>> FOR MACHINE SHOP WORK, CLICK HERE <<<

Comes Completely Assembled

2500, 2800, or 3000 Stall Speed Converter Required

FOR ANY CHANGES NEEDED, JUST CALL AND WE WILL BUILD A CUSTOM ENGINE PACKAGE FOR YOU FROM 375 HORSEPOWER TO 714 HORSEPOWER. YOU CAN ALSO CHANGE THE COLOR, CHOOSING FROM OVER 25 DIFFERENT COLORS.

ALL OUR ENGINES ARE CUSTOM HAND BUILT:
327- 350- 383- 396- 427- 454 AND MORE!

Call to order this engine:
602-866-8044
Monday through Thursday: 8:30am - 5:00pm
Friday 08:30am - 4:00pm
Saturday: BY APPOINTMENT ONLY
Sunday: Closed
Times listed are Arizona time (-7 GMT).
Arizona does not observe Daylight Savings Time. We are on MST all year round.

These Power 3, 4, or 5 ® Engines are totally REBUILT in our Machine Shop by Professionals from start to finish. The Power 3, 4, and 5 ® Engine Performance Combination was developed from our over 50 years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, and JEEPS. Established in 1971, PhoenixEngine.com has built over 200,000 quality engines to date.

Warranty and Shipping Info:

This engine has a one year written warranty. Buyer pays actual shipping costs if unable to pick up engine from our shop in Phoenix AZ. Some state freight restrictions apply. Payment due in full prior to shipping. We accept Visa, Mastercard, Discover, American Express, money orders, cashier's checks, and direct deposit. (GET A DISCOUNT WITH A DIRECT DEPOSIT!) Business or personal checks must clear prior to shipping. Arizona residents must add 9.3% sales tax.
Please call for core requirements.
We accept Visa    We accept MasterCard    Discover credit card is accepted at Phoenix Engine  amex



SPECIAL PROMO!! Call NOW for possible FREE SHIPPING to Southern California (LA dock only)! We also offer super shipping rates to all 48 continental states. Ask about shipping to Hawaii, Alaska, and international destinations.

Call PhoenixEngine.com today to order!
602-866-8044

Disclaimer: Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine. Pricing is deemed to be correct at time of posting, but is not guaranteed. It is listed as a guideline only. Please call us for complete pricing on the engine built to your specific requirements.
These engines are built from our Dyno tested packages in our shop and road proven.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!

Please be sure to read our full Disclaimer: CLICK HERE.
10/14/22

3/7/24 15:14

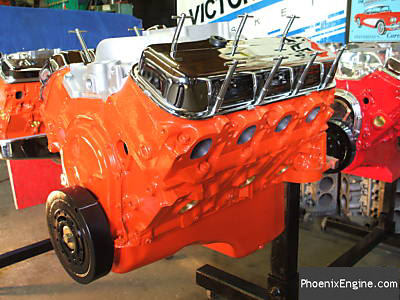

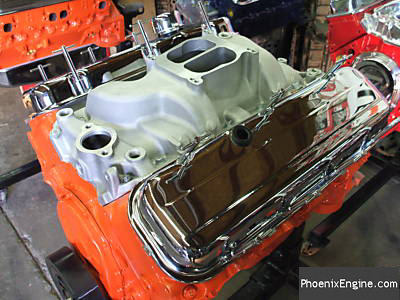

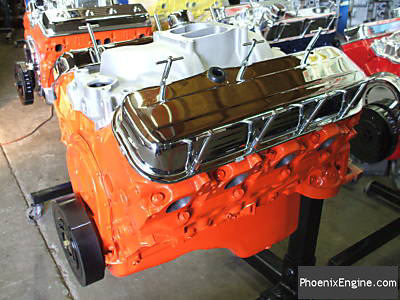

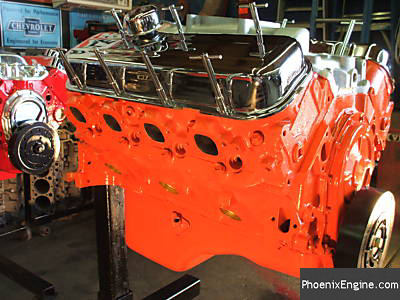

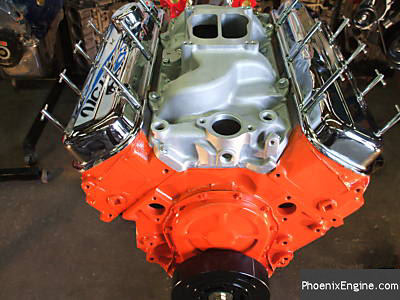

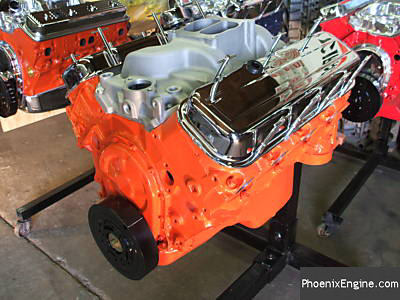

Chevy 454 engine

Chevy 454 engine

Chevy 454 engine

Chevy 454 engine

Chevy 454 engine

Chevy 454 engine

Chevy 454 engine

Chevy 454 engine

* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

Please note photos may vary from actual product as all our engines are custom built.
