FORD BRONCO AND 4 x 4 ENGINES:
|
NEW UPGRADES AVAILABLE:
CALL US FOR DETAILS! |
Ask about
our
Fast Track Startup:
That means this engine can be Real
Ready to Run OUT OF THE BOX if you choose our Fast Track startup, which
includes break in, super tuning, jetting, and more.
If you choose a Fast
Track Start Up, we have special pricing right now!
 |
 |

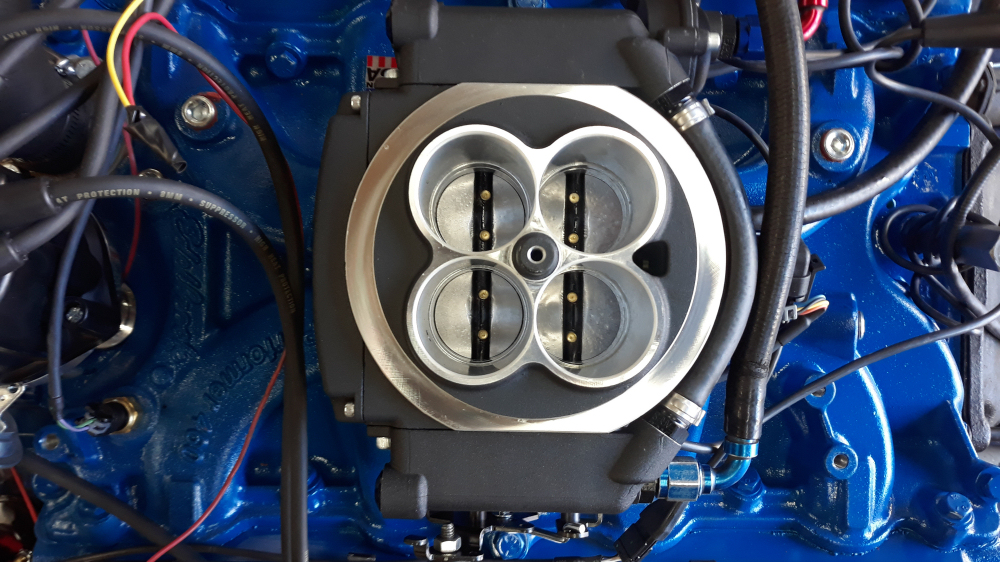

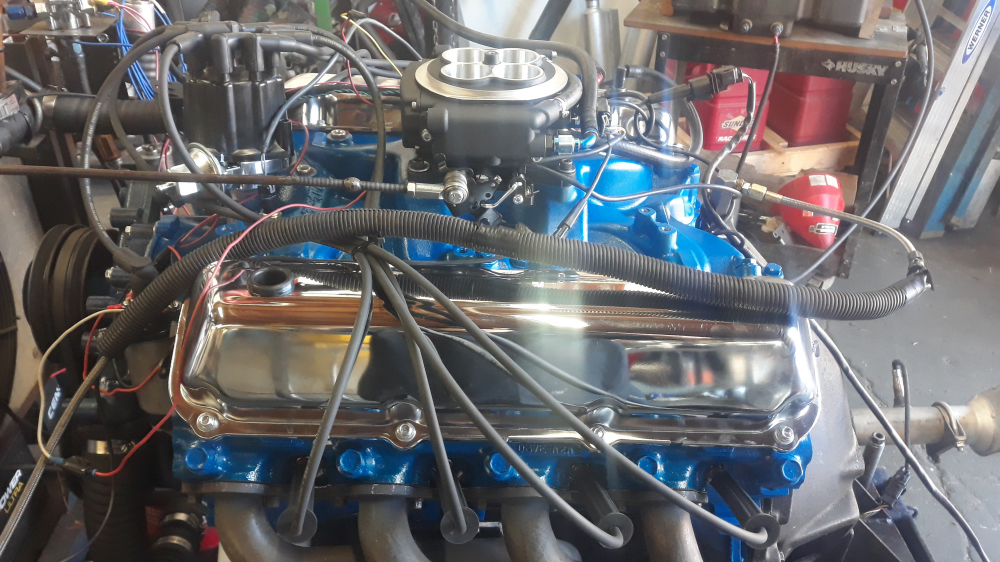

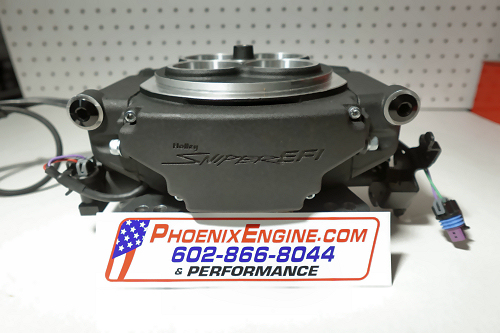

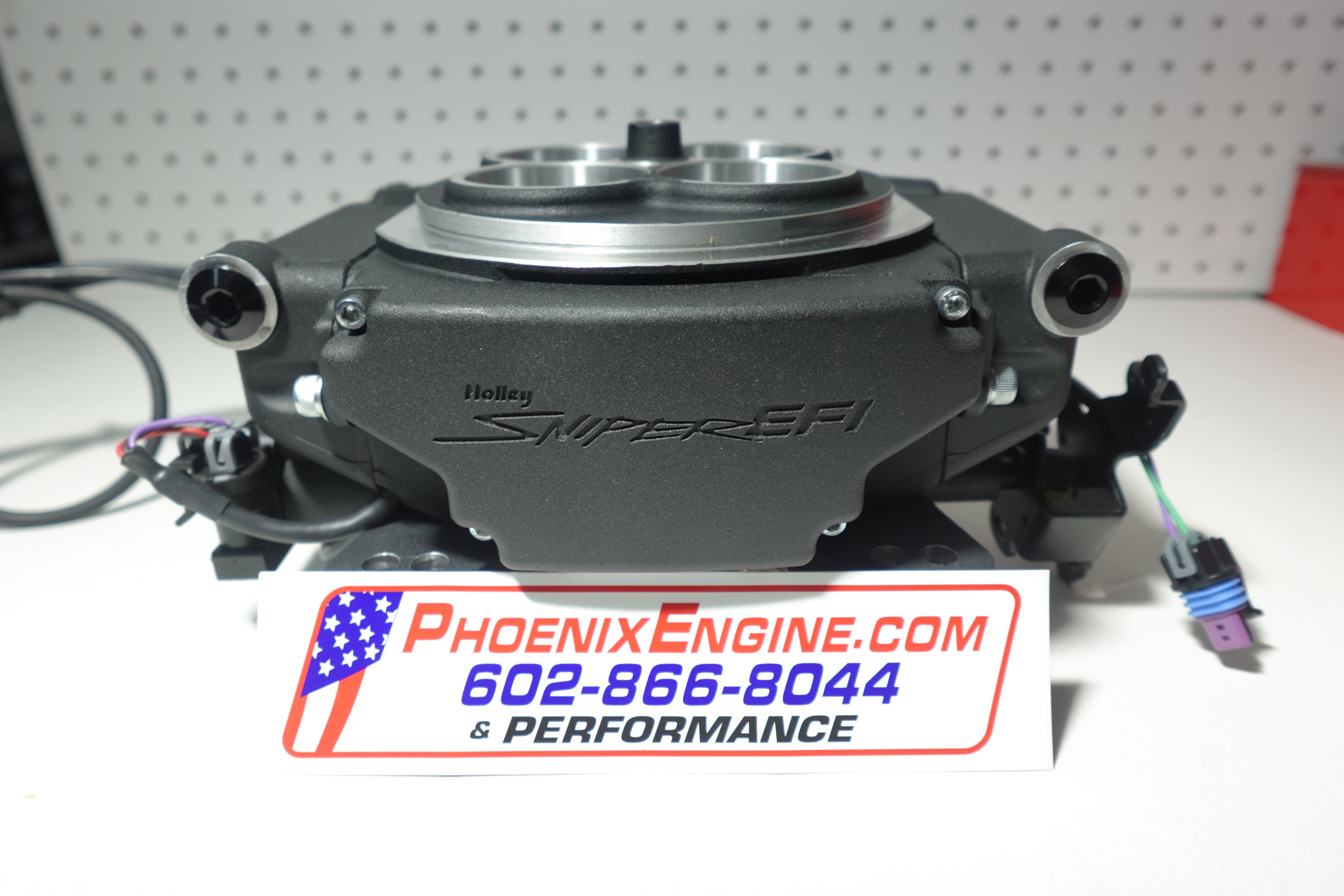

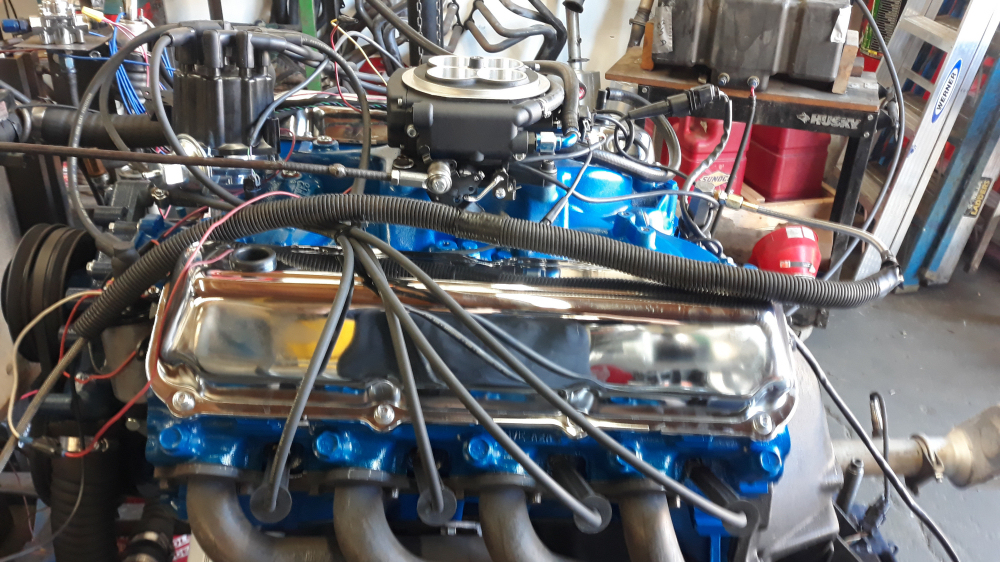

We are a Holley Sniper 4 Barrel Injection System Dealer. If you are interested in the 4 barrel Holley Sniper throttle body injection computer system, these are available on all of our carburated four barrel based intake manifolds. For the additional cost and sale pricing give us a call.
This engine was built from
one of our Dyno packages, which was Dyno tested on a real
Super Flow. Remember, most sellers on the
web do NOT test on a Dyno!!
Your specific engine can be Dyno tested for an additional charge.
This Power 4 engine combination would be a great replacement mild street for a BRONCO, 4x4, Mustang, Cougar, Fairlane, Gran Torino.
The engine has a fair to mid idle, a Comp or Howards Cam Kit cam that puts out 406 HP at 4400 rpm and 440+ ft lbs of torque.
You will need a speed stall converter. This is an excellent engine for every day driving!
Use this engine for your musclecar, street, hot rod, kit car, custom truck, 4X4 or Jeep. It has a GREAT OLD SCHOOL SOUND.
Call us for higher horsepower; we will custom hand build exactly the engine you need!
For Bronco, 4x4, JEEP |
 |
Special
features on this turnkey engine include these
new parts and more:
(Be sure to scroll down
the page to see a more detailed listing.)
This engine is a Seasoned Block, hand picked.
-
SEAL POWER PISTONS 8.5, 8.9, 9.0, 9.1, 9.2, 9.4, 9.6, 9.8 compration ratios.
10.1 or higher compression ratios are for ALUMINUM HEAD applications. -
New aftermarket Edelbrock Performer, Weiand, Top Street, Holley, etc aluminum dual plane intake manifold.
Note: Lower horsepower engines have 4 barrel iron intake manifolds. - ASK US ABOUT
AN ALUMINUM HEAD UPGRADE FOR YOUR BIG BLOCK FORD!
- New Edelbrock RPM dual plane intake
manifold for higher horsepower. (Please call.)
- Edelbrock 600 CFM carburetor OR
Edelbrock 650 CFM carburetor OR
Edelbrock 750 CFM carburetor, depending upon HP and application.
- Holley 600 CFM carburetor OR
Holley 650 CFM carburetor OR
Holley 750 CFM carburetor, depending upon HP and application.
- This engine comes with the HEI distributor. Add the MSD 2 pack distributor or the MSD 3 pack distributor for an extra charge, depending upon the options you want.
- Also ask for the Billet
Pertronix distributor - BEST VALUE!
- Plug wires and spark plugs.

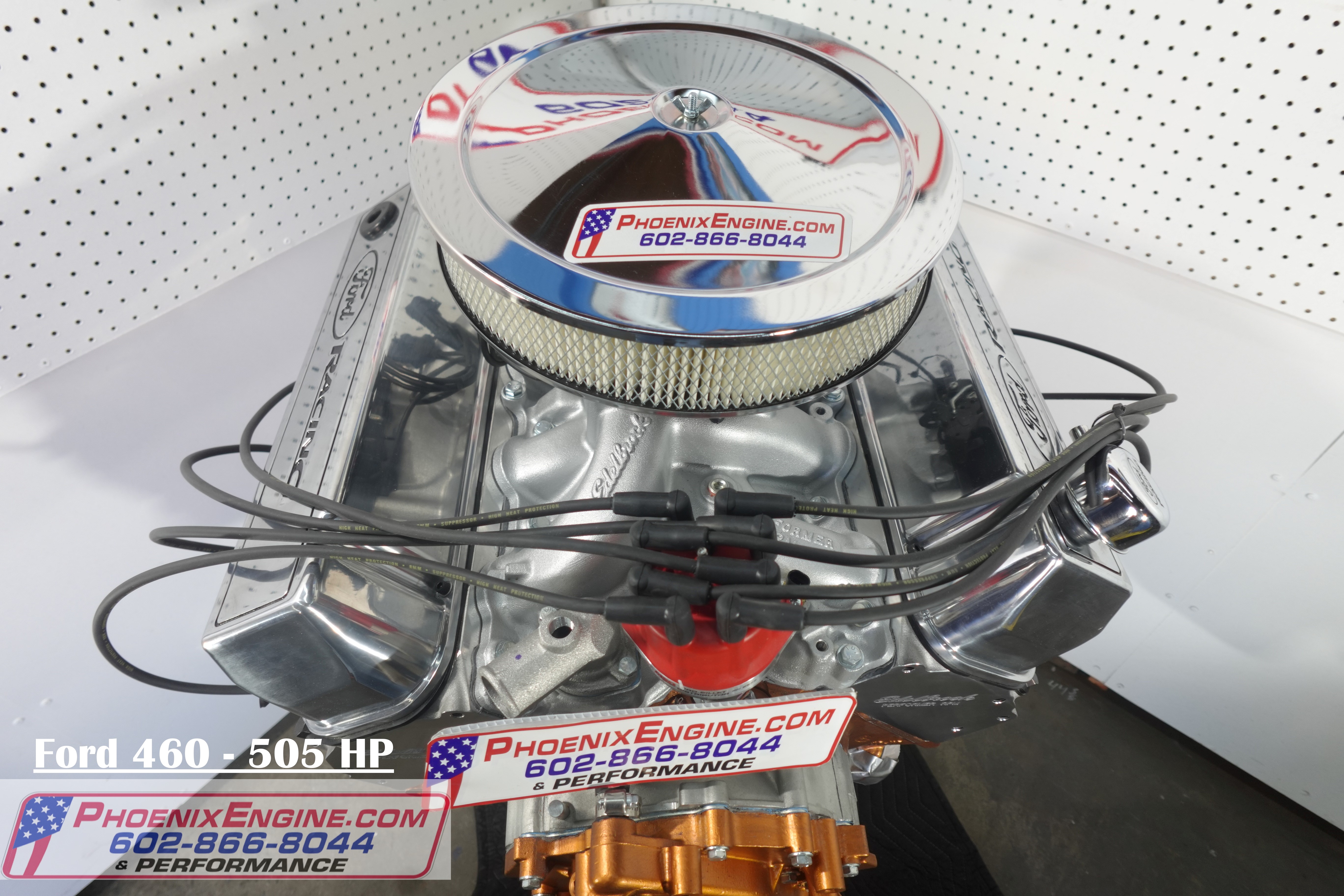

- New chrome air cleaner included. Custom
air cleaner extra.
- Water pump, thermostat housing. You will
need to keep and use your own water pump and balancer pulleys.
- New aftermarket aluminum intake manifold: Edelbrock,
Weiand, TopStreet, or Holley, etc.
Smaller horsepower engines come with iron 4 barrel intakes.
- Large 460 Beam forged rods, size 6.605,
with ARP rod bolts.
Note: smaller horsepower engines have machined rods and new rod nuts.
- NODULAR CRANK Pro Turn micro polished.
- Heavy duty roller timing chain high performance,
Melling.
- Chrome valve covers, Aluminum timing cover.
- New 5 qt steel oil pan.
6 and 7+ qt pans, 4x4 pans are extra.
- New P.E.R. high performance harmonic balancer.
- 460 pulleys are not available; will
have to use your own.
We will use house pulleys to run the engine.
- Engine will run on premium unleaded fuel.
- Built from one of our Dyno tested and road proven engine packages. Your specific engine can be Dyno tested for an additional charge.
- Call for info on flex plate or fly wheel.
- Call for correct flex plate on automatics.
- Call for info on standard transmissions (4 or 5 speed, etc.)
- Comes complete, intake to oil pan. Some assembly may be needed.
(Remember to scroll down to see more detailed listings of the Parts and Machine labor.)
Your Power 4 Engine®
ENGINE
PARTS include:
- Power 4® Comp or Howards Cam kit: Hydraulic flat tappet 513 intake lift, 520+ exhaust valve lift.
- Power 4® Comp or Howards Cam hydraulic flat tappet lifters
- New Valves: 2.080 Intake valves, 1.650
exhaust valves
GREAT Old School sound! - New hardened exhaust seats for use with leaded or unleaded fuel.
- New 1.440 high performance springs set to match cam.
- New spiral type valve guides for better oil retention.
- New Premium Viton polyacrylate valve seals for high temperature.
- Hardened push rods, rocker arm assembly.
- Edelbrock Performer RPM Aluminum Intakes
- Heavy duty roller timing chain, Melling
- Controlled internal oil system (a PER exclusive!)
- Heavy duty Melling high volume oil pump
- Heavy duty steel collar oil shaft
- Heavy duty oil pickup screen
- High quality Seal Power pistons 9.1
- P.E.R.® Seal Power high performance plasma molly rings
- Brass freeze plug kit, gallery plug kit
- High quality rear main seal double lip polyacrylate
- Fel Pro PermaTorque heavy duty gaskets and gasket set
- King or Clevite Main bearings, Real Tri metal, high quality
- King or Clevite Rod bearings, Real Tri metal, high quality
- New ARP Rod Bolts and nuts installed
- Cam bearings, high quality 360 Set
Your Power 4 Engine®
MACHINE
LABOR includes:
- P.E.R.® 4-Angle valve job
- Mill-matching surface heads to ensure positive sealing between block deck and head
- Heavy duty thick wall valve guides
- Valve guides custom cut for posi-seals
- Jet vat block and magnifluxing
- Remove and replace all freeze plugs
- Remove and replace gallery plugs
- Remove and replace cam bearings
- Custom centerline boring of block
True 90 degree V8 centerline boring - Power hone to fit pistons and rings
- Custom crank Micro polish radius oil holes
- Rods pressed off, then heat fitted
- Rods checked for alignment ARP Rod Bolts Installed
- Street balancing and blueprinting
-------------------------------
Call PhoenixEngine.com today to order!
Telephone: 602-866-8044
COMES COMPLETELY ASSEMBLED, INTAKE TO PAN.
For any changes needed, just call and we will build a custom engine package for you with the horsepower you want. You can also change the color, choosing from over 25 different colors.
All our engines are custom HAND BUILT by professionals in our machine shop!
Call to order this engine:
602-866-8044
Monday through Thursday: 8:30am - 5:00pm
Friday 08:30am - 4:00pm
Saturday: BY APPOINTMENT ONLY
Sunday: Closed
Times listed are Arizona time (-7 GMT).
Arizona does not observe Daylight Savings Time. We are on MST all year round.
DID YOU KNOW? At Phoenix Engine, every Power Engine® is CUSTOM rebuilt in our machine shop by P.E.R. professionals, from start to finish. The Power Engine® Performance Combination was developed from our over 50 years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, HOT RODS, CUSTOM MODS, JEEPS, and RESTORATIONS. Established in 1971, PhoenixEngine.com has built over 200,000 quality engines to date.
Warranty and Shipping Info:
This engine has a
one year written warranty. Buyer pays actual shipping
costs if unable to pick up engine from our shop
in Phoenix AZ. Some state freight restrictions
apply. Payment due in full prior to shipping. We
accept Visa, Mastercard, Discover, American Express, money orders, cashier's
checks, and direct deposit. (GET
A DISCOUNT WITH A DIRECT DEPOSIT!) Business
or personal checks must clear prior to shipping.
Arizona residents must add 8.6% sales tax.
Please call for core requirements.
Call PhoenixEngine.com today to order!
Telephone: 602-866-8044
Disclaimer: Please note that some parts are based
on availability. The brand names listed above are guidelines;
the exact brand name may not be available at the time
we build your engine. Pricing is deemed to be correct at time
of posting, but is not guaranteed. It is listed
as a guideline only. Please call us for complete
pricing on the engine built to your specific requirements.
These engines are built from our Dyno
tested and road proven packages in our shop.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!
Please be sure to read our full Disclaimer: CLICK HERE.
26-jul-24 14:06
July 26, 2024
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
Click photo to enlarge
5/15/24 7/2/24
* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!
Please note photos may vary from actual product as all our engines are custom built.
