MAIN PHONE NUMBER: 602-866-8044

FORD 302 KEITH BLACK ENGINES — 340 - 347 - 351* - 352* HP TURNKEY PACKAGE ENGINES

FORD 351WINDSOR —
351* - 352 - 352* - 357 - 360 - 370* - 380* HP
TURNKEY PACKAGE ENGINES

KEITH BLACK PISTONS
MIDNIGHT BLACK ALUMINUM HEAD
ENGINES in TURNKEY PACKAGES

* denotes forged pistons vs hypereutectic pistons

SPECIAL SALE PRICING RIGHT NOW:

Turnkey Pricing and Estimated Torque Ranges:

Ford 302 / 340HP: $ 5595 — 351 ft lbs torque
(Cam with little less vacuum, okay for power brakes)
(Hypereutectic piston engine)

Ford 302 / 347HP: $ 5695 — 356 ft lbs torque
(Cam with little less vacuum, still okay for power brakes)
(Hypereutectic piston engine)

Ford 302 / 351HP: $ 5895 — 360 ft lbs torque n
(Cam with less vacuum, great old school sound)
(Hypereutectic piston engine)

Ford 302 / 352HP: $ 5995 — 364 ft lbs torque
(Hypereutectic piston engine)
(Cam with less vacuum, single pattern, high rev, very aggressive.)

LET'S GO ROLLER!
ASK ABOUT OUR ROLLER CAM UPGRADE PACKAGES!

ASK ABOUT OUR ROLLER CAM UPGRADE PACKAGES!

(For larger engines, please refer to our Ford-10 page.)

Ask about our
Fast Track Startup:
That means this engine can be Real Ready to Run OUT OF THE BOX if you choose our Fast Track startup, which includes break in, super tuning, jetting, and more.
If you choose a Fast Track Start Up, we have special pricing right now!

Click HERE to learn more about FAST TRACK!

These engines are built from our road proven and Dyno tested packages in our shop. This is a very good street friendly engine with an Old School sound.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!

These are some of the best street high performance engines out there, when Dyno tested or Fast Tracked!

For Bronco, 4x4, JEEP or Ford 4-wheel drive Trucks

Special features on this turnkey engine include these new parts and more:
(Be sure to scroll down the page to see a more detailed listing.)

• New Dart, ProFiler, or ProHeader Aluminum racing performance heads
• Aluminum Ford 23° racing cylinder performance heads
• Thicker deck surface for great cooling and improved sealing
• 190cc to 210cc intake runner ports are port matched to the intake, depending upon the application
• 70cc exhaust ports for better flow
• 60 cc combustion chambers
• High performance stainless steel stem intake valves 202
• High performance stainless steel stem exhaust valves 1.6
• Comp screw in studs and guide plates, center spec.
• New bronze valve guides, step locked for no slipping
• KEITH BLACK PISTONS, file fit rings.
  Ask about forged pistons as an upgrade.
• STEEL FORGED RODS with ARP rods, bolts.
• NODULAR CRANK Pro Turn micro polished.
• Roller rockers, Molly push rods.
• PER Screw in studs, guide plates.
• Heavy duty roller timing chain, high performance.
• New Satin Aluminum intake manifold.
  Polished RPM dual plane intake manifold is extra.
• NEW Holley Carb 750 CFM with electric choke is best for max horsepower.
• NEW Edelbrock Carb 750 CFM with electric choke.
  Note: manual choke carburetors and double pump carburetors are optionally available for an extra cost.
• Choice of 3 distributors:
  ProBillet Street HEI distributor is included,
  MSD 2 pack or MSD 6AL 3 pack is extra.
• Spark plug wires, spark plugs, high performance.
• Water pump, chrome pulleys.
• 14" chrome air cleaner included. Custom air cleaner extra.
• New FORD RACING or Edelbrock valve covers included.
• New aluminum timing cover.
• New chrome 5qt oil pan. (Bigger engines require a 7qt oil pan.)
• New Pro high performance harmonic balancer.
• Flex plate for automatic transmissions. Call us for details on Flex plate for automatic transmissions, or on standard transmissions (4 speed, 5 speed, 6 speed).
• Built from one of our Dyno tested and road proven packages. Your specific engine can be Dyno tested for an additional charge.
• Call for info on flex plate or fly wheel.
• Call for correct flex plate on automatics.
• Call for info on standard transmissions (4 or 5 speed, etc.)
• This engine is a seasoned block, hand picked.
• Comes complete, intake to oil pan. Some assembly may be needed.

• Scroll down for more details!!


What comes with your Power 3 Engine®?

Here's a SAMPLE listing of the parts and machine labor for your Power 3 Engine® from PhoenixEngine.com. Variances will occur dependent upon the HP and specifications for your engine.

Your Power 3 Engine®
ENGINE PARTS include:
(using the 302-376HP engine as a sample:

• Power 3® Comp or Howards Cam kit 483, 520, to 540+.
• Power 3® hydraulic lifters, Comp kit.
• Power 3® spring set, heavy duty (980 series spring sets).
• Edelbrock Performer RPM Aluminum or Professional Product intake manifold included. Polished intake is available for an extra charge.
• One piece stainless steel intake valves 202.
• One piece stainless steel exhaust valves 1.6
• Premium positive valve seals, polyacrylate Viton.
• Heavy Duty roller timing chain.
• Controlled internal oil system (a Phoenix Engine exclusive!)
• Heavy duty, high volume Melling oil pump.
• Heavy duty steel collar oil shaft.
• Heavy duty oil pickup screen.
• High quality KEITH BLACK pistons (hypereutectic or forged as per pricing).

• P.E.R.® HP Seal Power plasma molly rings (file fit).
• Brass freeze plug kit, oil gallery plug kit.
• High quality rear main seal, double lip polyacrylate.
• Fel Pro PermaTorque heavy duty gaskets and gasket set.
• King or Clevite main bearings, real tri metal, high quality.
• King or Clevite rod bearings, real tri metal, high quality.
• New rod nuts, bolts installed.
• Cam bearings, high quality 360 set.



Your Power3 Engine®
MACHINE LABOR includes:

• P.E.R. 4-angle® valve job.
• Mill-matching surface heads.
• New aluminum heads (see details above).
• Heavy duty thick wall valve guides.
• Valve guides custom cut for posi-seals.
• Jet vat block and magnifluxing.
• Remove and replace all freeze plugs.
• Remove and replace gallery plugs.
• Remove and replace cam bearings.
• Custom centerline boring of block
  (true 90 degree V8 centerline boring).
• Power hone to fit pistons and rings.
• Custom crank micro polish radius oil holes.
• Rods pressed off, then heat fitted.
• Rods checked for alignment, ARP rod bolts installed.
• Street balancing.



  Call to order this engine:
  602-866-8044
  Monday through Thursday: 8:30am - 5:00pm
  Friday 08:30am - 4:00pm
  Saturday: BY APPOINTMENT ONLY
  Sunday: Closed
  Times listed are Arizona time (-7 GMT).
  Arizona does not observe Daylight Savings Time. We are on MST all year round.

• DID YOU KNOW? At Phoenix Engine, every Power Engine® is CUSTOM rebuilt in our machine shop by P.E.R. professionals, from start to finish. The Power Engine® Performance Combination was developed from our over 50 years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, HOT RODS, CUSTOM MODS, JEEPS, and RESTORATIONS. Established in 1971, PhoenixEngine.com has built over 200,000 quality engines to date.

For any changes needed, just call and we will build a custom engine package for you with the horsepower you want. You can also change the color, choosing from over 25 different colors.

Warranty and Shipping Info:

This engine has a one year written warranty. Buyer pays actual shipping costs if unable to pick up engine from our shop in Phoenix AZ. Some state freight restrictions apply. Payment due in full prior to shipping. We accept Visa, Mastercard, Discover, American Express, money orders, cashier's checks, and direct deposit. (GET A DISCOUNT WITH A DIRECT DEPOSIT!) Business or personal checks must clear prior to shipping. Arizona residents must add 8.6% sales tax.
Please call for core requirements.


Disclaimer: Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine. Pricing is deemed to be correct at time of posting, but is not guaranteed. It is listed as a guideline only. Please call us for complete pricing on the engine built to your specific requirements.
These engines are built from our Dyno tested and road proven packages in our shop.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!
Please be sure to read our full Disclaimer: CLICK HERE.

07/27/2024

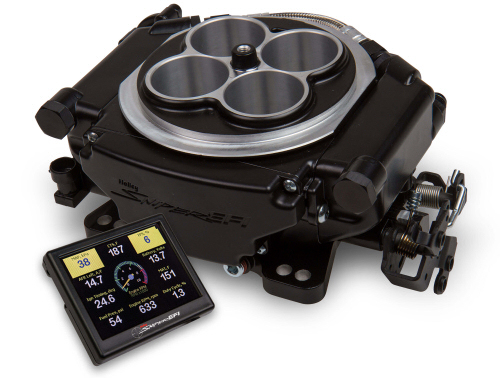

Optional Holley Sniper EFI .

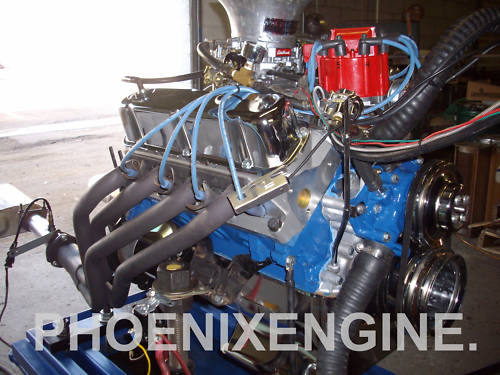

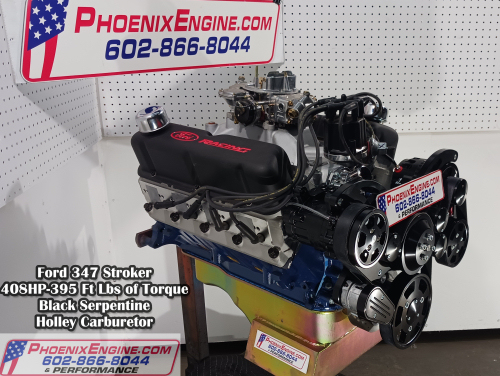

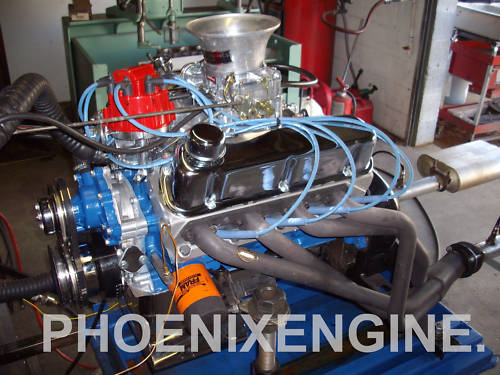

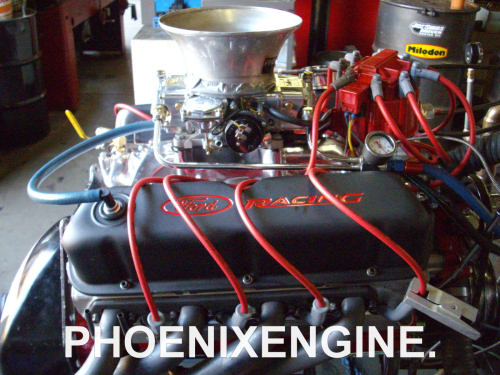

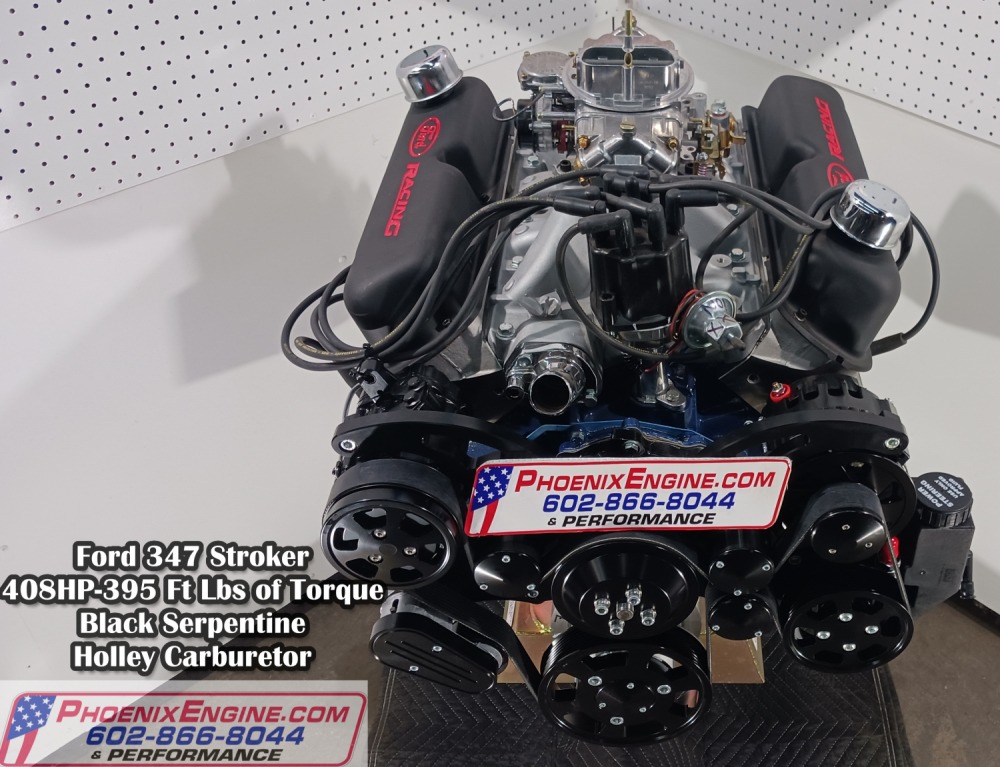

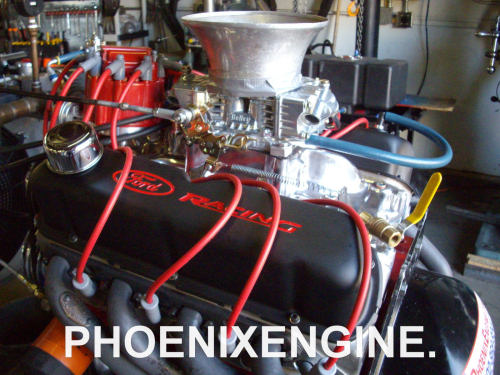

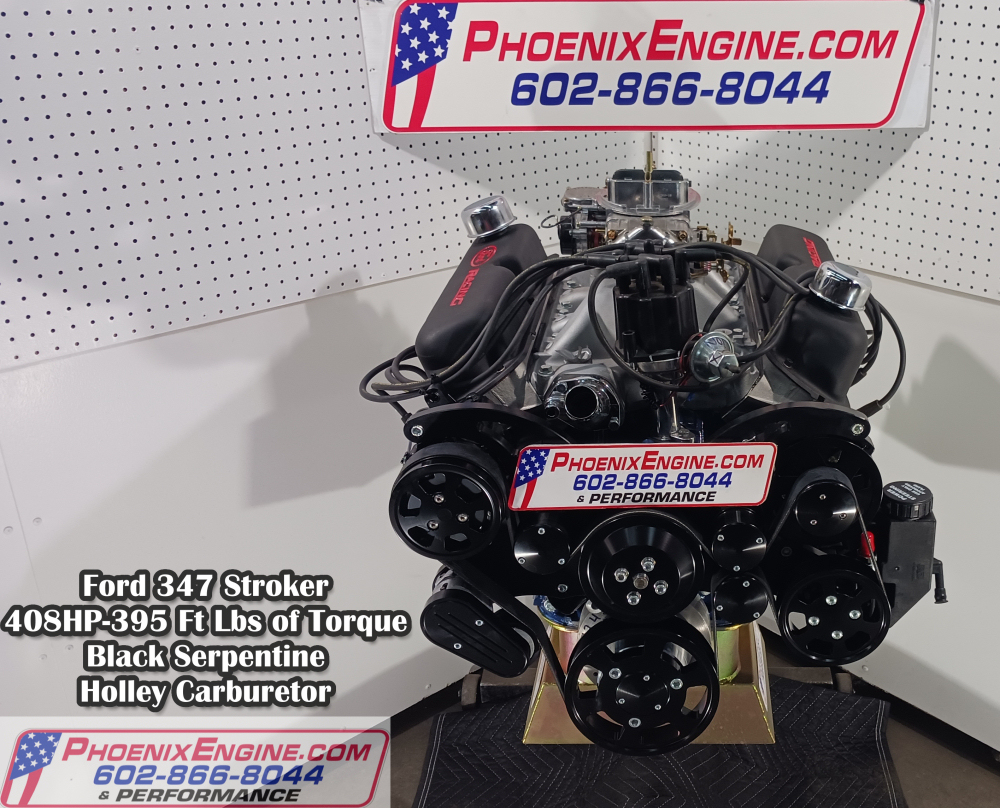

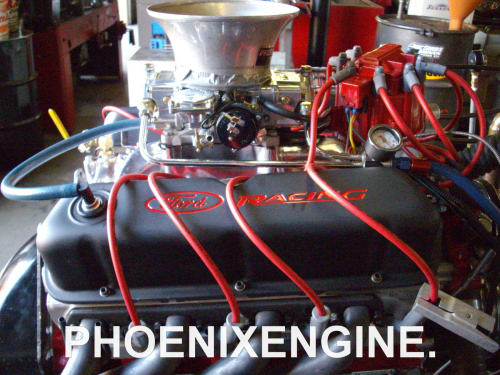

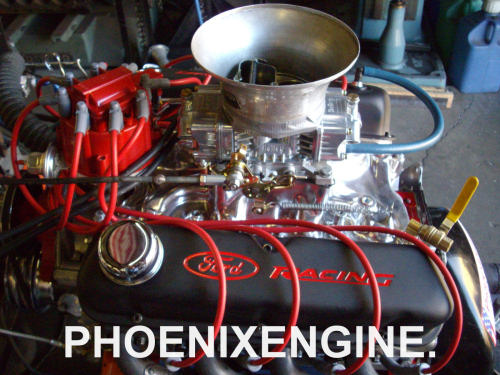

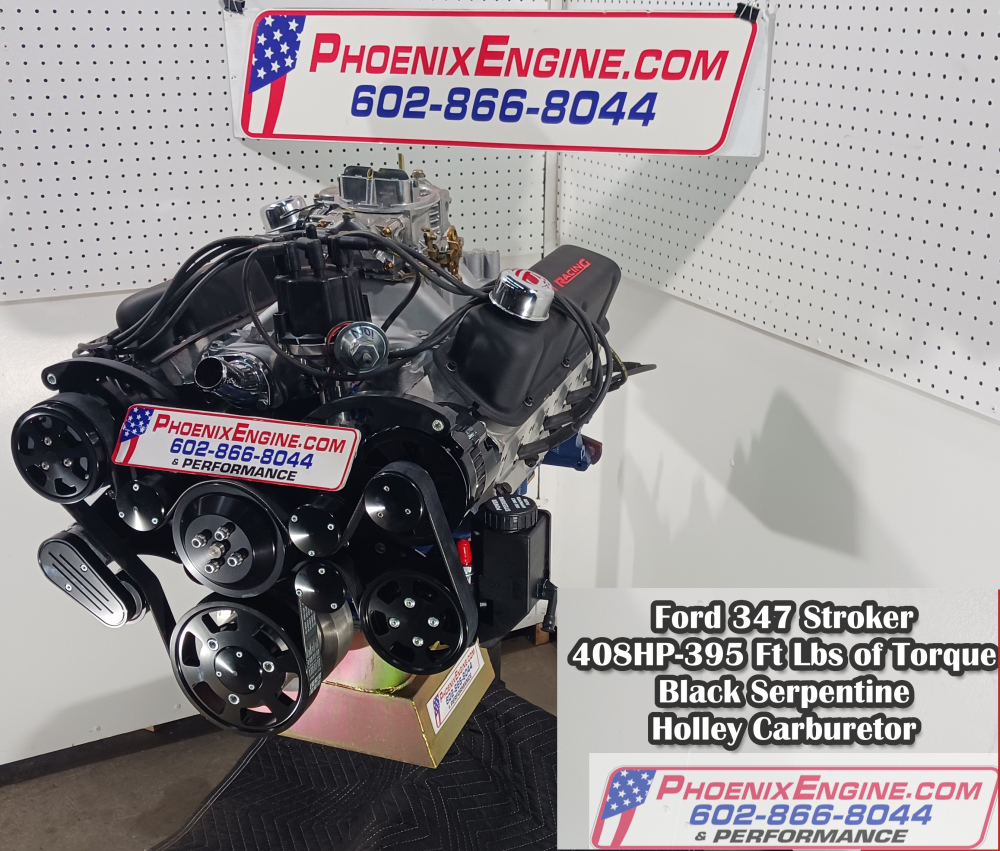

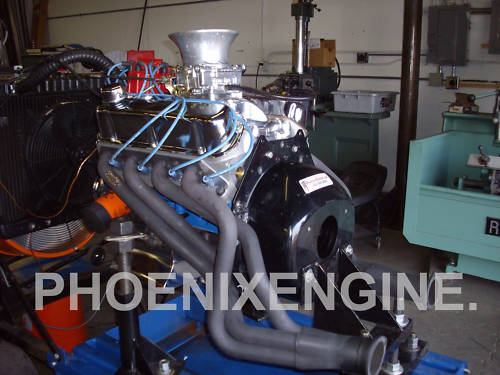

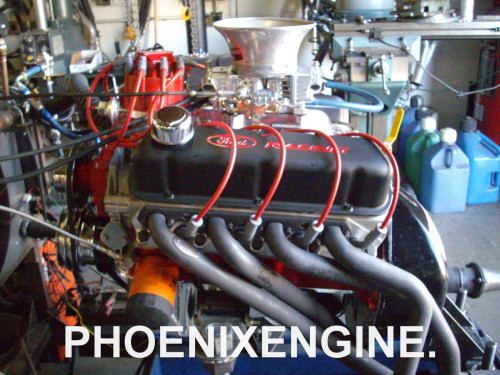

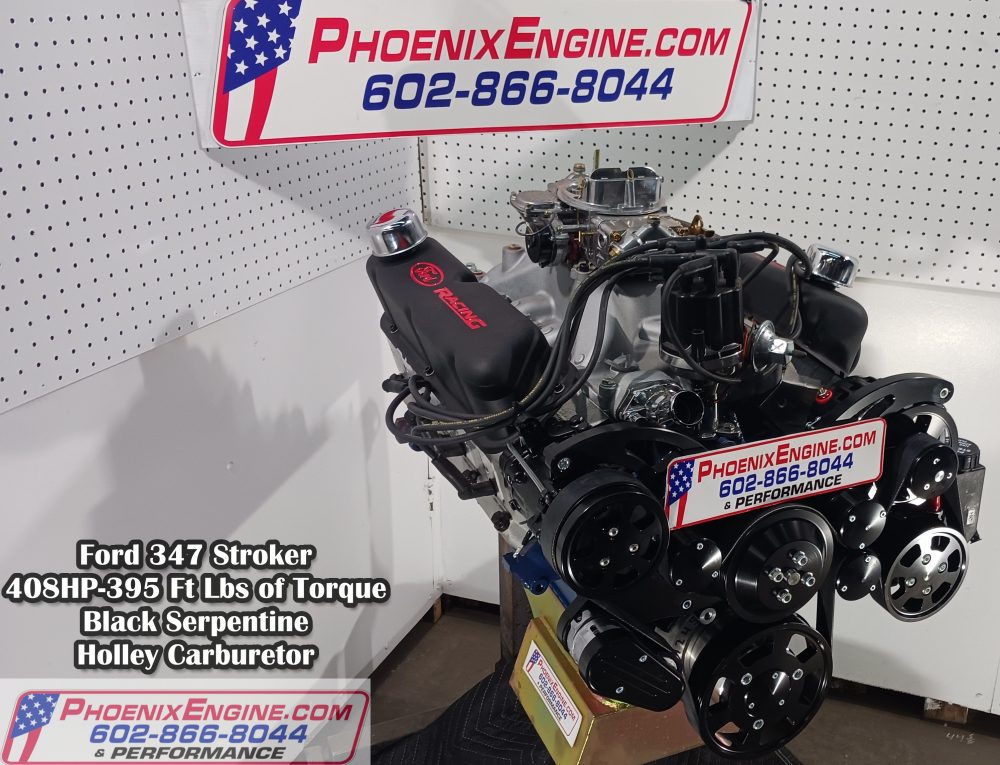

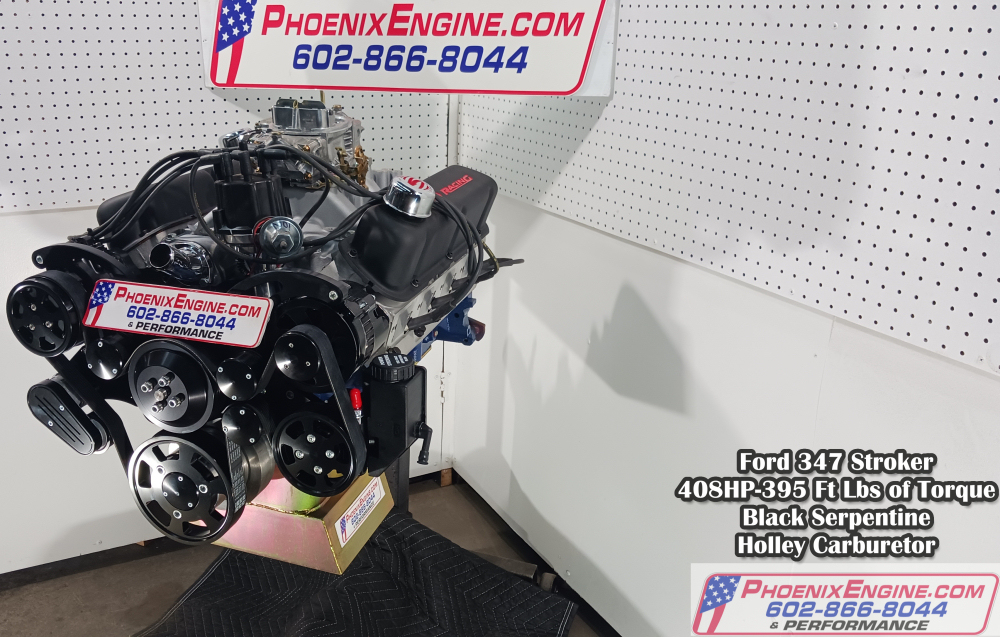

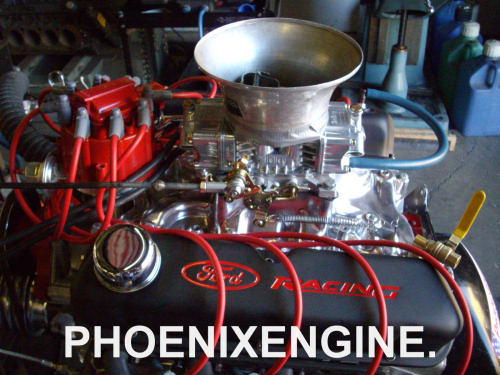

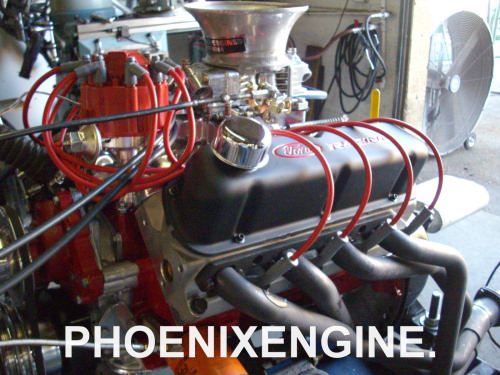

Click Photo to Enlarge

Click Photo to Enlarge

Click Photo to Enlarge

Click Photo to Enlarge

Click Photo to Enlarge

Click Photo to Enlarge

* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

Please note photos may vary from actual product as all our engines are custom built.
