FORD 302 — 300HP/322HP/340HP TURNKEY ENGINEs

fORD 351W — 280HP/300HP/325HP/
345HP/353HP/360HP TURNKEY ENGINEs

MIDNIGHT TURNKEY ENGINES for
FORD BRONCOS and 4X4 TRUCKS
SUCH AS

Ford F100

Ford F150

Ford F250

Early Fords: F1 F100 F150

FORD BRONCOS

THIS PAGE SHOWS OUR
1015 SERIES 4 X 4 FORD 302
and
351 WINDSOR 4 X 4 ENGINES!

Basic Pricing:

1015 SERIES 4 X 4 FORD 302:

Ford 302 — 300 HP: 340 ft lbs torque $4995
(Cam has lots of vacuum for power brakes! - CALL for your choice of two cams.)

Turnkey package with small diamater distributor, etc. $5495

Ford 302 — 322 HP: 350 ft lbs torque $5195
(Cam has a LOT of vacuum)
Turnkey package with small diamater distributor, etc. $5695

Ford 302 — 340 HP : 361- ft lbs torque $5395 (Less vacuum but still 4x4, a little more aggressive cam. Great sound for your Bronco or 4X4.)

Turnkey package with small diamater distributor, etc. $5895

Torque ranges will vary depending upon cam and application.

Click HERE to see more Bronco engines!






1015 SERIES 4 X 4  351 WINDSOR:

Ford 351W — 280HP: 341 ft lbs torque $4995
(Best vacuum, great low end and mid range and mileage.)

Ford 351W — 300HP: 361 ft lbs torque $ 5195
(Good vacuum, great low end and mid range with more torque)

Ford 351W — 325HP: 375 ft lbs torque $5395
(Great vacuum, great low end and mid range and mileage.)
This is one of the best for mid towing!

Ford 351W — 345HP 385 ft lbs torque $5595
(This one has good vacuum, great low end and mid range and mileage.)
This is one of the best for mid to heavy towing!

Ford 351W — 353HP 390-395 ft lbs torque $6295
Please note there are several cam choices that we recommend for this towing package, please call.
(Good vacuum, great low end and mid range.)
This one is the best for mid to heavy towing -- more torque!

Ford 351W — 360HP 400-410 ft lbs torque $6795
(Fair vacuum, good low end, mid range and top end.)
This one is best for mid-heavy towing and more torque.
This engine is designed more for the "toy" application.

This is a great Bronco toy engine, highly recommended by Bronco Clubs and 4 X 4 Clubs.

CHECK OUT OUR 347 STROKER ENGINES:

Ford 347 STROKER ENGINE 375HP: $6795 — 385 ft lbs torque
THIS IS OUR PERFORMANCE ELITE SERIES!

Ford 347 STROKER ENGINE 408HP: $6995 — 395 ft lbs torque
THIS IS OUR PERFORMANCE ELITE SERIES!

Ford 347 STROKER ENGINE 427HP: $7595 — 402 ft lbs torque
THIS IS OUR PERFORMANCE ELITE SERIES!

Call for availability.

Please note these 347 Stroker engines are Forged Piston Engine Turnkey packages.


LET'S GO ROLLER!
ASK ABOUT OUR ROLLER CAM UPGRADE PACKAGES!


NEW UPGRADES AVAILABLE:

  • HOLLEY SNIPER FUEL INJECTION SYSTEM
  • SERPENTINE PULLEY SYSTEM

CALL US FOR DETAILS!

Ask about our
Fast Track Startup:

That means this engine can be Real Ready to Run OUT OF THE BOX if you choose our Fast Track startup, which includes break in, super tuning, jetting, and more.
If you choose a Fast Track Start Up, we have special pricing right now!

Fast Track animation

Click HERE to learn more about FAST TRACK!

Fast Track animation



This Power2 and Power3 four by four engine engine combination is great for your Bronco or custom 4 X 4 Ford truck.

All our engines are custom HAND BUILT by professionals in our machine shop!

*Please note that the stock converter will work on most of these 4X4 engines, except for some of the more aggressive engines. Please call us for details.*

This Power2 and Power3 Engine Combinations are great for the everyday driver, in your Custom Truck, 4x4, JEEP or Ford Bronco.

Special features on these turnkey engines include these new parts and more:
(Be sure to scroll all the way down the page to see a more detailed listing.)

  • Howards or Comp Cam Kit (great old school sound!)
    (Ask about upgrading to a Roller Cam!)
  • SEAL POWER/Speed Pro heavy duty pistons
    (piston application can vary depending upon horsepower)
  • Compression pistons is 8.1 to 1.
    Higher HPs are 9.5 to 1 for pump gas.
  • Ford cast iron heads with hardened exhaust seats.
  • Also available as an upgrade are our recommended Aluminum Heads.
  • STEEL FORGED RODS 302 Ford Bronco rods (higher horsepower engines also include ARP bolt kit)
  • NODULAR CRANK Pro Turn micro polished
  • New Satin Aluminum intake manifold, plain (no name)
    OR new Edelbrock aluminum intake manifold for a little extra.
    Polished dual plane intake manifolds are extra.

  • NODULAR CRANK Pro Turn Micro Polished
  • Your choice of Edelbrock 600, 650 or 750 CFM electric choke
    or Holley 600 to 750 CFM electric choke.
    (some engines may require higher CFM carb)
  • Choice of 5 distributors:
    Pertronix Stage 1 is included in price;
    Pertronix Billet Stage 2 is extra;
    Pro Street HEI distributor is included;
    MSD 2 pack is extra;
    MSD 6AL 3 pack is extra.

  • Plugs, Plug wires. Call for colors!
  • PER Pro 7" High Performance Harmonic Balancer
  • Chrome valve covers included.
    Aluminum Bronco valve covers are extra.
  • New chrome air cleaner included. Custom air cleaners extra.
  • Water Pump included. (You must keep your own water pump and balancer pulleys.)
  • Bronco oil pans are available for an extra charge for your 4x4 or Bronco engine.
    (Custom oil pans are available for an extra charge.)
  • New Satin Aluminum intake manifold, plain (no name)
    OR new Edelbrock aluminum intake manifold for a little extra.
    Polished dual plane intake manifolds
    are extra.
  • New Aluminum Timing cover.
  • This engine will run on 89 or 91 Premium unleaded fuel.
  • New P.E.R. HP harmonic balancer
  • Call for info on flex plate or fly wheel.
  • Call for info on standard transmissions (4, 5, or 6 speed, etc.)
  • This engine is a seasoned block, hand picked for each engine application.
  • Built based on one of our Dyno tested and road proven packages.
  • Call for engine colors. (Standard enamel colors are no charge.)
  • Don't forget to call us for pricing on Fast Track Start up and Break-in!

5/16/24

What comes with your Power 2® or POWER 3® engine?

Here's a listing of the parts and machine labor for your Power 2® or Power 3® engine from PhoenixEngine.com.

Your Power 2® or Power 3®
ENGINE PARTS include:

  • Power 2® or 3® Comp or Howards Cam cam kit
  • Power 2® or 3® hydraulic lifters, Comp or Howards Cam or Seal Power
  • Power 2® or 3® Comp or Howards Cam or Trick Flow spring set, heavy duty
  • Satin aluminum intake manifold or Edelbrock
    (Polished or RPM dual plane intake manifold is extra.)
  • Heavy Duty Steel Stem intake valves
  • Heavy Duty Steel Stem exhaust valves
  • Premium positive valve seals, Viton or Melling Heavy Duty roller timing chain
  • Controlled internal oil system (a PER exclusive!)
  • Melling Heavy duty stock or high volume oil pump
  • Melling Heavy duty steel collar oil shaft
  • Melling oil pickup screen
  • High quality American Speed Pro or Seal Power Heavy Duty pistons
  • P.E.R.® Speed Pro plasma molly rings
  • Brass freeze plug kit and oil gallery kit
  • High quality rear main seal, double lip polyacrylate
  • Fel Pro PermaTorque heavy duty gaskets and gasket set
  • King or Clevite main bearings, Real Tri metal, high quality
  • King or Clevite rod bearings, Real Tri metal, high quality
  • New rod nuts installed
  • Cam bearings, high quality 360 Set

Your Power 2® or Power 3® Engine
MACHINE LABOR
includes:

  • P.E.R. 4-angle® valve job
  • Mill-matching surfaced iron heads
    (You can ask for an upgrade to new aluminum heads!)
  • Heavy duty thick wall valve guides
  • Valve guides custom cut for posi-seals
  • Jet vat block and magnifluxing
  • Blocks are furnace burned and shot abraided, for super clean outside and inside of water jackets
  • Remove and replace all freeze plugs
  • Remove and replace gallery plugs
  • Remove and replace cam bearings
  • Custom centerline boring of block
    True 90 degree V8 centerline boring
  • Power hone to fit pistons and rings
  • Custom crank micro polish, radius oil holes
  • Rods pressed off, then heat fitted
  • Rods checked for alignment
  • Street balancing and blueprinting

ALSO CALL ABOUT OUR NEW KEITH BLACK PISTON ENGINES!

SOME ASSEMBLY IS NEEDED.

YOU WILL NEED to call us - There are too many variables on each application.

For any changes needed, just call and we will build a custom engine package for you with the horsepower you want. You can also change the color, choosing from over 25 different colors.

All our engines are custom HAND BUILT by professionals in our machine shop!

Call to order this engine:
602-866-8044
Monday through Thursday: 8:30am - 5:00pm
Friday 08:30am - 4:00pm
Saturday: BY APPOINTMENT ONLY
Sunday: Closed
Times listed are Arizona time (-7 GMT).
Arizona does not observe Daylight Savings Time. We are on MST all year round.

DID YOU KNOW? At Phoenix Engine, every Power Engine® is CUSTOM rebuilt in our machine shop by P.E.R. professionals, from start to finish. The Power Engine® Performance Combination was developed from our over 50 years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, HOT RODS, CUSTOM MODS, JEEPS, and RESTORATIONS. Established in 1971, PhoenixEngine.com has built over 200,000 quality engines to date.

Warranty and Shipping Info:

This engine has a one year written warranty. Buyer pays actual shipping costs if unable to pick up engine from our shop in Phoenix AZ. Some state freight restrictions apply. Payment due in full prior to shipping. We accept Visa, Mastercard, Discover, American Express, money orders, cashier's checks, and direct deposit. (GET A DISCOUNT WITH A DIRECT DEPOSIT!) Business or personal checks must clear prior to shipping. Arizona residents must add 8.6% sales tax.
Please call for core requirements.
We accept Visa    We accept MasterCard    Discover credit card is accepted at Phoenix Engine  amex

Call PhoenixEngine.com today to order!
Telephone: 602-866-8044

Disclaimer: Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine. Pricing is deemed to be correct at time of but is not guaranteed. It is listed as a guideline only. Please call us for complete pricing on the engine built to your specific requirements.
These engines are built from our Dyno tested and road proven packages in our shop.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!

Please be sure to read our full Disclaimer: CLICK HERE.

07/27/2024

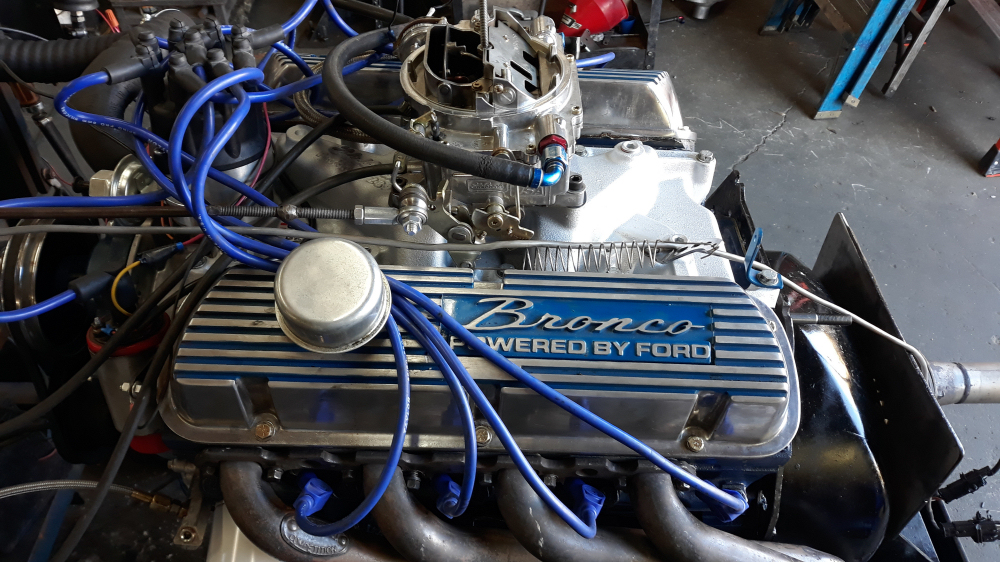

With Bronco valve cover

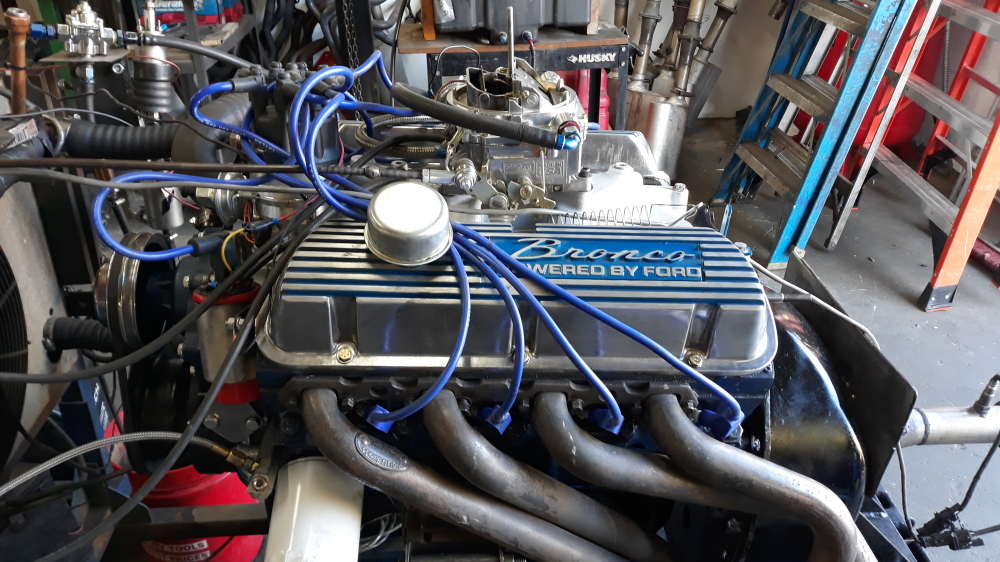

Bronco

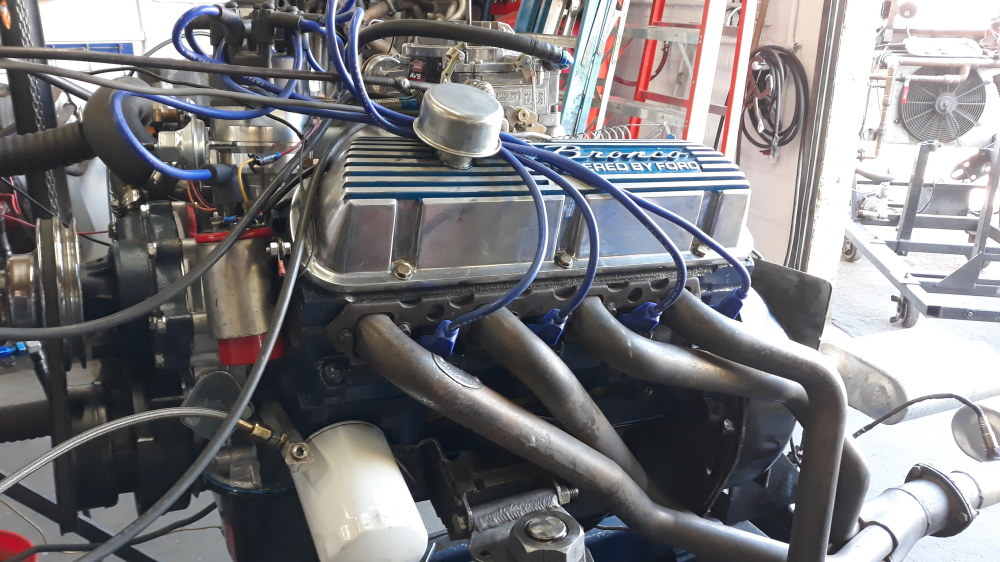

Bronco

Bronco

bronco

bronco

bronco

bronco

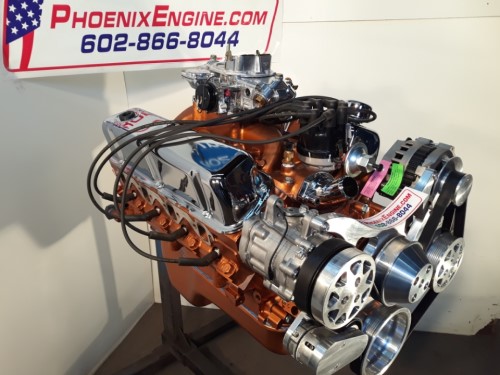

Ask for a serpentine pulley system upgrade!

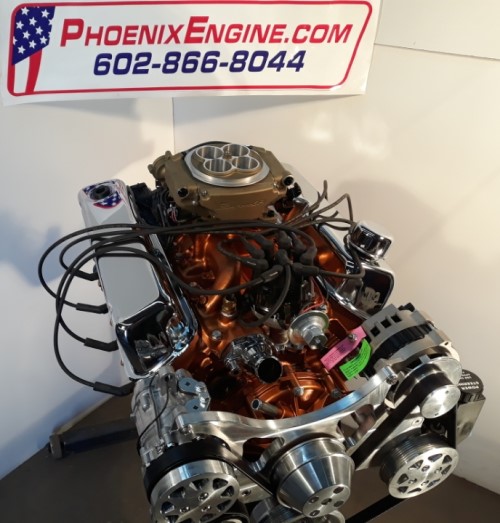

Holley Sniper and Serpentine systems

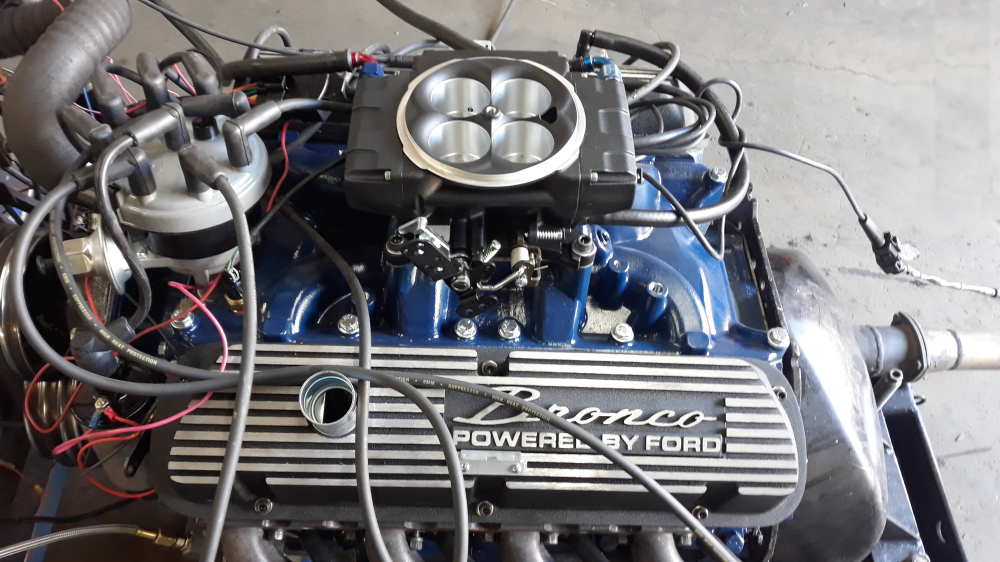

Holley Sniper

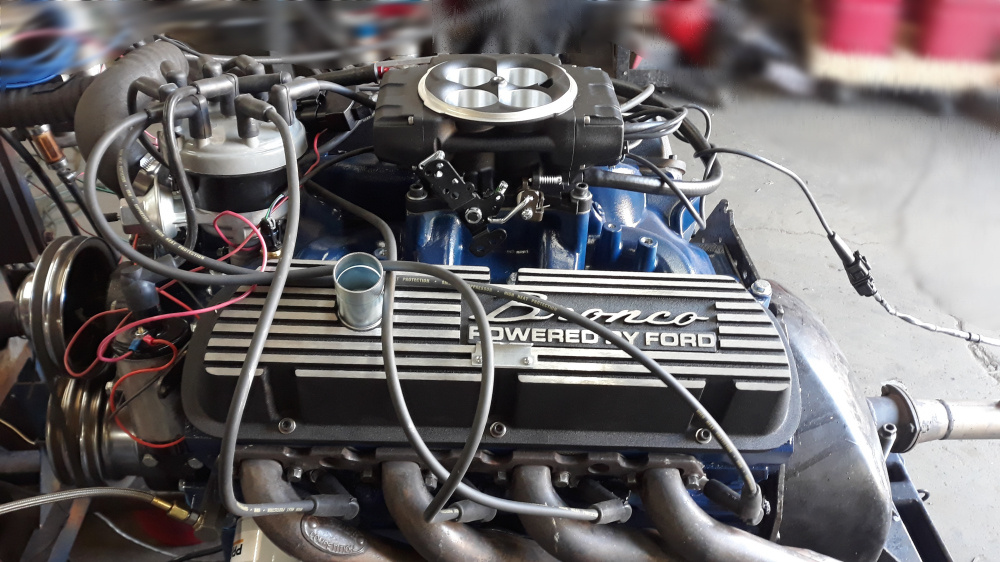

Ask about upgrading to a Holley Sniper fuel injection system!Holley Sniper

Ford

Ford

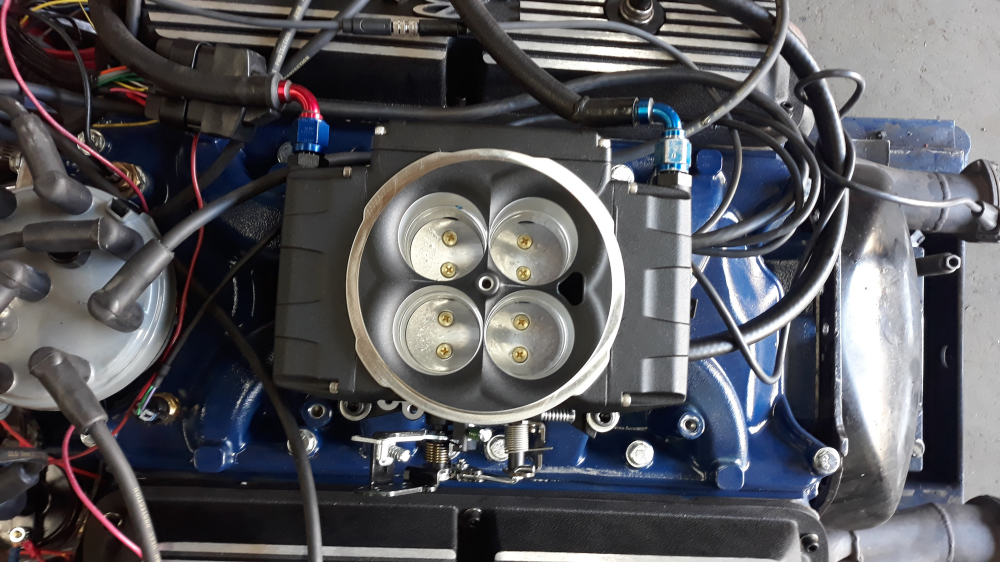

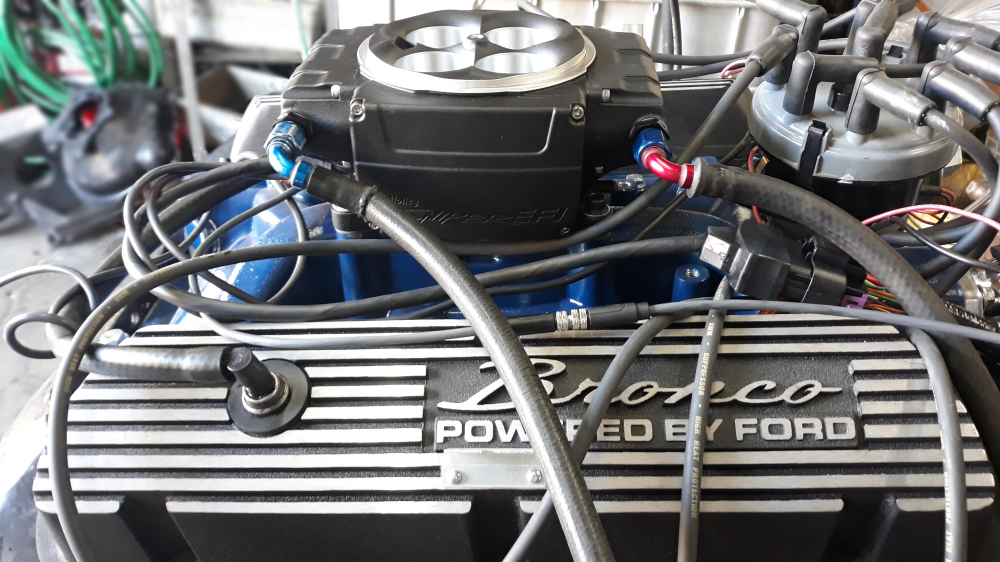

Ask about the advantages of an optional Holley Sniper Fuel Injection System! Holley equipped

* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

Please note photos may vary from actual product as all our engines are custom built.
