You are on the Ford-211 page



FORD BRONCO AND 4 x 4 ENGINES:

FORD 460 — 350 HP TURNKEY ENGINE
FORD 460 — 375 HP TURNKEY ENGINE
FORD 460 — 406 HP TURNKEY ENGINE
FORD 460 — 427 HP TURNKEY ENGINE
FORD 460 — 452 HP TURNKEY ENGINE
FORD 460 — 461 HP TURNKEY ENGINE

ALUMINUM HEAD FORD 460 — 465 HP TURNKEY ENGINE
ALUMINUM HEAD FORD 460 — 490 HP TURNKEY ENGINE
ALUMINUM HEAD FORD 460 — 505 HP TURNKEY ENGINE
ALUMINUM HEAD FORD 460 — 514 HP TURNKEY ENGINE
ALUMINUM HEAD FORD 460 — 535 HP TURNKEY ENGINE
ALUMINUM HEAD FORD 460 — 560 HP TURNKEY ENGINE


This turnkey engine is one of the best STREET engines around!



FORD 460ci TURNKEY Engine Pricing:

Ford 460ci 350 HP: from $5195 for a turnkey engine, depending upon parts used. Parts must be able to match HP application.
— 400 ft/lbs torque
(dual pattern cam)
(
This engine comes with a Pertronix distributor and coil. The MSD 2-pack or MSD 3-pack distributor and coil is extra.)

Ford 460ci 375 HP: from $5395 for a turnkey engine, depending upon parts used. Parts must be able to match HP application.
— 429 ft/lbs torque
(dual pattern cam)
(This engine comes with a Pertronix distributor and coil. The MSD 2-pack or MSD 3-pack distributor and coil is extra.)

Ford 460ci 406 HP: from $5895 for a turnkey engine, depending upon parts used. Parts must be able to match HP application.
— 440 ft/lbs torque
(dual pattern cam)
(This engine comes with the Pertronix distributor and coil. The MSD 2 or MSD 3-pack distributor and coil is extra.)

Ford 460ci 427 HP: from $6195 for a turnkey engine, depending upon parts used.
— 448 ft/lbs torque
(dual pattern cam)
(This engine comes with the Pertronix distributor and coil. The MSD 2 or MSD 3-pack distributor and coil is extra.)

Ford 460ci 452 HP: from $6495 as a turnkey engine, depending upon parts used. Parts must be able to match HP application.
— 460 ft/lbs torque
(dual pattern cam)
(This engine comes with a Pertronix distributor and coil. The MSD 2-pack or MSD 3-pack distributor and coil is extra.)

Ford 460ci 461 HP: from $6995 as a turnkey engine, depending upon parts used. Parts must be able to match HP application.
— 465 ft/lbs torque
(single pattern cam)
(This engine comes with a Pertronix distributor and coil. The MSD 2-pack or MSD 3-pack distributor and coil is extra.)

Ask about pricing for our Ford 429ci turnkey engines!!


CALL US ABOUT OUR 4x4 CUSTOM ENGINES (PRICING NOT LISTED HERE) - THEY ARE VERY POPULAR! IRON HEAD MOTORS OR ALUMINUM HEAD!!


Ford 460ci Aluminum Head TURNKEY engines:

Ford 460ci 465 HP: from $ 8495 — 475-485 ft/lbs torque
(single or dual pattern cam available)

Ford 460ci 490 HP: from $ 8995 — 490-500 ft/lbs torque
(single or dual pattern cam available)

Ford 460ci 505 HP: from $ 9395 — 505-515 ft/lbs torque
(single or dual pattern cam available)

Ford 460ci 514 HP: from $ 9895 — 521-530 ft/lbs torque
(single or dual pattern cam available)

Ford 460ci 535 HP: Call for pricing on this radical engine — 540 ft/lbs torque
(single or dual pattern cam available)

Ford 460ci 560 HP: Call for pricing on this radical engine — 565 ft/lbs torque
(single or dual pattern cam available)



(A "Crate Engine" means "Intake to Pan." NOTE: These engines are now sold only in turnkey packages, so they are termed "Turnkey Engines.")

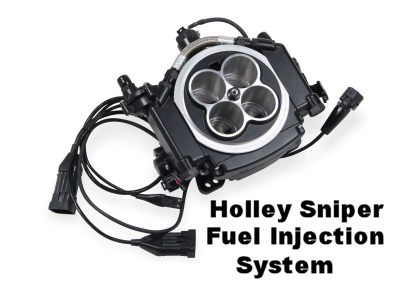

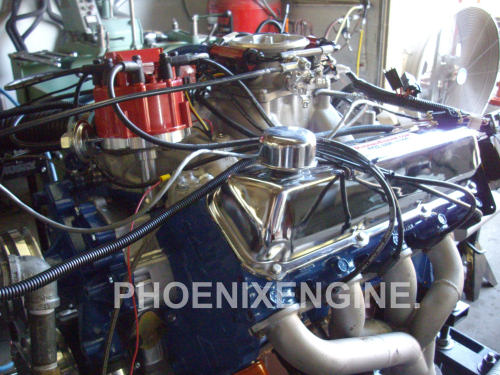

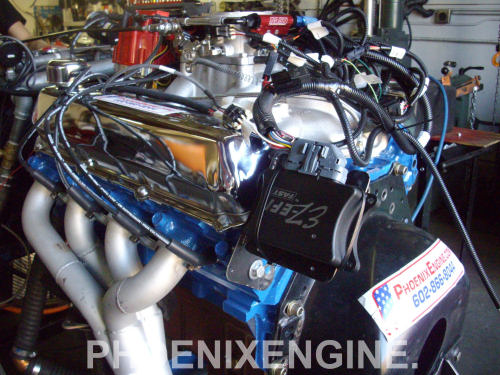

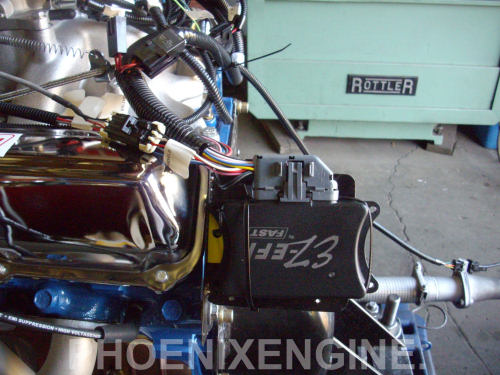

Please note that some of our photos >>
show the Fast Fuel 4 Barrel Injection System (complete self tuning kits) - Call us for more info on this package!


NOTICE: We can also build any of these packages for your 427 or 429 ci engine!

Ask about our
Fast Track Startup:

That means this engine can be Real Ready to Run OUT OF THE BOX if you choose our Fast Track startup, which includes break in, super tuning, jetting, and more.
If you choose a Fast Track Start Up, we have special pricing right now!

Fast Track animation

Click HERE to learn more about FAST TRACK and to see a video!

Fast Track animation

We are a Fast Fuel 4 Barrel Injection System Dealer. If you are interested in the 4 barrel fast fuel throttle body injection computer system, these are available on all of our carburated four barrel based intake manifolds. For the additional cost and sale pricing give us a call. Please look at photos #3, #4, #5, #6 and #7 to see the actual TBI on the engine.

This engine was built from one of our Dyno packages, which was Dyno tested on a real Super Flow. Remember, most sellers on the web do NOT test on a Dyno!!
Your specific engine can be Dyno tested for an additional charge.

This Power 4 engine combination would be a great replacement mild street for a BRONCO, 4x4, Mustang, Cougar, Fairlane, Gran Torino.

The engine has a fair to mid idle, a Comp Cam Kit cam that puts out 406 HP at 4400 rpm and 440+ ft lbs of torque.

You will need a speed stall converter. This is an excellent engine for every day driving!

Use this engine for your musclecar, street, hot rod, kit car, custom truck, 4X4 or Jeep. It has a GREAT OLD SCHOOL SOUND.

Call us for higher horsepower; we will custom hand build exactly the engine you need!

For Bronco, 4x4, JEEP
or Ford 4-wheel drive Trucks

Click Here for More Details

Special features on this turnkey engine include these new parts and more:
(Be sure to scroll down the page to see a more detailed listing.)

  • This engine is a Seasoned Block, hand picked.

  • SEAL POWER PISTONS 9.1 compression.

  • New Edelbrock RPM dual plane intake manifold.

  • Large 460 Beam forged rods, size 6.605, with ARP rod bolts.

  • NODULAR CRANK Pro Turn micro polished.

  • Heavy duty roller timing chain high performance, Melling.

  • Chrome valve covers, Aluminum timing cover.

  • New 5qt chrome or steel oil pan.
    6 and 7+ qt pans extra.

  • New P.E.R. high performance harmonic balancer.

  • Engine will run on premium unleaded fuel.

  • Built from one of our Dyno tested and road proven engine packages. Your specific engine can be Dyno tested for an additional charge.

  • Call for info on flex plate or fly wheel.

  • Call for correct flex plate on automatics.

  • Call for info on standard transmissions (4 or 5 speed, etc.)

  • Comes complete, intake to oil pan. Some assembly may be needed.

(Remember to scroll down to see more detailed listings of the Parts and Machine labor.)

Your Power 4 Engine®
ENGINE PARTS include:

  • Power 4® Comp cam kit: Hydraulic flat tappet 513 intake lift, 520+ exhaust valve lift.
  • Power 4® Comp Cam hydraulic flat tappet lifters
  • New Valves: 2.080 Intake valves, 1.650 exhaust valves
    GREAT Old School sound!
  • New hardened exhaust seats for use with leaded or unleaded fuel.
  • New 1.440 high performance springs set to match cam.
  • New spiral type valve guides for better oil retention.
  • New Premium Viton polyacrylate valve seals for high temperature.
  • Hardened push rods, rocker arm assembly.
  • Edelbrock Performer RPM Aluminum Intakes
  • Heavy duty roller timing chain, Melling
  • Controlled internal oil system (a PER exclusive!)
  • Heavy duty Melling high volume oil pump
  • Heavy duty steel collar oil shaft
  • Heavy duty oil pickup screen
  • High quality Seal Power pistons 9.1
  • P.E.R.® Seal Power high performance plasma molly rings
  • Brass freeze plug kit, gallery plug kit
  • High quality rear main seal double lip polyacrylate
  • Fel Pro PermaTorque heavy duty gaskets and gasket set
  • King or Clevite Main bearings, Real Tri metal, high quality
  • King or Clevite Rod bearings, Real Tri metal, high quality
  • New ARP Rod Bolts and nuts installed
  • Cam bearings, high quality 360 Set

Your Power 4 Engine®
MACHINE LABOR includes:

  • P.E.R.® 4-Angle valve job
  • Mill-matching surface heads to ensure positive sealing between block deck and head
  • Heavy duty thick wall valve guides
  • Valve guides custom cut for posi-seals
  • Jet vat block and magnifluxing
  • Remove and replace all freeze plugs
  • Remove and replace gallery plugs
  • Remove and replace cam bearings
  • Custom centerline boring of block
    True 90 degree V8 centerline boring
  • Power hone to fit pistons and rings
  • Custom crank Micro polish radius oil holes
  • Rods pressed off, then heat fitted
  • Rods checked for alignment ARP Rod Bolts Installed
  • Street balancing and blueprinting

-------------------------------

>>> FOR INFO ON MACHINE SHOP WORK, CLICK HERE <<<

Call PhoenixEngine.com today to order!
Toll Free: 1-888-766-8044

COMES COMPLETELY ASSEMBLED, INTAKE TO PAN.

For any changes needed, just call and we will build a custom engine package for you with the horsepower you want. You can also change the color, choosing from over 25 different colors.

All our engines are custom HAND BUILT including 289 - 302 - 351c - 351m - 351w - 400m - 390 - 427- 428 - 429 - 460 - 500 - 514 and more.

Call to order this engine:
Toll Free 1-888-766-8044
HOURS:
Monday - Friday 08:00am - 5:00pm
Saturday: BY APPOINTMENT ONLY
Times listed are Arizona time (-7 GMT).
Arizona does not observe Daylight Savings Time. We are on MST all year round.

This Power Engine® is totally REBUILT in our Machine Shop by professionals from start to finish. The Power Engine® Performance Combination was developed from our over 45 years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, and JEEPS. PhoenixEngine.com has built over 140,000 quality engines to date.

Warranty and Shipping Info:

This engine has a one year written warranty. Buyer pays actual shipping costs if unable to pick up engine from our shop in Phoenix AZ. Some state freight restrictions apply. Payment due in full prior to shipping. We accept Visa, Mastercard, Discover, American Express, money orders, cashier's checks, and direct deposit. (GET A DISCOUNT WITH A DIRECT DEPOSIT!) Business or personal checks must clear prior to shipping. Arizona residents must add 8.6% sales tax.
Please call for core requirements.
We accept Visa    We accept MasterCard    Discover credit card is accepted at Phoenix Engine  amex

SPECIAL PROMO!! Call NOW for FREE SHIPPING to Southern California! We also offer super shipping rates to all 48 continental states.

-------------------------------

Call PhoenixEngine.com today to order!
Toll Free: 1-888-766-8044

Disclaimer: Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine. Pricing is deemed to be correct at time of posting, but is not guaranteed. It is listed as a guideline only. Please call us for complete pricing on the engine built to your specific requirements.
These engines are built from our Dyno tested and road proven packages in our shop.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!

Please be sure to read our full Disclaimer: CLICK HERE.

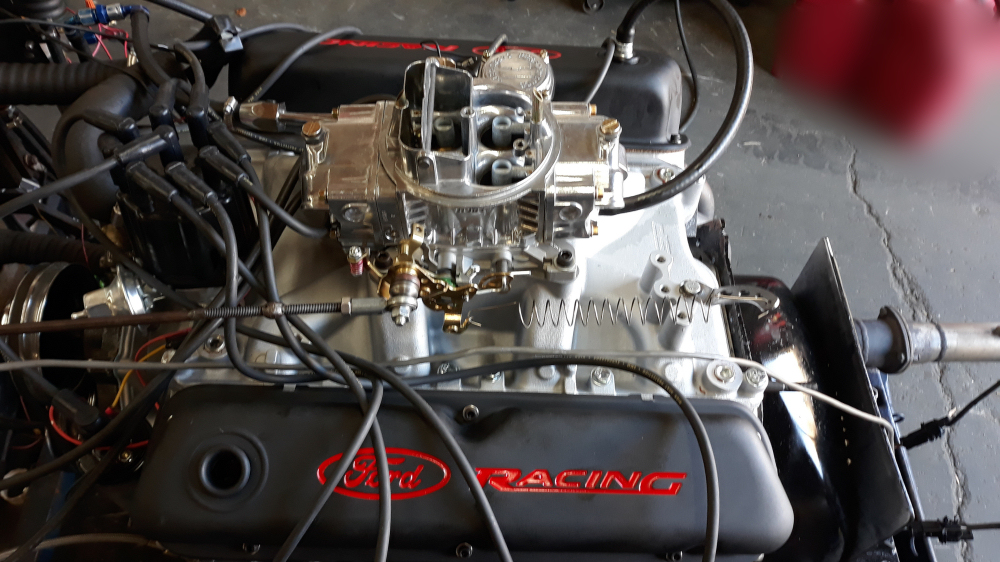

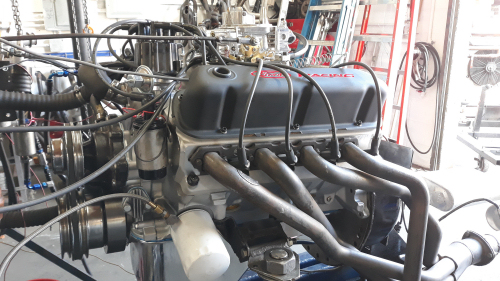

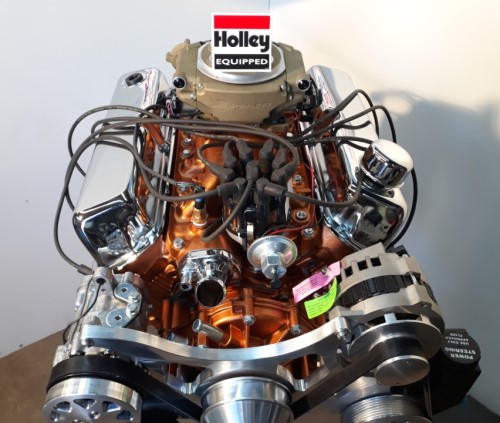

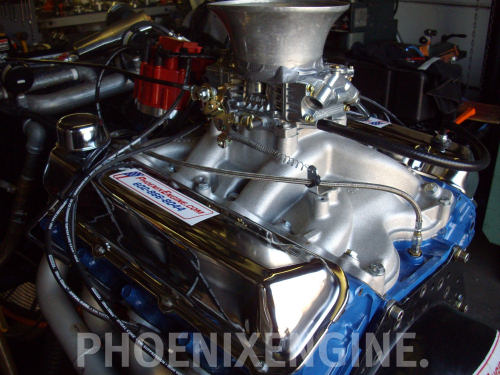

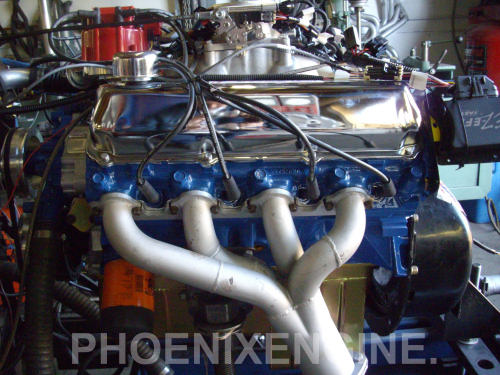

Ford 460 engine from PhoenixEngine.com

Ford 460 engine from PhoenixEngine.com

Ford 460 engine from PhoenixEngine.com

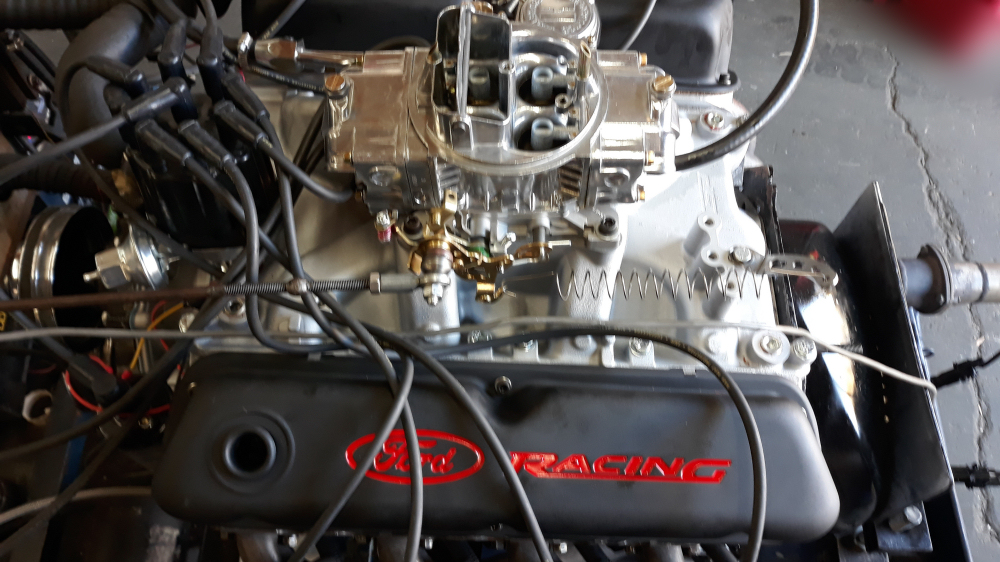

Ford 460 engine from PhoenixEngine.com

Ford 460 engine from PhoenixEngine.com

Ford 460 engine from PhoenixEngine.com

Ford 460 engine from PhoenixEngine.com

Ford 460 engine from PhoenixEngine.com

* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

Please note photos may vary from actual product as all our engines are custom built.
