Phoenix Engine  - Crate Engines for every need.

Call Toll Free: 1-888-766-8044

Return to Engine Catalog Index Page

Home Page


Crate Engine Catalog


You are on the Ford-09 page







Some of the best STREETS around!

Base Pricing and estimated torque specs:

Ford 390 — 330 HP: Base price from $5390 — 370 ft/lbs torque
(One of the best on mileage and torque!)

Ford 390 — 352 HP: Base price from $5690 — 390 ft/lbs torque
(Also one of the best on mileage and torque!)

Ford 390 — 370 HP: Base price from $6190 — 406 ft/lbs torque

Ford 390 — 410 HP: Base price from $6790 — 458 ft/lbs torque
(Most popular, great Old School sound!)

Ford 390 — 427 HP: Base price from $7190 — 475 ft/lbs torque

A "Crate Engine" means "Intake to Pan." These are all turnkey packages which means carburetor, air cleaner, distributor, plugs, plug wires, water pump, harmonic balancer are all included; as shown in the photos.
(Please note the photos show a velocity stack to give us correct air volume for both banks while the engine is being Fast Tracked, and broken in properly. This gives extreme accuracy with the air and fuel mixture computer for supertuning.)

Ask about our Fast Track Startup:
That means this engine can be
Real Ready to Run OUT OF THE BOX if you choose our Fast Track startup, which includes break in, super tuning, jetting, and more.

If you choose a Fast Track Start Up, we have special pricing right now!

Click HERE to learn more
Fast Track animationabout FAST TRACK, andFast Track animation
to view a sample video.


These engines are built from one of our Dyno packages, which were Dyno tested on a real Super Flow.
Your specific engine can be Dyno tested for an additional charge.

FiTech or Holley Sniper Fuel Injection and/or
Serpentine Systems are now available as optional upgrades!

This Power 3® engine combination would be a great replacement mild street for a Mustang, Cougar, Fairlane, Gran Torino.

The 410 HP engine (as featured in the photos to the right) has a mid to rough idle, and its Comp Cam Kit cam puts out 410 HP at 4400 rpm and 458 - 460 ft lbs of torque. You WILL need a speed stall converter.

The 370 HP engine has a Comp Cam Kit cam with a fair to mid idle, that at 4200 rpm gives 406 - 410 ft lbs of torque.
You will NOT need a speed stall converter. This is an excellent engine for every day driving!

Use one of these engines for your musclecar, street, hot rod, kit car, custom truck, 4X4 or Jeep. They have a GREAT OLD SCHOOL SOUND. Call us on a 4X4 package!!!

Call us for higher horsepower; we will custom hand build exactly the engine you need!


(Some items may vary depending upon the size HP engine you choose. Be sure to scroll down the page to see a more detailed listing.)

  • This engine is a Seasoned Block, hand picked.

  • SEAL POWER PISTONS 8.5, 8.9, 9.0, 9.1, 9.2, 9.4 compression.

  • New Edelbrock Performer dual plane intake manifold.

  • New Edelbrock RPM dual plane intake manifold for higher horsepower. (Please call.)

  • Edelbrock 600 CFM carburetor OR
    Edelbrock 650 CFM carburetor OR
    Edelbrock 750 CFM carburetor,
    depending upon HP and application.

  • Holley 600 CFM carburetor OR
    Holley 650 CFM carburetor OR
    Holley 750 CFM carburetor,
    depending upon HP and application.

  • This engine comes with the HEI distributor. Add the MSD 2 pack distributor or the MSD 3 pack distributor for an extra charge, depending upon the options you want.

  • Plug wires and spark plugs.

  • New chrome air cleaner included. Custom air cleaner extra.

  • Water pump, thermostat housing.

  • 390 pulleys are not available; will have to use your own.

  • New Harmonic balancer.

  • Large 390 Beam forged rods, size 6.488, with ARP rod bolts (on higher horsepower engines).

  • NODULAR CRANK Pro Turn micro polished.

  • Heavy duty roller timing chain high performance.

  • Chrome valve covers, Aluminum timing cover.

  • New 5qt oil pan. Ask us about Chrome pans or painted!
    (7 qt pans are extra.)

  • Flex plate for automatic will be extra.

  • Flywheel for 4, 5, or 6 speed transmissions is extra.

  • Chrome valve covers, or ask about painted covers!

  • Engine will run on premium unleaded fuel.

  • Built from one of our Dyno tested and road proven packages. Your specific engine can be Dyno tested for an additional charge.

  • Call for info on flex plate or fly wheel.

  • Call for correct flex plate on automatics.

  • Call for info on standard transmissions (4 or 5 speed, etc.)

  • Comes complete, intake to oil pan. Some assembly may be needed.

What comes with your Power 3® or Power 4® Engine?

Here's a listing of the parts and machine labor for your Power Engine® from

Your Power Engine®

  • Power® Comp Cam kit, depending upon horsepower.
    GREAT Old School sound!
  • Power® Comp hydraulic lifters kits
  • Power® spring set, heavy duty (980 series spring sets)
  • Edelbrock Performer RPM Aluminum Intakes
  • Heavy duty Stem steel intake valves
  • Heavy duty Stem steel exhaust valves
  • Premium positive valve seals, polyacrylate
  • Heavy duty roller timing chain
  • Controlled internal oil system (a PER exclusive!)
  • Heavy duty Melling high volume oil pump
  • Heavy duty steel collar oil shaft
  • Heavy duty oil pickup screen
  • High quality Seal Power pistons 9.1
  • P.E.R.® Seal Power high performance plasma molly rings
  • Brass freeze plug kit, gallery plug kit
  • High quality rear main seal double lip polyacrylate
  • Fel Pro PermaTorque heavy duty gaskets and gasket set
  • Clevite Main bearings, Real Tri metal, high quality
  • Clevite Rod bearings, Real Tri metal, high quality
  • New ARP rod bolts and nuts installed on higher horsepower engines
  • Cam bearings, high quality 360 Set

Your Power Engine®

  • P.E.R.® 4-Angle valve job
  • Mill-matching surface heads
  • Heavy duty thick wall valve guides
  • Valve guides custom cut for posi-seals
  • Jet vat block and magnifluxing
  • Remove and replace all freeze plugs
  • Remove and replace gallery plugs
  • Remove and replace cam bearings
  • Custom centerline boring of block
    True 90 degree V8 centerline boring
  • Power hone to fit pistons and rings
  • Custom crank Micro polish radius oil holes
  • Rods pressed off, then heat fitted
  • Rods checked for alignment ARP Rod Bolts Installed on higher HP engines
  • Street balancing




All our engines are custom HAND BUILT including 289 - 302 - 351c - 351m - 351w - 400m - 390 - 427- 428 - 429 - 460 - 500 - 514 and more.

We also do Ford 352 custom builds!
360, 390, 406, 427, 428...

For any changes needed, just call and we will build a custom engine package for you with the horsepower you want. You can also change the color, choosing from over 25 different colors.

Call to order this engine:
Toll Free 1-888-766-8044
08:00am - 5:00pm Monday - Friday
09:00am - 1:00pm Saturday
Times listed are Arizona time (-7 GMT).
Arizona does not observe Daylight Savings Time. We are on MST all year round.

These Power Engines® are totally REBUILT in our Machine Shop by professionals from start to finish. The Power Engine® Performance Combination was developed from our over 45 years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, and JEEPS. has built over 140,000 quality engines to date.

Warranty and Shipping Info:

This engine has a one year written warranty. Buyer pays actual shipping costs if unable to pick up engine from our shop in Phoenix AZ. Some state freight restrictions apply. Payment due in full prior to shipping. We accept Visa, Mastercard, Discover, money orders, cashier's checks, and direct deposit. (GET A DISCOUNT WITH A DIRECT DEPOSIT!) Business or personal checks must clear prior to shipping. Arizona residents must add 8.6% sales tax.
Please call for core requirements.
We accept Visa    We accept MasterCard    Discover credit card is accepted at Phoenix Engine
SPECIAL PROMO!! Call NOW for FREE SHIPPING to Southern California! We also offer super shipping rates to all 48 continental states.


Call today to order!
Toll Free: 1-888-766-8044

Disclaimer: Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine. Pricing is deemed to be correct at time of posting, but is not guaranteed. It is listed as a guideline only. Please call us for complete pricing on the engine built to your specific requirements.
These engines are built from our Dyno tested and road proven packages in our shop.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!

Please be sure to read our full Disclaimer: CLICK HERE.

5/7/18 txt
10/8/18 del pix, add pix, txt
1/21/19 grynav
1/23/19 txt cams,lifters,mollyrings
3/27/19 pc
4/26/19 txt
5/2/19 txt
8/23/19 txt

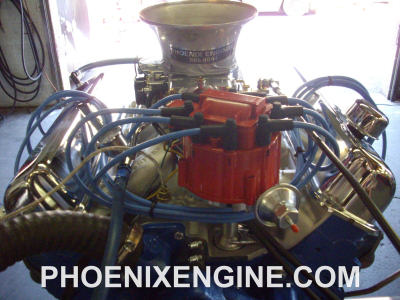

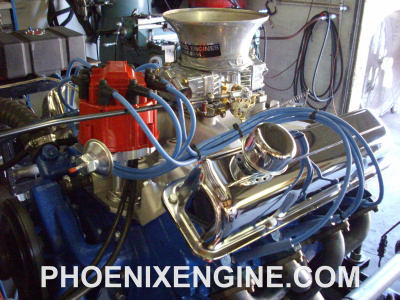

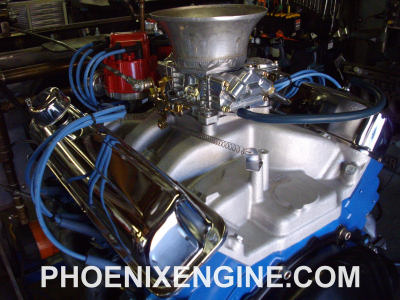

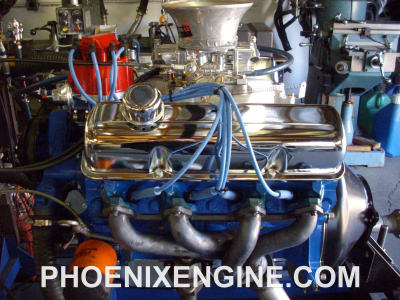

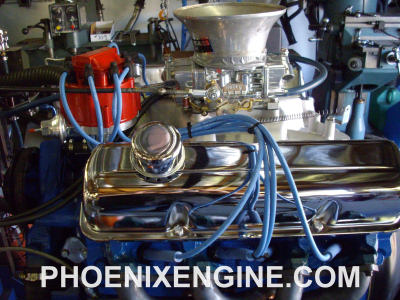

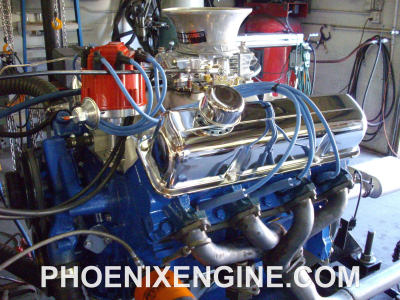

Here are some photos showing this engine in a TURNKEY PACKAGE. (Scroll down for photos of it as a crate engine).







Ford 390 in a Turnkey Package

Ford 390 in a Turnkey Package

Ford 390 in a Turnkey Package

Ford 390 in a Turnkey Package

Ford 390 in a Turnkey Package

Ford 390 in a Turnkey Package

Ford 390 in a Turnkey Package

Ford 390 in a Turnkey Package

Ford 390 in a Turnkey Package

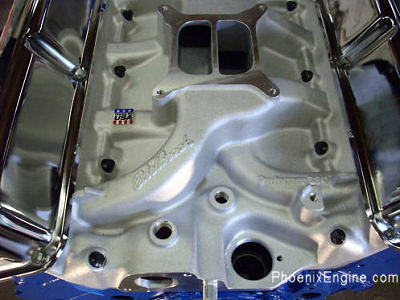

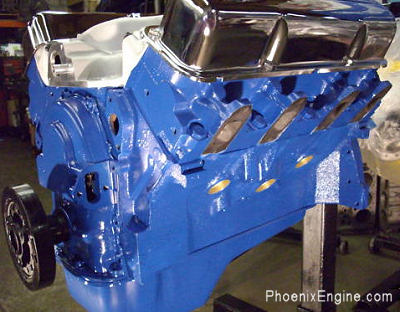

Following are photos of this engine
as a crate engine: Ford 390 - 370 HP crate engine from



* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

Please note photos may vary from actual product as all our engines are custom built.
