CHEVY 350CI 270/290/314/334/354HP 2 or 4 BOLT Midnight Blue TURNKEY ENGINEs

CHEVY 383ci 360 HP or 375HP 2 or 4 BOLT Midnight Blue High Performance TURNKEY ENGINES

PICKUP TRUCK ENGINE, or
GMC, 4 x 4, JEEP, or BLAZER
TURNKEY ENGINE

Five choices of powerful engine levels in this "1014 Series"!!

Please note that our 4x4 engines have a broader power band. Low end, mid-range, and top end for pulling.

Check out the first photo! Turnkey packages include carburetor, HEI distributor, plugs and plug wires and more - scroll down for details >>>>>>

PRICING GUIDELINES:

TurnKey Engine Pricing for 2 Bolt Main
for heavy duty applications:

LEVEL 1: 2 BOLT 350ci 270 HP or 290 HP turnkey = $3890

LEVEL 2: 2 BOLT 350ci 314 HP or 334 HP turnkey = $4090

LEVEL 3: 2 BOLT 350ci 344 HP or 354 HP turnkey = $4390

LEVEL 4: 2 BOLT 383ci 360 HP turnkey=$4890

LEVEL 5: 2 BOLT 383ci 375 HP turnkey = $5090






TurnKey Engine Pricing for 4 Bolt Main
for heavy duty applications:


Please note that our 4x4 engines have a broader power band. Low end, mid-range, and top end for pulling.

LEVEL 1: 4 BOLT 350ci 270, 290 HP turnkey = $4190 (torque spec up to 362)

LEVEL 2: 4 BOLT 350ci 314 HP or 334 HP turnkey = $4590 (torque spec up to 384)

LEVEL 3: 4 BOLT 350ci 344 HP or 354 HP turnkey = $4890 (torque spec up to 404)

LEVEL 4: 4 BOLT 383ci 360 HP turnkey=$5090
425 to 435 ft lbs torque
This engine has a dual patterned cam for great torque, low end, mid range, and top end. Plenty of vacuum for brakes.

LEVEL 5: 4 BOLT 383ci 375 HP turnkey = $5195
435 to 450 ft lbs torque.
This engine has a dual patterned cam for great torque, low end, mid range, and top end. Plenty of vacuum for brakes.

Torque ranges vary according to choice of cams. If you need a bigger engine for your 4 wheeler, please give us a call.

Built from our Dyno tested packages:
Dyno tested 334 HP 378 ft/lbs torque
Dyno tested on a real SuperFlow Dyno

*** This is our new 1014 Truck ***
*** and 4 x 4 engine ***
Good Low and Mid Range Torque.
These engines are a must for a 4x4
because they have good engine vacuum
for low end torque and power brakes,
and the vacuum helps with mileage too!

THIS IS A LIMITED TIME SALE PRICING
The normal price of these engines is $100 more. Buy now to receive the special pricing above!

Ask about our Fast Track Startup:
That means this engine can be
Real Ready to Run OUT OF THE BOX if you choose our Fast Track startup, which includes break in, super tuning, jetting, and more.

If you choose a Fast Track Start Up, we have special pricing right now!

Fast Track animation

Click HERE to learn more about FAST TRACK!

Fast Track animation

SPECIAL SALE UPGRADES:
1. AUTOMATIC UPGRADE included for '86 to '95 first generation swirl vortec heads for low and mid range torque (see photos). The great news is these first generation Swirl Vortec heads will also accommodate all your serpentine drive belt assemblies!

2. Optional $495 Upgrade: Ask for '96 to 2002 second generation vortec heads upgrade (heart shaped chamber) for low, mid range, and high end torque. The second generation Vortec heads also accommodate serpentine drive belt assemblies!

Note that on both the first and second generation Vortec heads, the valve cover bolts are down the center of the valve cover, unlike the Old School heads.

3. Upgrade for Old School look with valve cover bolts on the outside is optional, depending upon availability. (Like the old 327 and early 350 performance heads such as the nostalgic Fuelie Double Hump Fuel Injected Heads.)

For quotes on higher horsepower engines, please give us a phone call. We can customize an engine to perfectly fit your needs!

Good street, truck, 4 x 4, Jeep, GMC, or Blazer engine!
Custom 4 x 4 too!
Super good pulling power!
Mild street and off road, good pulling power!
Ask about our many 1014 tow package engines

This Power 2* Engine Combination is a great replacement Mild Street and Off Road. This engine has a strong low end torque - food mid-range and mileage. Good to fair idle for trucks and 4 x 4s.

Comp or Howards Cam Kit puts out 334 hp from 700-800 rpm to 4600-4800 rpm, with a strong 384 ft lbs of torque.
Correct carburetor for this engine is 600 cfm, 670 cfm or 700 cfm.

Lower HPs: Comp or Howards Cam Kit CAM puts out from 270 to 300 hp off idle at 600 to 700 rpm to 4200 to 4400 rmp and 346 ft lbs of torque.

Correct carburetor for this engine is 600 cfm, 650 cfm or 670 cfm.

You will NOT NEED a stall speed converter!

This Engine is a 4-bolt Seasoned Heavy Duty Chevy Small Block. Engine will run on unleaded fuel.

This is an excellent engine for your custom truck, 4 X 4, or Jeep, etc!




Special features on this turnkey engine include these new parts and more:
(Be sure to scroll down the page to see a more detailed listing.)

  • Edelbrock carburetor or Holley carburetor
    (Please call on 4x4 carburetors)
  • Chrome air cleaner
  • ProBillet HEI distributor
    (MSD distributor 2-pack or 3-pack is extra)
  • Spark plug wires and and spark plugs
  • Water pump included
  • First Generation Swirl Vortec Heads
  • Seal Power Hypereutectic Pistons
  • Steel forged rods, nodular crank
  • Chrome valve covers, timing cover
    5 qt oil pan (7 qt extra)
  • Aluminum intake manifold (which can be painted any color you want). Polished is extra.
  • Pro 8" harmonic balancer, flex plate

COMES COMPLETELY ASSEMBLED, INTAKE TO OIL PAN!



What comes with your Power 2® engine?

Here's a listing of the parts and machine labor for your Power 2® engine from PhoenixEngine.com.

YOUR POWER 2®
ENGINE PARTS include:

  • Power 2 Comp or Howards Cam Kit (call for custom cam applications)
  • Power 2 Comp hydraulic lifters
  • Power 2 spring set, heavy duty (900 series spring sets)
  • Power Plus High Rise dual plane intake manifold
    or Power Plus Aluminum High Rise dual plane intake manifold.
    Polished is extra.
  • Heavy Duty Steel Stem intake valves (1.94)
  • Heavy Duty Steel Stem exhaust valves (1.5)
  • Premium positive valve seals, polyacrylate
  • Heavy Duty roller timing chain
  • Controlled internal oil system (a PER exclusive!)
  • Heavy duty, high volume Melling oil pump
  • Heavy duty steel collar oil shaft, Melling
  • Heavy duty oil pickup screen
  • High quality Speed Pro/SL hypereutectic pistons
  • P.E.R.® Speed Pro plasma molly rings
  • Brass freeze plug kit and oil gallery kit
  • High quality rear main seal, double lip polyacrylate
  • Fel Pro PermaTorque heavy duty gaskets and gasket set
  • King or Clevite main bearings, Real Tri metal, high quality
  • King or Clevite rod bearings, Real Tri metal, high quality
  • New rod nuts installed
  • Cam bearings, high quality 360 Set
  • Built from one of our Dyno tested and road proven Dyno packages.
  • Call for info on flex plate or fly wheel.
  • Call for correct flex plate on automatics.
  • Call for info on standard transmissions (4 or 5 speed, etc.)
  • Comes complete, intake to oil pan. Some assembly may be needed.

POWER 2® ENGINE
MACHINE LABOR includes:

  • P.E.R. 3-angle® valve job
  • Mill-matching surfaced heads
  • Heavy duty thick wall valve guides
  • Valve guides custom cut for posi-seals
  • Jet vat block and magnifluxing
  • Remove and replace all freeze plugs
  • Remove and replace gallery plugs
  • Remove and replace cam bearings
  • Custom centerline boring of block
    True 90 degree V8 centerline boring
  • Power hone to fit pistons and rings
  • Custom crank micro polish, radius oil holes
  • Rods pressed off, then heat fitted
  • Rods checked for alignment
  • Street balancing and blueprinting



>>> FOR MACHINE SHOP WORK, CLICK HERE <<<



Call PhoenixEngine.com today to order!
602-866-8044

NOTES:
FOR ANY CHANGES NEEDED, JUST CALL AND WE WILL BUILD A CUSTOM ENGINE PACKAGE FOR YOU FROM 270 HORSEPOWER TO 400 HORSEPOWER FOR YOUR 4x4 NEEDS.
YOU CAN ALSO CHANGE THE COLOR, CHOOSING FROM OVER 25 DIFFERENT COLORS.

ALL OUR ENGINES ARE CUSTOM HAND BUILT:
327 - 350 - 383 - 396 - 427 - 454

Call to order this engine:
602-866-8044
Monday through Thursday: 8:30am - 5:00pm
Friday 08:30am - 4:00pm
Saturday: BY APPOINTMENT ONLY
Sunday: Closed
Times listed are Arizona time (-7 GMT).
Arizona does not observe Daylight Savings Time. We are on MST all year round.

This Power 2® Engine is Totally REBUILT in our Machine Shop by Professionals from start to finish. The Power 2® Engine Performance Combination was developed from our over 50 years of experience on MUSCLECARS, STREET STRIPS, CUSTOM TRUCKS, 4x4s, and JEEPS. Established in 1971, PhoenixEngine.com has built over 200,000 quality engines to date.

Warranty and Shipping Info:

This engine has a one year written warranty. Buyer pays actual shipping costs if unable to pick up engine from our shop in Phoenix AZ. Some state freight restrictions apply. Payment due in full prior to shipping. We accept Visa, Mastercard, Discover, American Express, money orders, cashier's checks, and direct deposit. (GET A DISCOUNT WITH A DIRECT DEPOSIT!) Business or personal checks must clear prior to shipping. Arizona residents must add 8.6% sales tax.
Please call for core requirements.
We accept Visa    We accept MasterCard    Discover credit card is accepted at Phoenix Engine  amex



SPECIAL PROMO!! Call NOW for possible FREE SHIPPING to the Southern California LA dock! We also offer super shipping rates to all 48 continental states. Call for rates to Hawaii, Alaska, or international destinations!



Disclaimer: Please note that some parts are based on availability. The brand names listed above are guidelines; the exact brand name may not be available at the time we build your engine. Pricing is deemed to be correct at time of posting, but is not guaranteed. It is listed as a guideline only. Please call us for complete pricing on the engine built to your specific requirements.
These engines are built from our Dyno tested packages in our shop and road proven.
Your specific engine can be Dyno tested individually for an additional cost.
Also ask about Fast Track engine testing for your engine, which is cheaper than Dyno testing!

Please be sure to read our full Disclaimer: CLICK HERE.

3/11/24 13:14

3/2/23 3/11/24

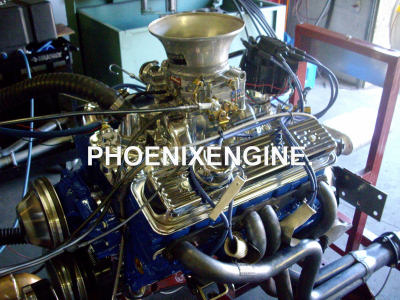

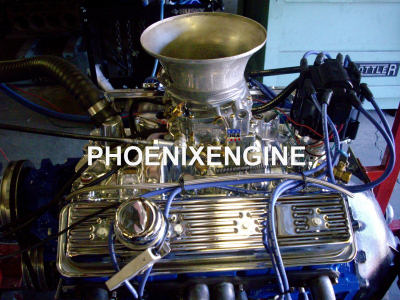

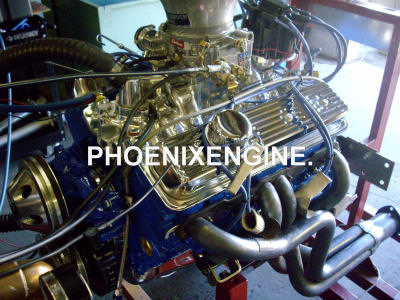

These are photos of this engine in a TURNKEY PACKAGE, including a 14" chrome air cleaner:
(Call us to get this package!)

PLEASE ALSO NOTICE:

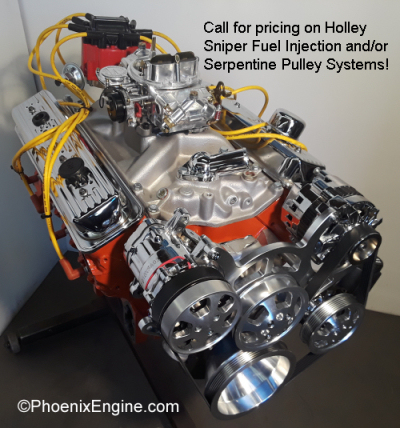

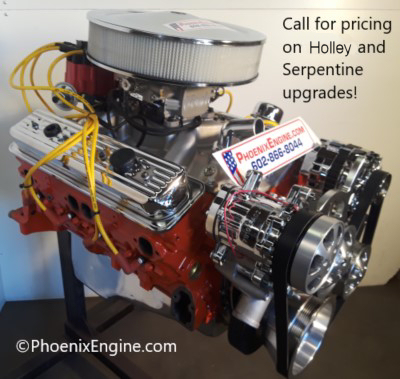

Some of the photos below show an example engine with Holley Sniper fuel injection and Serpentine systems. These systems are on SALE now! Call us for the best pricing on these upgrades!
Chevy350 Turnkey Package

FiTech system

Dyno

Chevy350 Turnkey Package

Serpentine system

Chevy350 Turnkey Package

Chevy350 Turnkey Package

stroker black 383

WE NOW OFFER BOTH HOLLEY SNIPER AND SERPENTINE SYSTEM UPGRADES FOR YOUR ENGINE. BOTH SYSTEMS ARE ON SALE NOW - CALL US FOR THE BEST PRICING ON THESE UPGRADES!

* Note: When we custom build your engine, you can choose from over 25 different colors or you can supply the paint to have your engine painted the same color as your car's finish!

Please note photos may vary from actual product as all our engines are custom built.
